Digitus Digitus Wall Mounting Cabinet Unique Series - 600x450 mm (WxD)
Digitus Wall Mounting Cabinet Unique Series - 600x450 mm (WxD), Wall mounted rack, 9U, 100 kg, 22.5 kg, Grey
DN-1909-U
4016032135210
€219.90
VAT included
Description

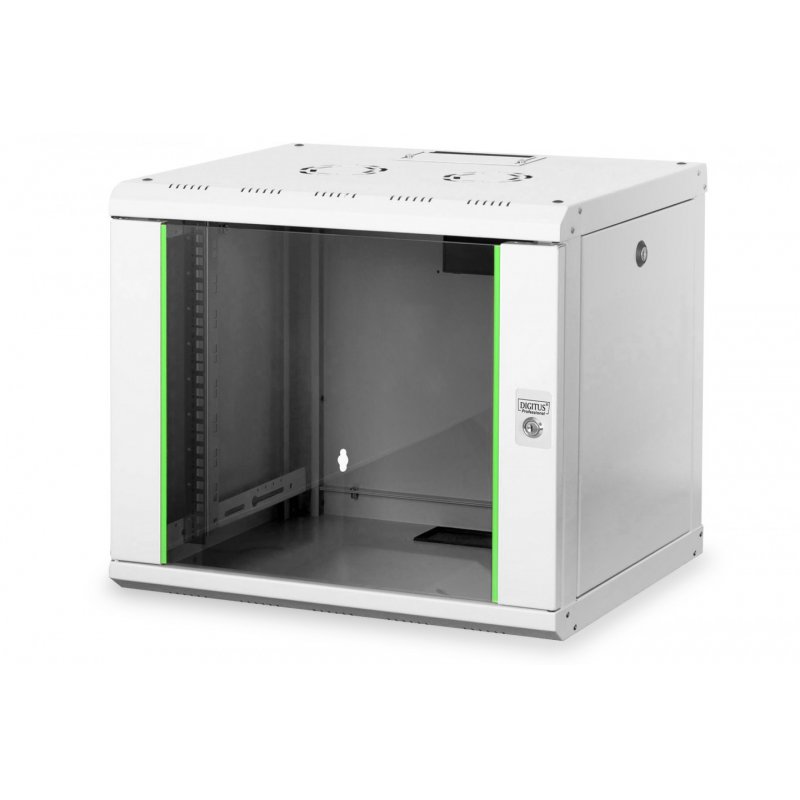

Digitus Wall Mounting Cabinet Unique Series - 600x450 mm (WxD). Type: Wall mounted rack, Rack capacity: 9U, Maximum weight capacity: 100 kg, International Protection (IP) code: IP20. Weight: 22.5 kg. Product colour: Grey
- Safety class rating IP20

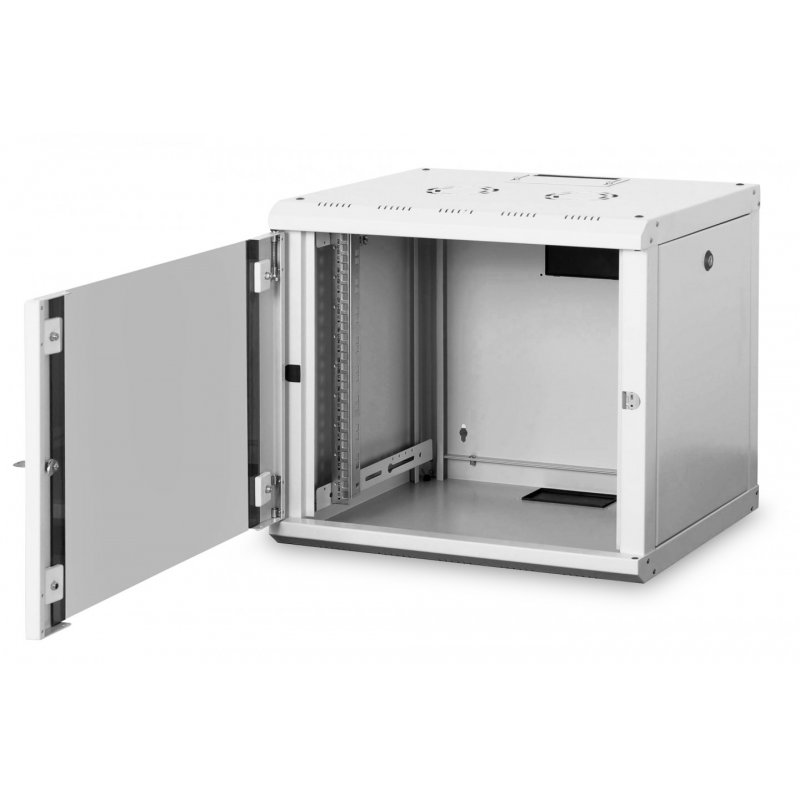

- Lockable safety-glass door with steel frame
- 210° door opening angle
- 1-point-locking-mechanism on the front door
- Side panels are lockable and removable
- 483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- Max. installation depth: 370 mm
- Cable entry on the rear side and base with plastic cover and top with sliding cover
- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting
- Several earthing points for rack components
- Incl. installation set (screws, cage nuts, washers)
- Rack is completely mounted
- Equipment mounting depth min.-max.: 305-370 mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Weight
Specific References
- ean13
- 4016032135210
