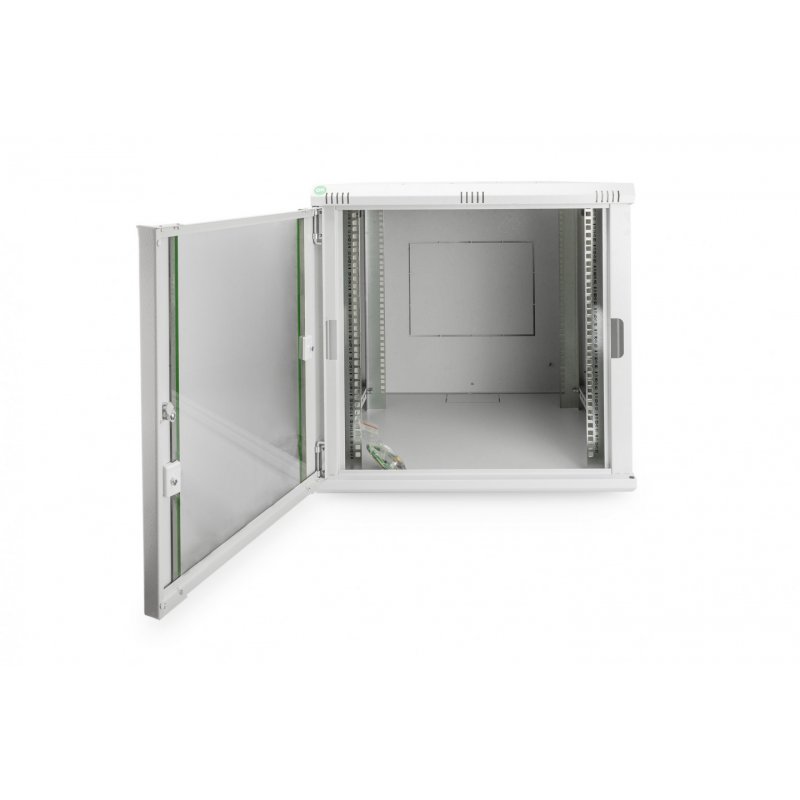

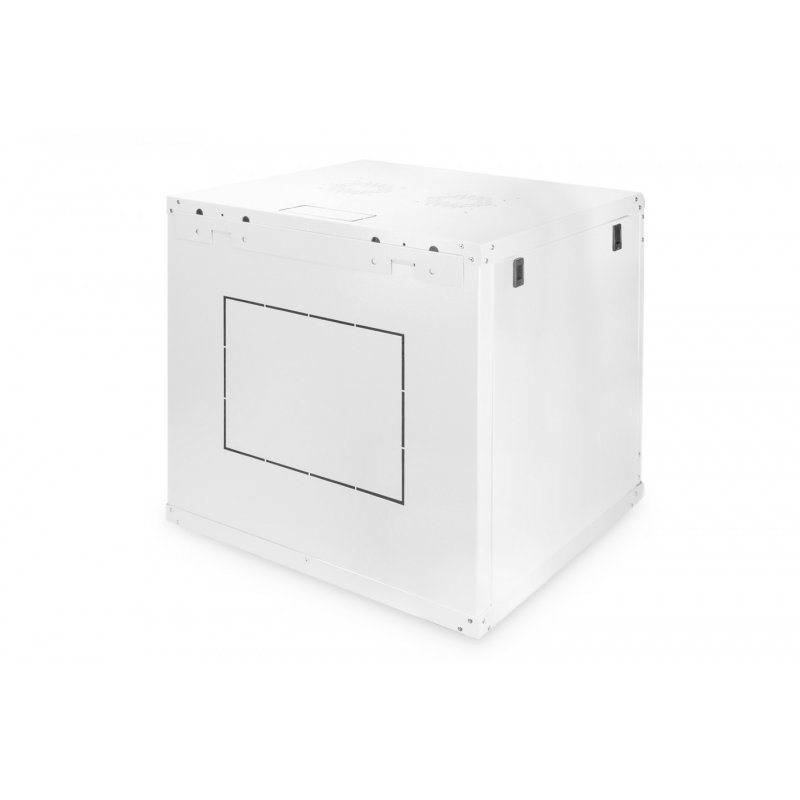

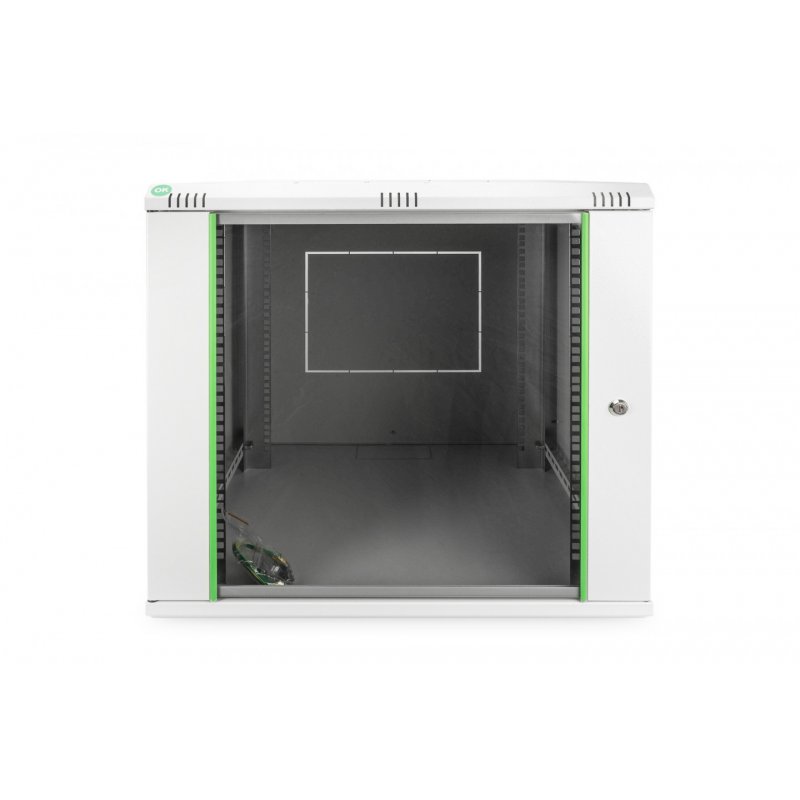

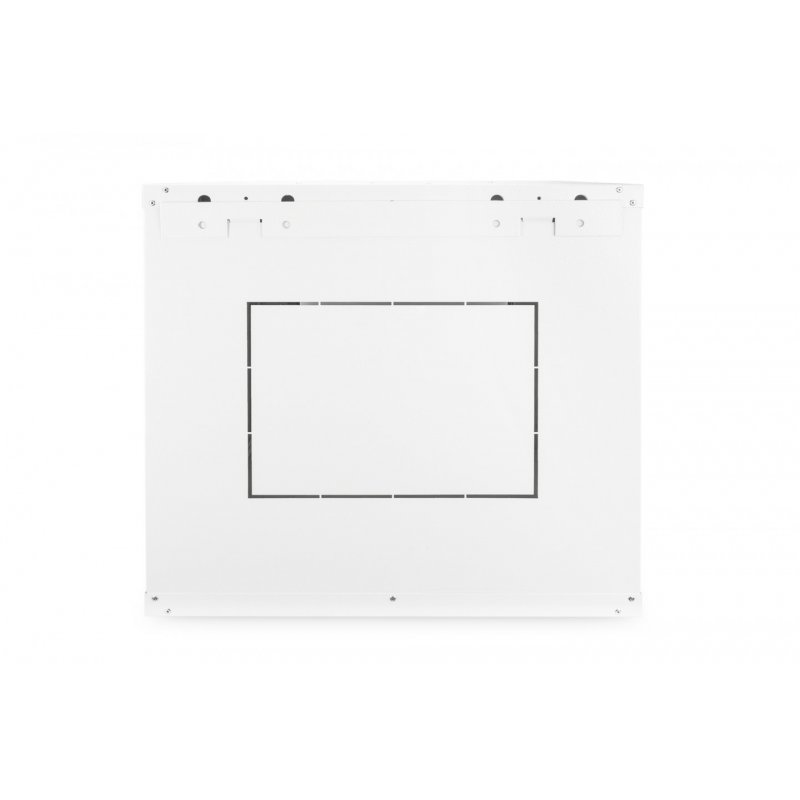

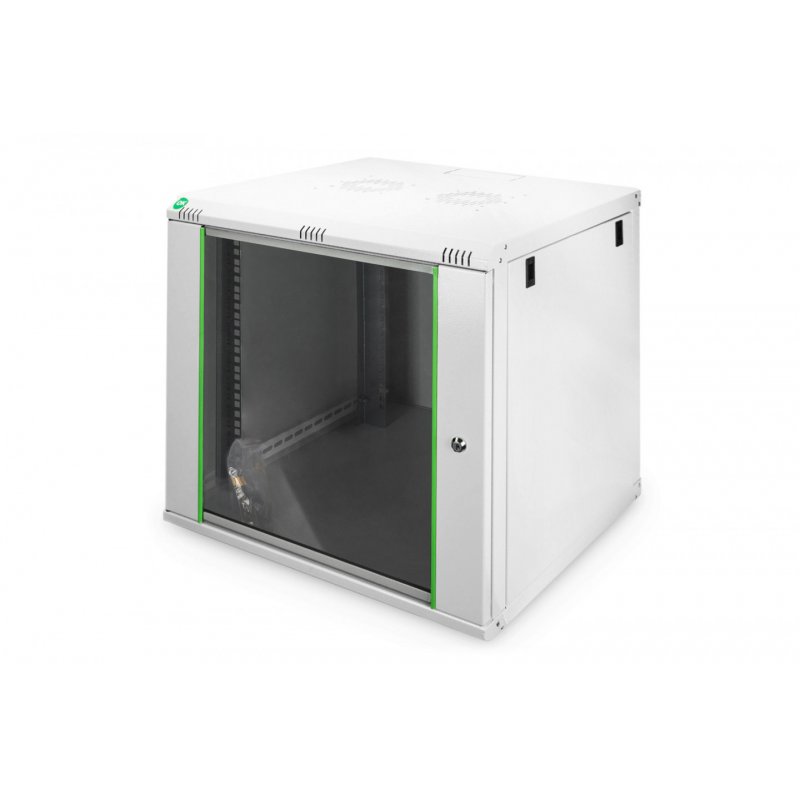

Digitus Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)
Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD), Wall mounted rack, 12U, 60 kg, Key lock, Grey
DN-1912U-66-EC
4016032221753
€219.90
VAT included
Description
Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD). Type: Wall mounted rack, Rack capacity: 12U, Maximum weight capacity: 60 kg, Key lock, International Protection (IP) code: IP20, Product colour: Grey
- Safety class rating IP20
- Lockable safety-glass door with steel frame
- 235° door opening angle
- 1-point-locking-mechanism on the front door
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated
- Cable entry on the rear side, roof and base (pre-punched break-outs)
- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting
- 4 earthing points (base, side panel and front door) with protection cap
- Equipment mounting depth min.-max.: 320 - 450 mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Modèle
- DN-1912U-66-EC
- Weight
- 24.5
Specific References
- ean13
- 4016032221753
