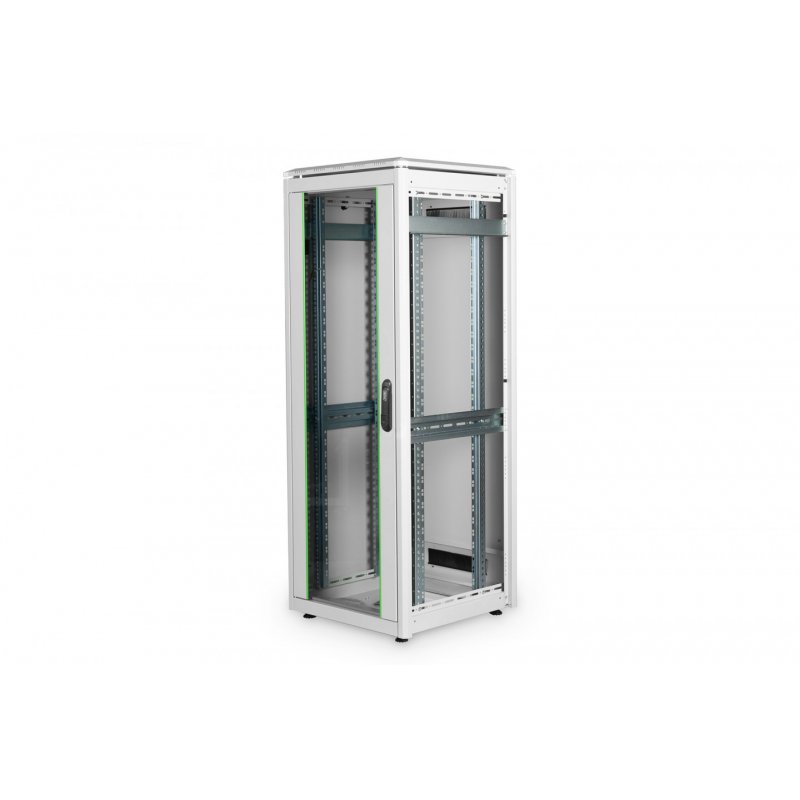

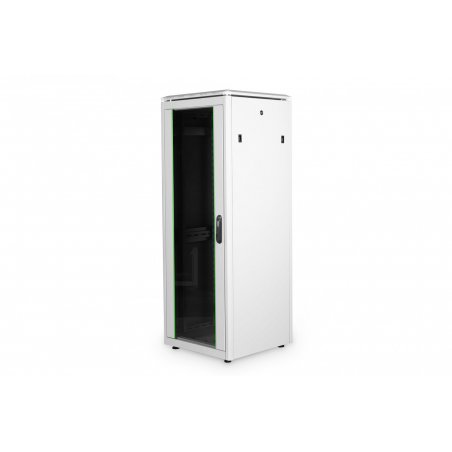

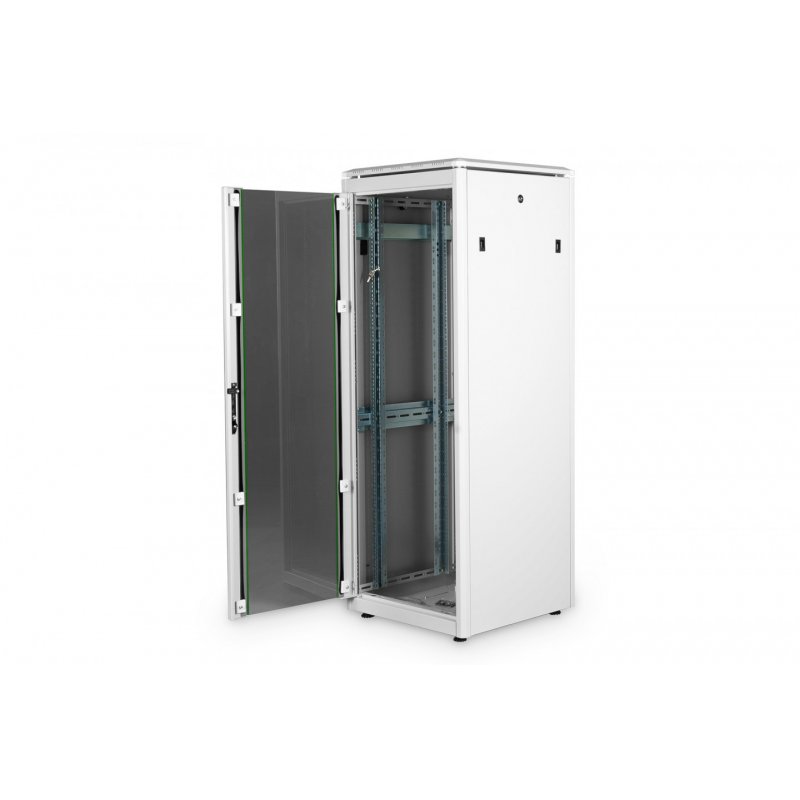

ASSMANN Digitus Network Cabinet Unique Series - 600x600 mm (WxD)
Digitus Network Cabinet Unique Series - 600x600 mm (WxD), Freestanding rack, 800 kg, Grey
DN-1932U-66-1
4016032331049
€679.90
VAT included
Description
Digitus Network Cabinet Unique Series - 600x600 mm (WxD). Type: Freestanding rack, Maximum weight capacity: 800 kg, International Protection (IP) code: IP20, Product colour: Grey
- Safety class rating IP20
- Lateral metal struts front door with safety glass
- Lock system with pivot lever on front door (ready for profile half cylinder; adapter included)
- 120° door opening angle on front- and rear doors
- Single wing opening rear door
- 1-point-locking-mechanism on all doors
- Side panels are lockable and removable
- incl. 4 pieces of leveling feet already pre-configured under the rack
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- Built-in depth support bars for more stability
- Sliding cable entry with rubber sealing on the base
- Cable entry with brush strip at the top and bottom of the cabinet rear side
- Special roof construction for fan unit with added lid which can be unmounted
- Several earthing points for rack components
- Incl. installation set (screws, cage nuts, washers)
- Rack is completely mounted
- Equipment mounting depth min.-max.: 363-543 mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-1932U-66-1
- Weight
- 1
Specific References
- ean13
- 4016032331049
