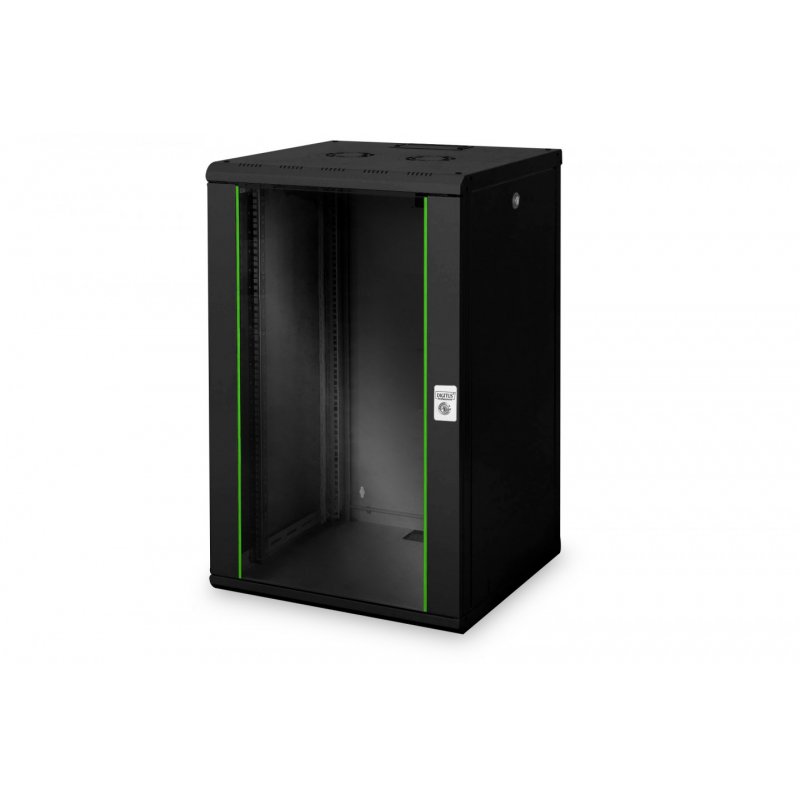

ASSMANN Digitus Wall Mounting Cabinet Unique Series - 600x600 mm (WxD)
Digitus Wall Mounting Cabinet Unique Series - 600x600 mm (WxD), Wall mounted rack, 20U, 100 kg, Key lock, 40 kg, Black
DN-1920U-66-SW
4016032250579
€429.90
VAT included
Description
Digitus Wall Mounting Cabinet Unique Series - 600x600 mm (WxD). Type: Wall mounted rack, Rack capacity: 20U, Maximum weight capacity: 100 kg, Key lock, International Protection (IP) code: IP20. Weight: 40 kg. Product colour: Black
- Safety class rating IP20
- Lockable safety-glass door with steel frame
- 210° door opening angle
- 1-point-locking-mechanism on the front door
- Side panels are lockable and removable
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- Max. installation depth: 450 mm
- Cable entry on the rear side and base with plastic cover and top with sliding cover
- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting
- Several earthing points for rack components
- Incl. installation set (screws, cage nuts, washers)
- Rack is completely mounted
- Equipment mounting depth min.-max.: 320-450 mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-1920U-66-SW
- Weight
- 1
Specific References
- ean13
- 4016032250579
