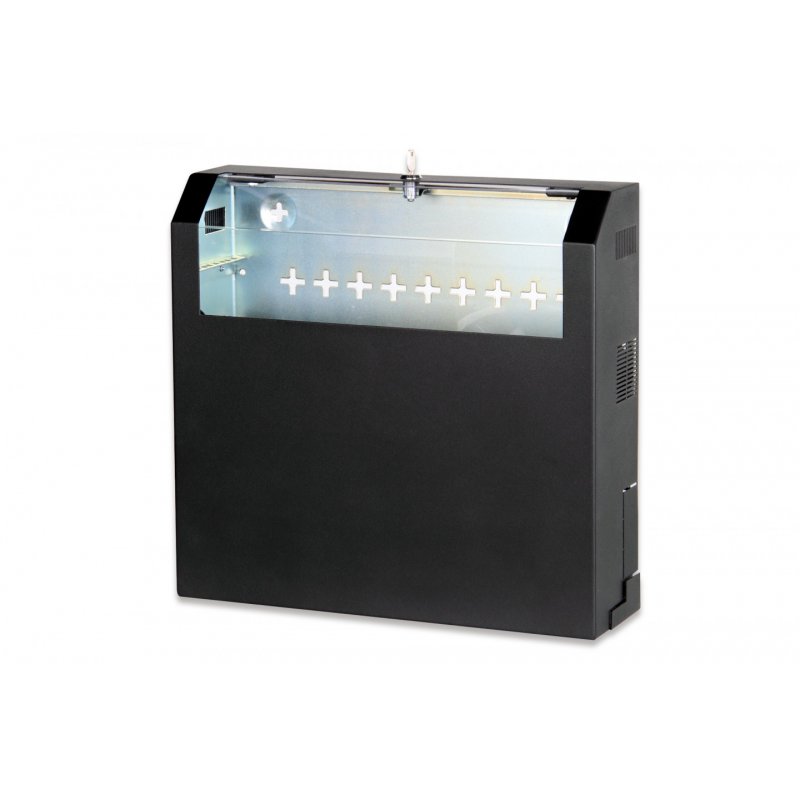

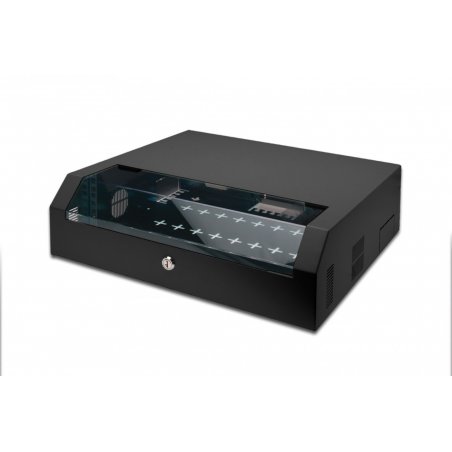

ASSMANN Digitus Wall Mounting Cabinets - SoHo, Slim
Digitus Wall Mounting Cabinets - SoHo, Slim, Wall mounted rack, 3U, 30 kg, 8.5 kg, Black
DN-1904U-PB-B
4016032345282
€179.90
VAT included
Description
Digitus Wall Mounting Cabinets - SoHo, Slim. Type: Wall mounted rack, Rack capacity: 3U, Maximum weight capacity: 30 kg, International Protection (IP) code: IP20. Weight: 8.5 kg. Product colour: Black
- Safety class rating IP20
- Lockable housing with transparent polycarbonat window

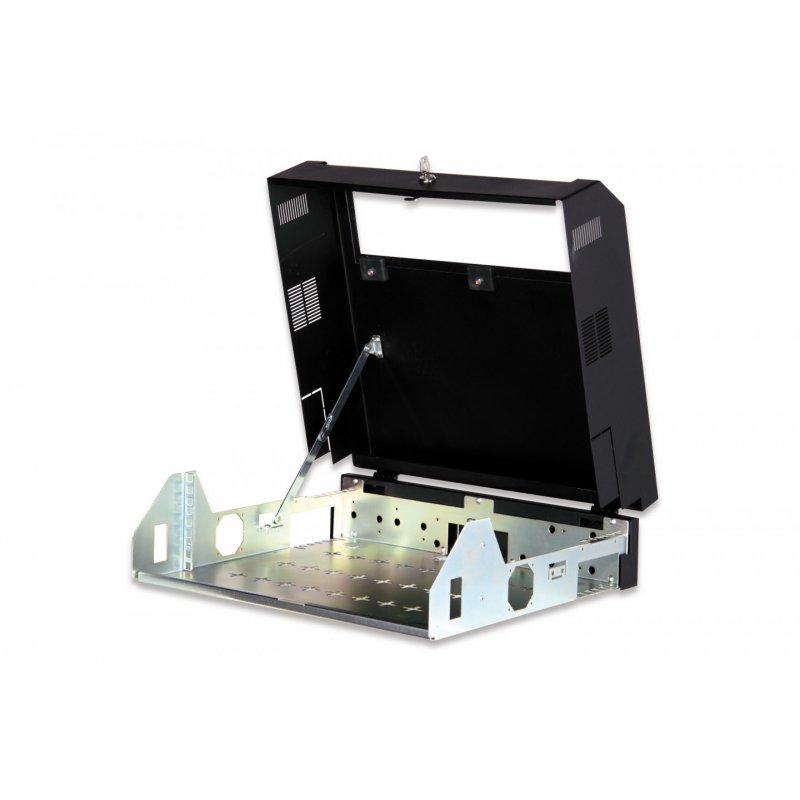

- Upper part of housing can opened up to 80°
- Door stop mechanism of steel which keeps the door open
- 1-point-locking-mechanism
- 2 separate 483 mm (19“) mounting options: 3U vertical (rotatable), 2U horizontal (fix)
- max. installation depth (from front vertical rail to rear horizontal rail): ca. 265 mm
- 2.0 mm strong sheet steel with a high loading capacity, powder coated
- Pre-punched knock-outs for cable management
- Ventilation slots for active and passive ventilation and exhausting
- Cable tire-up divisions
- Lower housing area with punched out mounting holes for the installation of equipment which is not suitable for 483 mm (19”) mounting
- Mounting plate is optional available
- Dimensions ventilator mount: 57.5 x 57.5 mm
- Hole distances ventilator installation: 50 x 50 mm (3.5 mm diameter)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-1904U-PB-B
- Weight
- 1
Specific References
- ean13
- 4016032345282
