ASSMANN Digitus Cat.7 S/FTP installation cable, 305 m, simplex, Dca-s1a,d0,a1
Digitus Cat.7 S/FTP installation cable, 305 m, simplex, Dca-s1a,d0,a1, 305 m, Cat7, S/FTP (S-STP)
DK-1743-VH-305-MF-W
4016032454557
€229.90
VAT included
Description

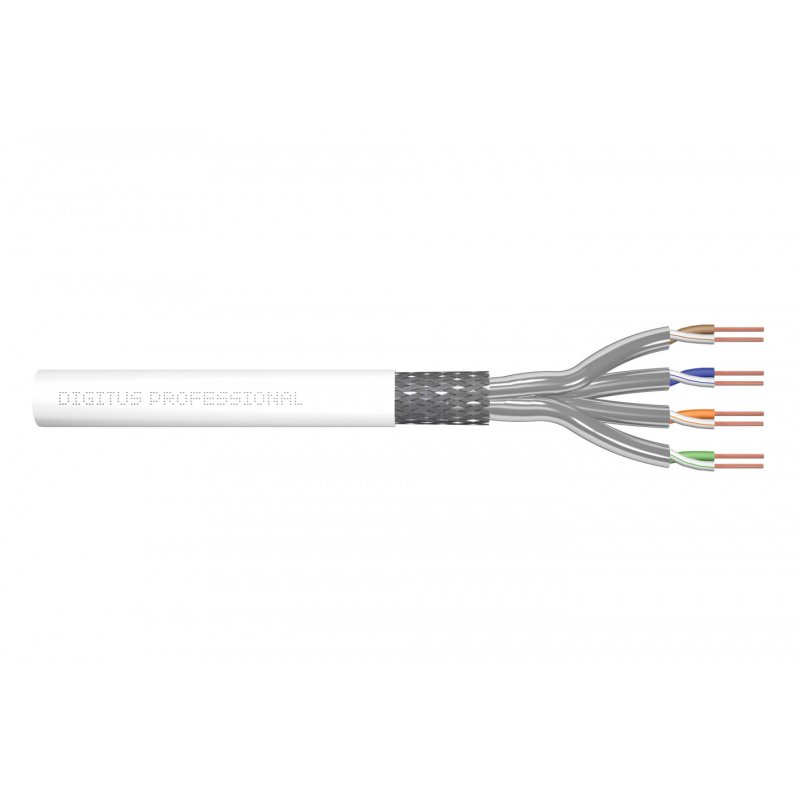

Digitus Cat.7 S/FTP installation cable, 305 m, simplex, Dca-s1a,d0,a1. Cable length: 305 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Data transfer rate: 10000 Mbit/s
- Physical properties:
- Conductor: Bare annealed copper, solid AWG 26/1
- Insulation: SFS-PE (Foam-Skin Polyethylene)
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: Blue-white, orange-white, green-white, brown-white
- Individual pair shielding: Aluminum foil, providing 100 % coverage
- Overall shielding: Copper wire braid
- Outer sheath: Dca acc. to EN 50575; LSZH
- Outer sheath diameter (nominal): 0.52 mm nominal
- Color: White (RAL 9003)
- Mechanical properties:
- Tensile loading: 150N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Shipping- and storage temperature range: -20 °C up to +75 °C
- Operating temperature range: -20 °C up to +50 °C
- Installation temperature range: 0 °C up to +50 °C
- Overall diameter Simplex (nominal): 5.7 mm nominal
- Weight (kg/km): 35 kg/km
- Electrical properties:
- Impedance: 100±15Ohm @ 4 - 100MHz; 100±25Ohm @ 100 - 600MHz
- Capacitance: 45 pF/m nominal @ 1 KHz
- Insulation resistance: 5 GOhm x km min.
- DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
- DC loop resistance: 190 Ohm/Km max. (2% max. resistance unbalance)
- Voltage resistance: 72 Vdc max.
- Coupling attenuation: CA-Type 1b
- Signal propagation delay: 450 nS/100 m max.
- Propagation delay: 25 nS/100 m max.
- Separating class: “d” acc. to EN 50174-2
- NVP: 79%
- Maximum operating length: 60 m
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DK-1743-VH-305-MF-W
- Weight
- 1
Specific References
- ean13
- 4016032454557
