ASSMANN Digitus Cat. 7A S/FTP, installation cable, 500 m, simplex, Dca-s1a d1 a1
Digitus Cat. 7A S/FTP, installation cable, 500 m, simplex, Dca-s1a d1 a1, 500 m, Cat7a, S/FTP (S-STP)
DK-1743-A-VH-5
4016032363842
€589.90
VAT included
Description

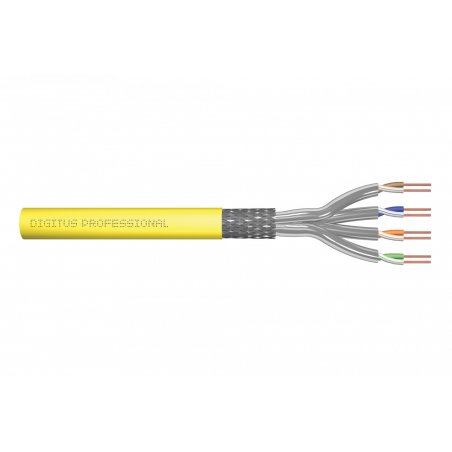

Digitus Cat. 7A S/FTP, installation cable, 500 m, simplex, Dca-s1a d1 a1. Cable length: 500 m, Cable standard: Cat7a, Cable shielding: S/FTP (S-STP)
- Physical properties:
- Cable: Bare copper wire AWG 22/1
- System/s of AVCP: AVCP 3
- Insulation: SFS-PE (foamed polyethylene sheath)
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: blue-white, orange-white, green-white, brown-white
- Shielding of the individual pairs: aluminum-covered polyester film, 100% coverage
- Overall shielding: Copper mesh
- Outer sheath: Halogen-free (FRNC-C/LSZH-3)
- Outer sheath thickness: 0.50 mm nominal
- Color: Sulfur yellow (RAL 1016)
- Length: 500 m
- Mechanical properties:
- Cable grip: 150 N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Transport and storage temperature range: -20 °C to +60 °C
- Operating temperature range: -20 °C to +60 °C
- Installation temperature range: 0 °C to +50 °C
- External diameter: 8.0 mm nominal
- Non-flammability: IEC 60332-3-24
- Halogen-free & smoke density: IEC 60754-2 & IEC 61034
- Fire load: 700 Mj/km
- Weight: 70 kg/km
- Electrical properties:
- Average impedance: 100±5 ohm at 1-600 MHz
- Capacity: 40 pF/m nominal @ 1 KHz
- Capacity unbalance (pair earth): 1.6 pF/m max. @ 1 KHz
- Insulation resistance: 5 Gohm x km min.
- Loop resistance: 147 ohm/km max. (2% max. non-balanced resistance)
- Operating voltage: 72 VDC max.
- Coupling attenuation: Grade 1 (CA type 1b)
- Phase delay: 450 nS/100 m max.
- Signal delay: 10 nS/100 m max.
- Segregation classification: “d” in accordance with EN 50174-2
- NVP: 79%
- Flame spread: EN 60332-1-2 (LSOH-PVC)
- Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
- Smoke density: EN 61034-2
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DK-1743-A-VH-5
- Weight
- 1
Specific References
- ean13
- 4016032363842
