- Rupture de stock, ce produit n'est plus commercialisé

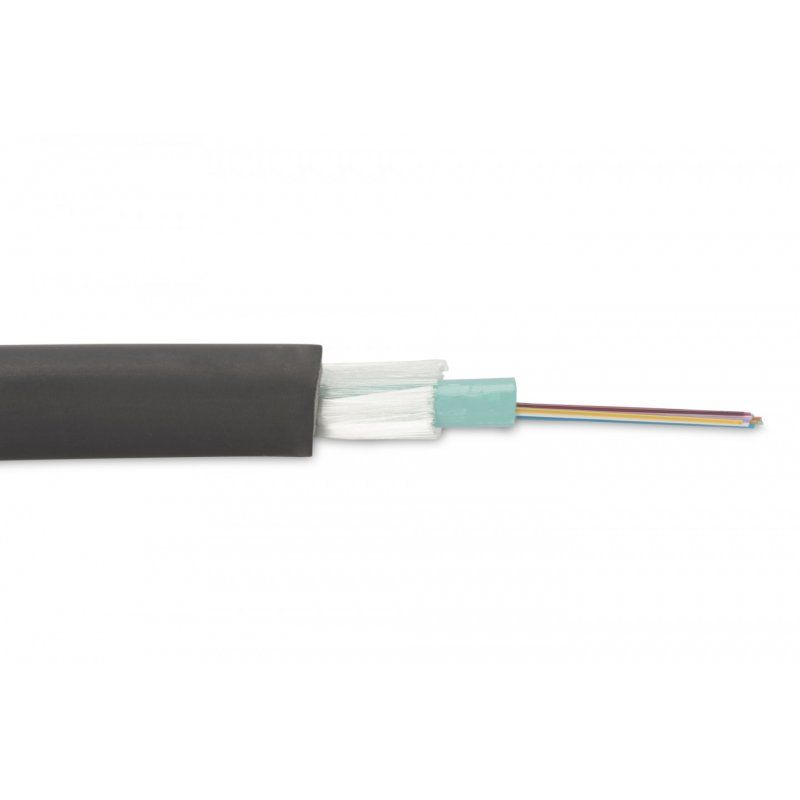

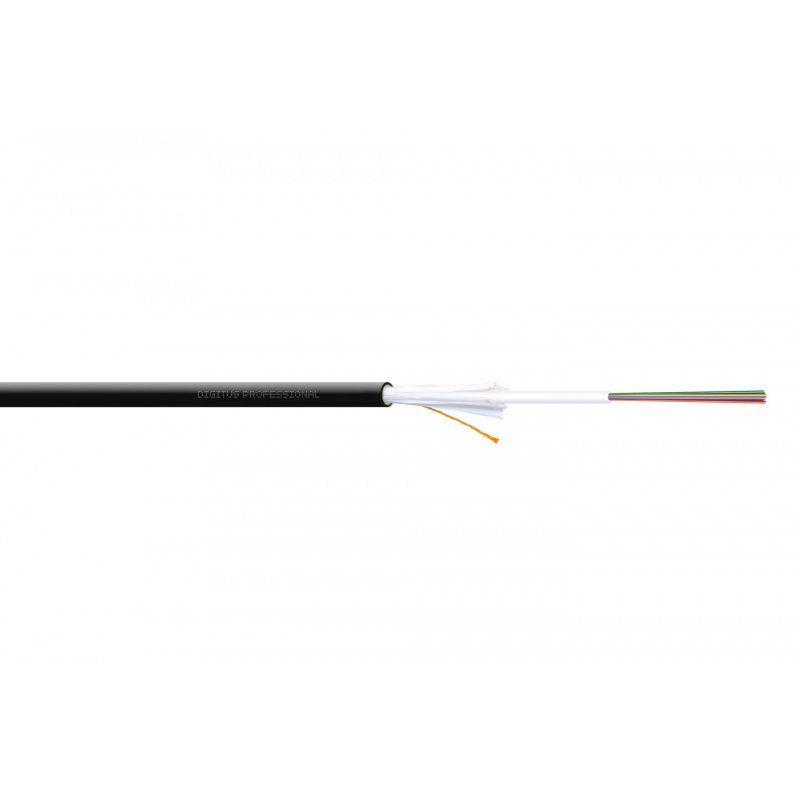

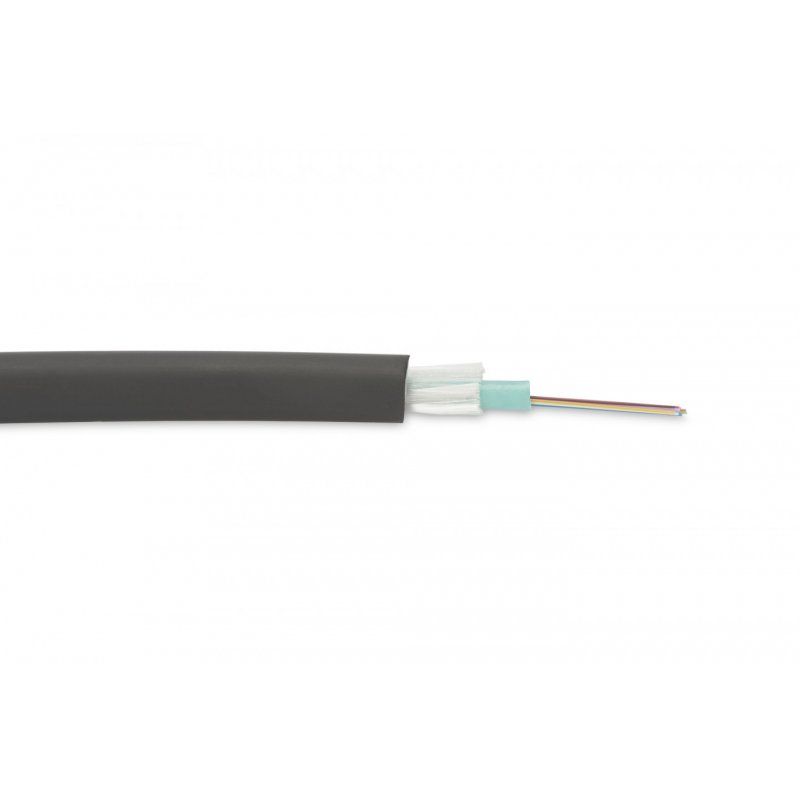

ASSMANN Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 50/125 µ, OM4, 4 fibers, CPR Dca, LSZH-1
Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 50/125 µ, OM4, 4 fibers, CPR Dca, LSZH-1, 1 m, U-DQ(ZN) BH, OM4
DK-350414-U
4016032350798
€1.40
VAT included
Description
Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 50/125 µ, OM4, 4 fibers, CPR Dca, LSZH-1. Cable length: 1 m, Cable type: U-DQ(ZN) BH, Fibre optic type: OM4, Core diameter: 50 µm
- LSZH – low smoke zero halogen
- UV-resistant
- Longitudinaly and laterally water-resistant
- Glass yarn armoured
- Non-metal rodent protection
- Metal free
- Core diameter : 50.0 ± 2.5 µm
- Cladding diameter : 124.8 ± 1.0 µm
- Core-non-circularity : ≤ 5.0 %
- Cladding-non-circularity : ≤ 1.0 %
- Core-cladding concentricity error : ≤ 1.0 µm
- Coating diameter : 245 ± 7 µm
- Coating non-circularity : ≤ 6.0 %
- OFL bandwidth : at 850nm : ≥ 3500 MHz x km ; at 1300nm : ≥ 500 MHz x km
- Effective modal bandwidth : at 850 nm : ≥ 4700 MHz x km ; at 1300nm : ≥ 500 MHz x km
- Fiber count (OM4) : 2-12 pc
- Max. number of loose tube : 1 pc
- Fiber number per tube : 2 - 12 pc
- Loose tube : 2.0 ± 0.2 mm
- Outher sheath material : LSZH, CPR Dca, EN 50575: 2014+A1: 2016
- Cable outer diameter : 6.5 ± 0.5 mm
- Max. allowable pulling force : 1400 N
- Crush resistance : 1000/200 N/100mm
- Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C
- Min. bending radius : installation : 20 x OD ; operation : 10 x OD
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DK-350414-U
- Weight
- 1
Specific References
- ean13
- 4016032350798
