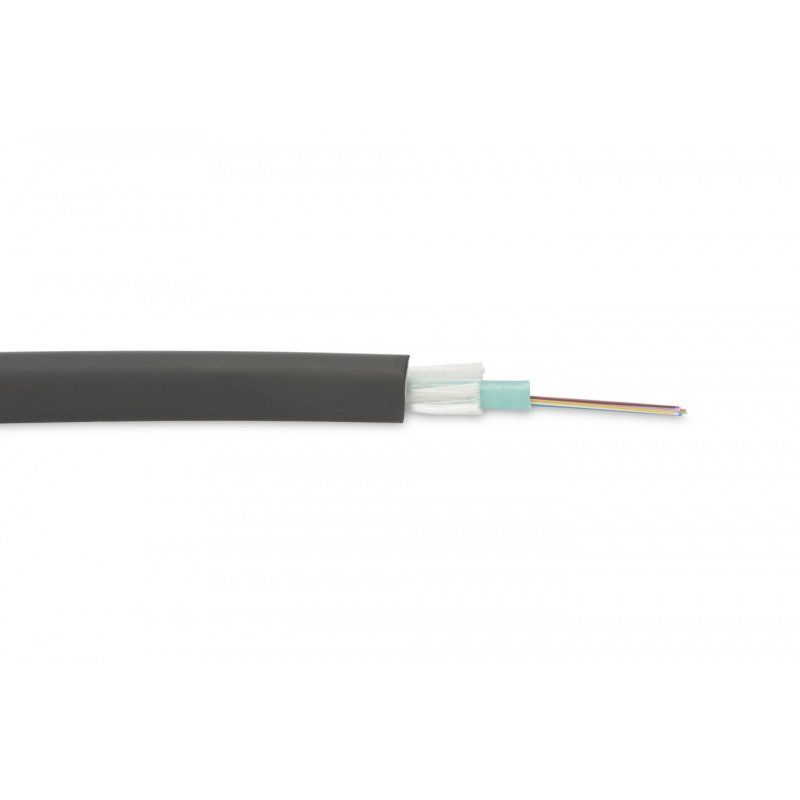

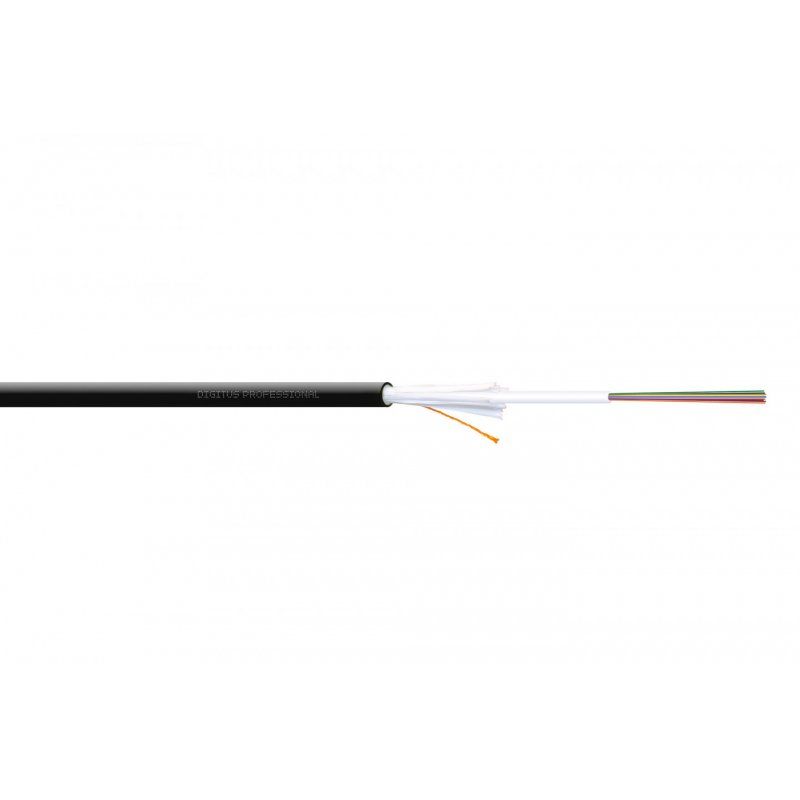

ASSMANN Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 4 fibers, CPR Dca, LSZH
Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 4 fibers, CPR Dca, LSZH, 1 m, U-DQ(ZN) BH, OS2
DK-39041-U
4016032272175
€0.62
VAT included
Description
Digitus Installation Cable Indoor/Outdoor A/I-DQ (ZN) BH 9/125µ OS2, 4 fibers, CPR Dca, LSZH. Cable length: 1 m, Cable type: U-DQ(ZN) BH, Fibre optic type: OS2, Core diameter: 9 µm
- LSZH – low smoke zero halogen
- UV-resistant
- Longitudinaly and laterally water-resistant
- Glass yarn armoured
- Non-metal rodent protection
- Metal free
- Attenuation at 1310nm : ≤ max. 0.34 dB/km (before cabling) ; ≤ max. 0.36 dB/km (after cabling)
- Attenuation at 1550nm: ≤ max. 0.21 dB/km (before cabling) ; ≤ max. 0.22 dB/km (after cabling)
- Attenuation at 1625nm : ≤ max. 0.23 dB/km (before cabling) ; ≤ max. 0.25 dB/km (after cabling)
- Zero Dispersion Wavelength : 1302 ~ 1324 nm
- Zero Dispersion Slope : ≤ 0.092 ps/nm 2 x km
- PMD Link value ( M= 20 cables Q= 0.01%) max. PMDQ : 0.2 ps/√km
- Cable Cutoff Wavelength (λcc) : ≤ 1260 nm
- Macro bending Loss (100 turns ; Φ50nm) at 1550 nm : ≤ 0.05 dB
- Macro bending Loss (100 turns ; Φ50nm) at 1625 nm : ≤ 0.10 dB
- Mode Field Diameter at 1310nm : 9.2 ± 0.4 µm
- Cladding diameter : 125 ± 1 µm
- Core/ clad concentricity error : ≤ 0.6 µm
- Cladding Non-Circularity : ≤ 1.0 %
- Proof stress : ≥ 0.69 Gpa
- Fiber count (OS2 G.652D) : 2-12 pc
- Max. number of loose tube : 1 pc
- Fiber number per tube : 2 - 12 pc
- Loose tube : 2.0 ± 0.2 mm
- Outher sheath material : LSZH, CPR Dca, EN 50575: 2014+A1: 2016
- Cable outer diameter : 6.5 ± 0.5 mm
- Max. allowable pulling force : 1400 N
- Crush resistance : 1000/200 N/100mm
- Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C
- Min. bending radius : installation : 20 x OD ; operation : 10 x OD
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DK-39041-U
- Weight
- 1
Specific References
- ean13
- 4016032272175
