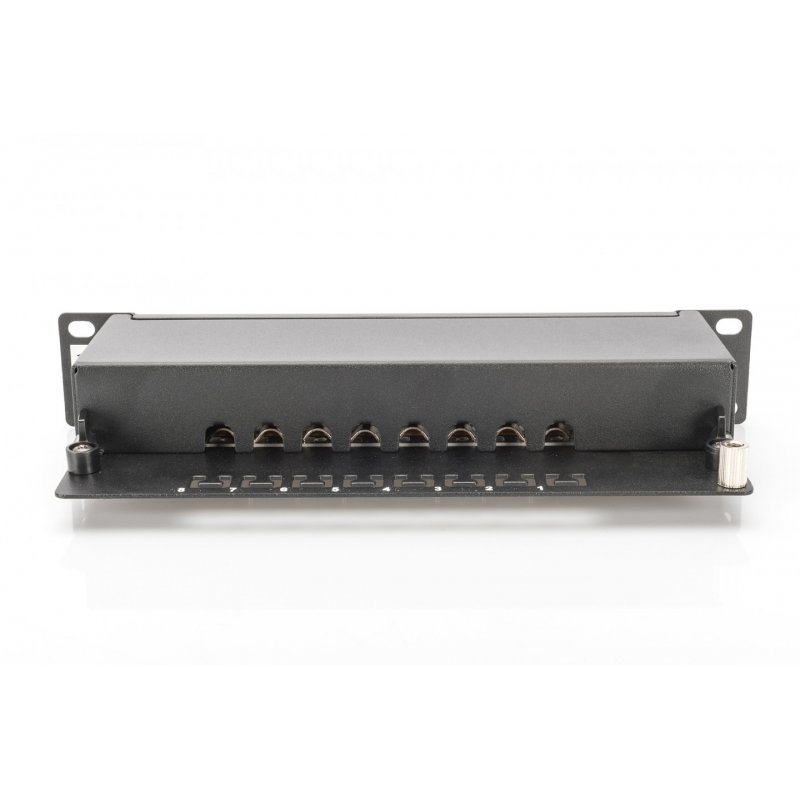

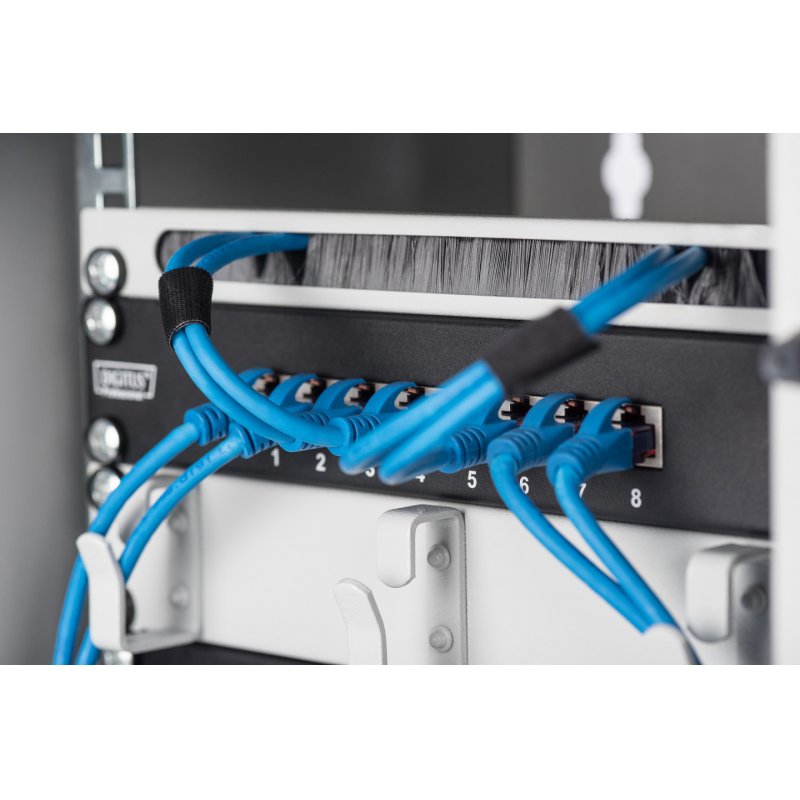

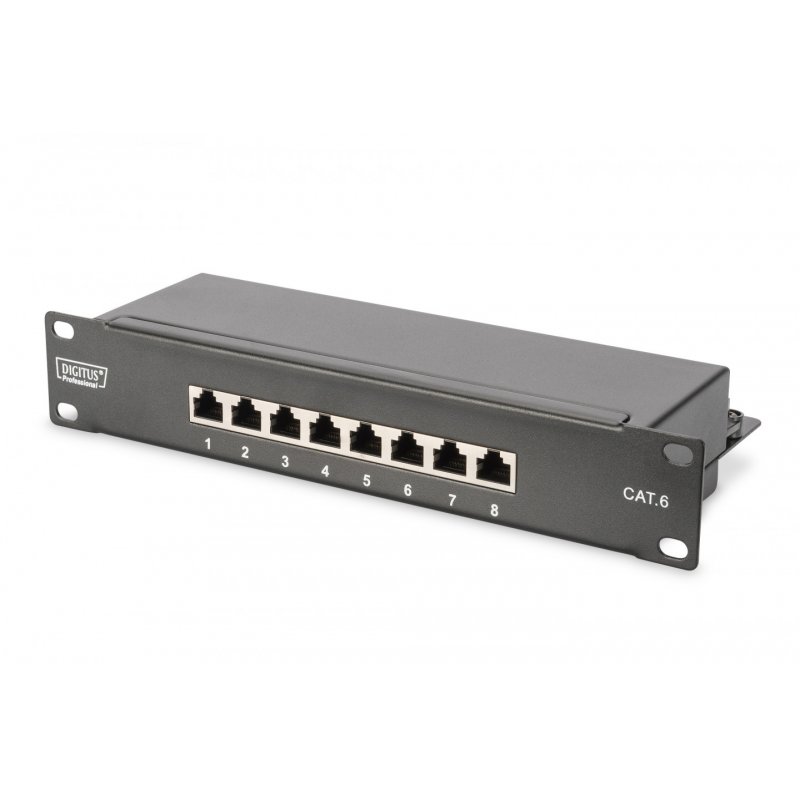

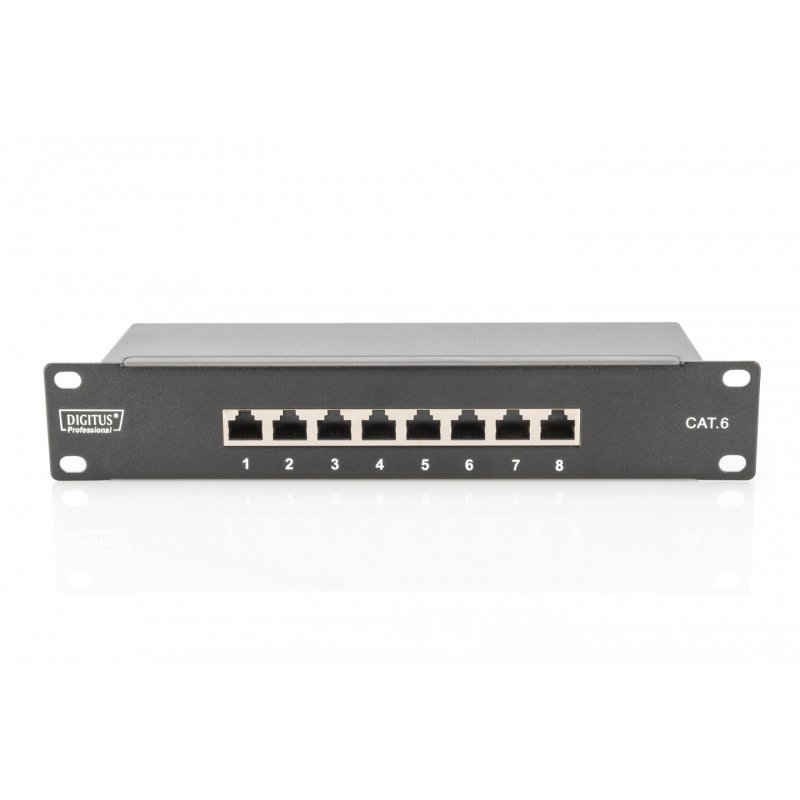

ASSMANN Digitus CAT 6, Class E Patch Panel, shielded, black
Digitus CAT 6, Class E Patch Panel, shielded, black, RJ-45, Black, Rack mounting, 1U, UL, 180 mm
DN-91608S
4016032241577
€24.90
VAT included
Description
Digitus CAT 6, Class E Patch Panel, shielded, black. Connector(s): RJ-45. Product colour: Black, Mounting: Rack mounting, Rack capacity: 1U. Package width: 180 mm, Package depth: 280 mm, Package weight: 1.5 kg. Country of origin: China
- Transmission properties: Category 6
- Area of application: Up to 250 MHz, 1GBase-T
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for 254 mm (10") cabinet mounting
- RJ45 female, 8P8C

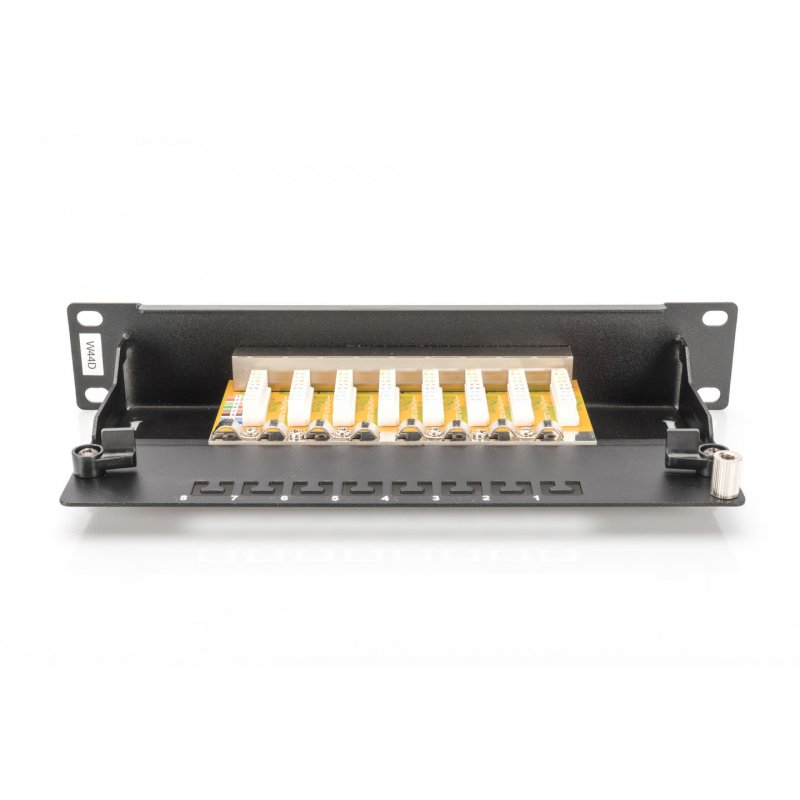

- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
- Cable fixing with smart cable ties
- Integrated dust cover
- Central ground connection
- 360° shield coverage
- Mechanical properties:
- Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
- Ground wire: Not included
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
- Color: Black (RAL 9005)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-91608S
- Weight
- 1
Specific References
- ean13
- 4016032241577
