Digitus Digitus Cat.7 S/FTP installation cable, 100 m, simplex, Dca-s1a d1 a1

Digitus Cat.7 S/FTP installation cable, 100 m, simplex, Dca-s1a d1 a1, 100 m, Cat7, S/FTP (S-STP)
DK-1743-VH-1
4016032392101
€94.90
VAT included

Visa
Mastercard
PayPal

Description

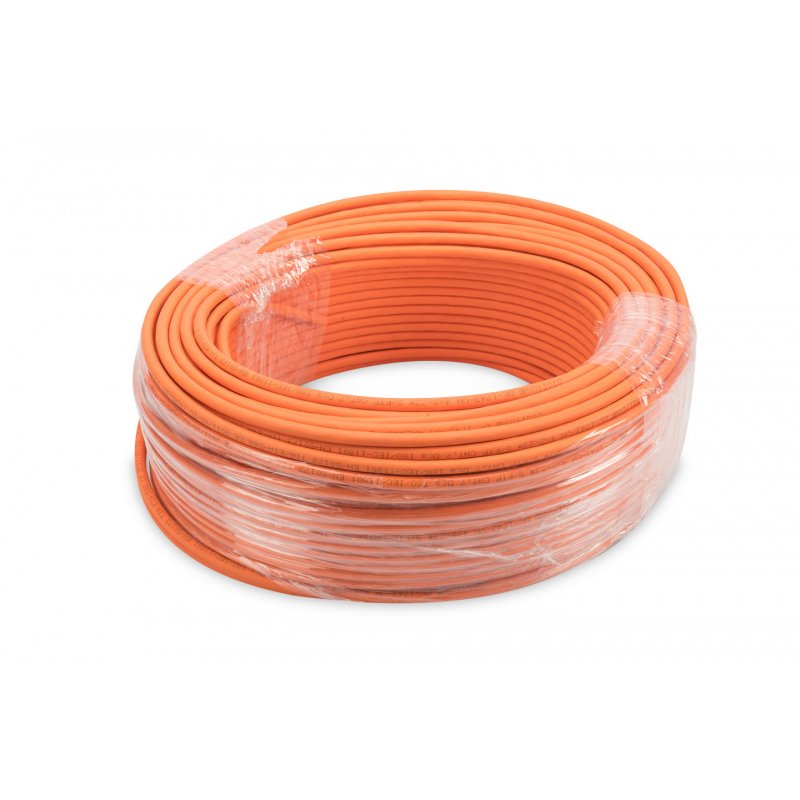

Digitus Cat.7 S/FTP installation cable, 100 m, simplex, Dca-s1a d1 a1. Cable length: 100 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP)

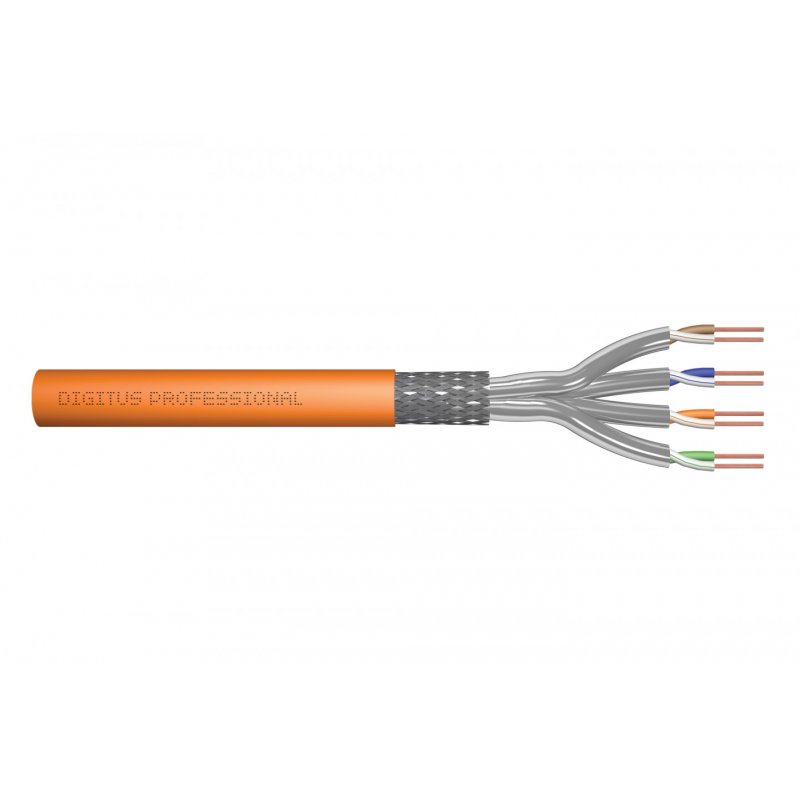

  • Physical properties:
  • Conductor: Bare annealed copper, solid AWG 23/1
  • System/s of AVCP: AVCP 3
  • Insulation: SFS-PE (Foam-Skin Polyethylene)
  • Total number of insulated conductors: 8, twisted in 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of individual pairs: aluminum-clad polyester foil, covers 100%.
  • Overall shielding: Copper braid
  • Outer sheath: Dca- s2,d1,a1, acc. to EN 50575; LSZH
  • Outer sheath diameter (nominal): 0,50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
  • Color: Orange (RAL 2008)
  • Mechanical properties:
  • Tensile loading: 135N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Shipping- and storage temperature range: -20 °C up to +60 °C
  • Operating temperature range: -20 °C up to +50 °C
  • Installation temperature range: 0 °C up to +50 °C
  • Overall diameter Simplex (nominal): 7,0 mm (Eca); 7,2 mm (Dca); 7,5 mm (Cca); 7,5 mm (B2ca)
  • Weight (kg/km): 49,5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca)
  • Electrical properties:
  • Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
  • Capacitance: 45 pF/m nominal @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
  • DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
  • Voltage resistance: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Signal propagation delay: 450 nS/100 m max.
  • Propagation delay: 10 nS/100 m max.
  • Separating class: “d” acc. to EN 50174-2
  • NVP: 79%
  • Flame spread: EN 60332-1-2 (LSOH-PVC)
  • Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
  • Smoke density: EN 61034-2

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus
Weight

Specific References

ean13
4016032392101
