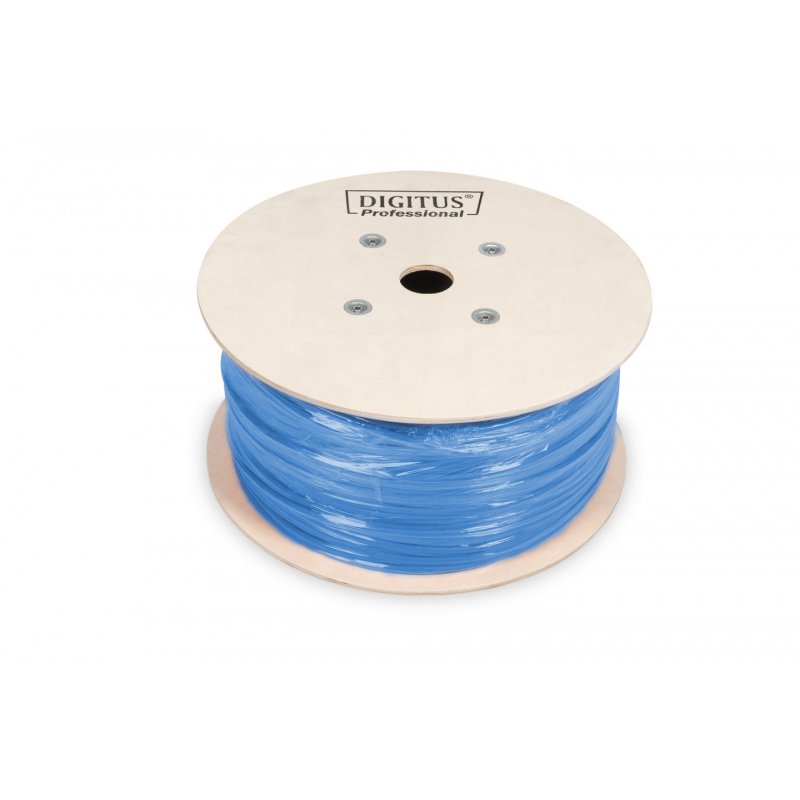

Digitus Digitus Cat.6A U/FTP installation cable, 305 m, simplex, Eca
Digitus Cat.6A U/FTP installation cable, 305 m, simplex, Eca, 305 m, Cat6a, U/FTP (STP)
DK-1623-A-VH-305
4016032344124
€279.90
VAT included
Description

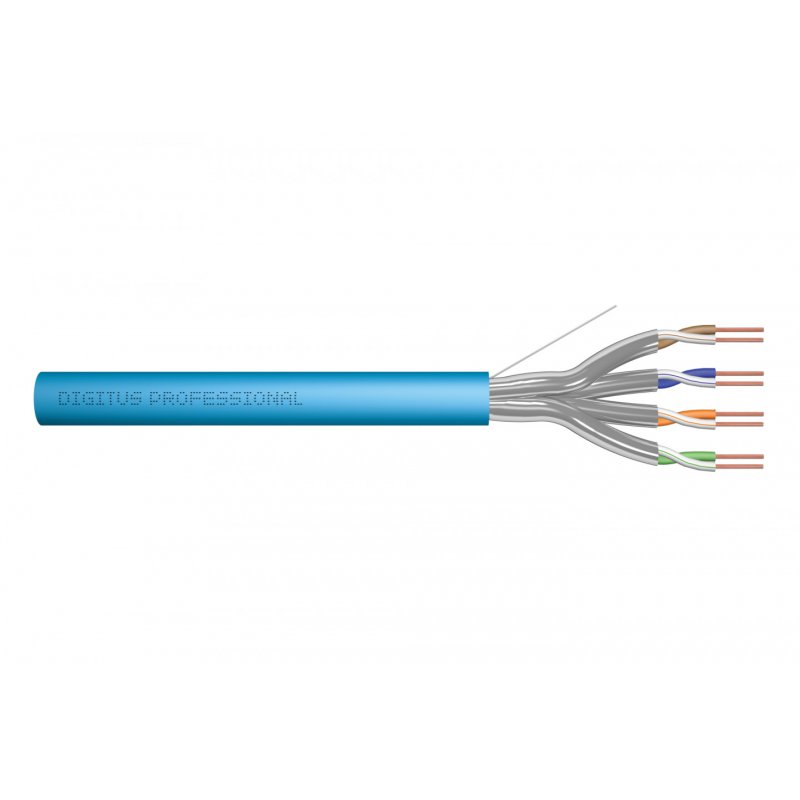

Digitus Cat.6A U/FTP installation cable, 305 m, simplex, Eca. Cable length: 305 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP)
- Physical properties:
- Conductor: Bare annealed copper, solid AWG 23/1
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: Blue-white, orange-white, green-white, brown-white
- Individual pair shielding: Aluminum foil, providing 100 % coverage
- Overall shielding: None, with drain wire
- Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
- Outer sheath color: Light blue (RAL 5012)
- Mechanical properties:
- Tensile loading: 150N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Shipping- and storage temperature range: -20 °C up to +60 °C
- Operating temperature range: -20 °C up to +75 °C
- Installation temperature range: 0 °C up to +50 °C
- Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca)
- Weight (kg/km): 56 kg (Eca); 57 kg (Dca); 58 kg (Cca); 58 kg (B2ca)
- Electrical properties:
- Impedance: 100±15 Ohm @ 4 - 100MHz; 100±25 Ohm @100-500 MHz
- Capacitance: 45 pF/m nominal @ 1 KHz
- Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
- Insulation resistance: 5 GOhm x km min.
- DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
- Voltage resistance: 72 Vdc max.
- Coupling attenuation: CA-Type 2
- Signal propagation delay: 450 nS/100 m max.
- Propagation delay: 25 nS/100 m max.
- Separating class: ,,c” acc. to EN 50174-2
- NVP: 70%
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Weight
Specific References
- ean13
- 4016032344124
