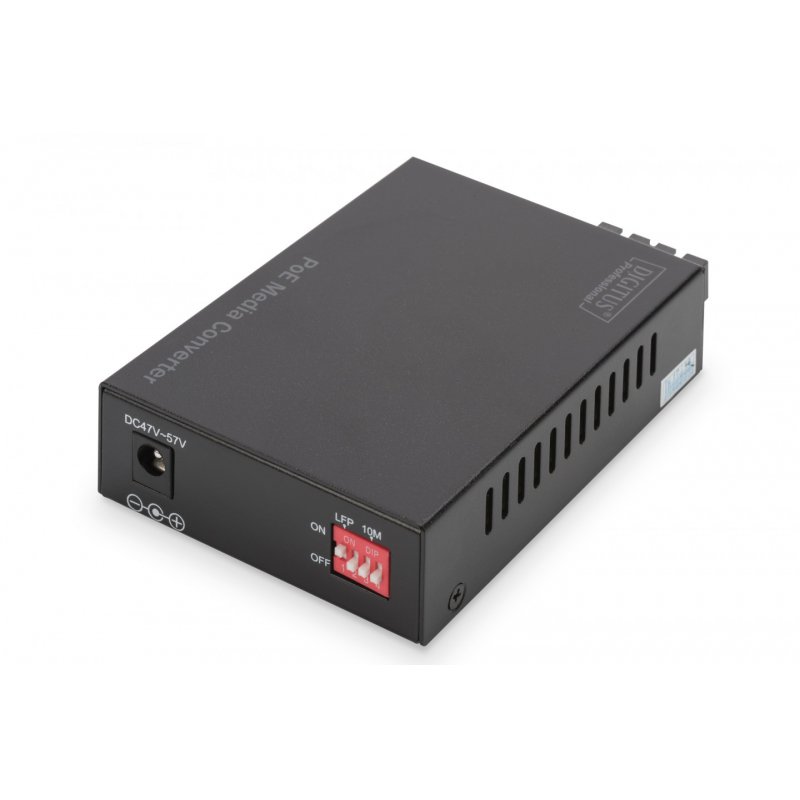

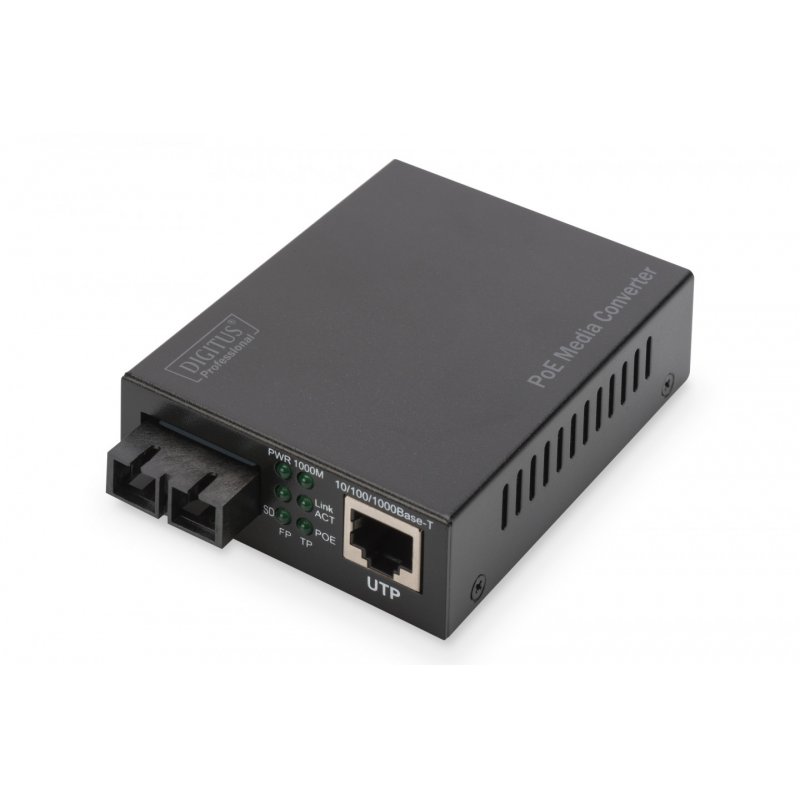

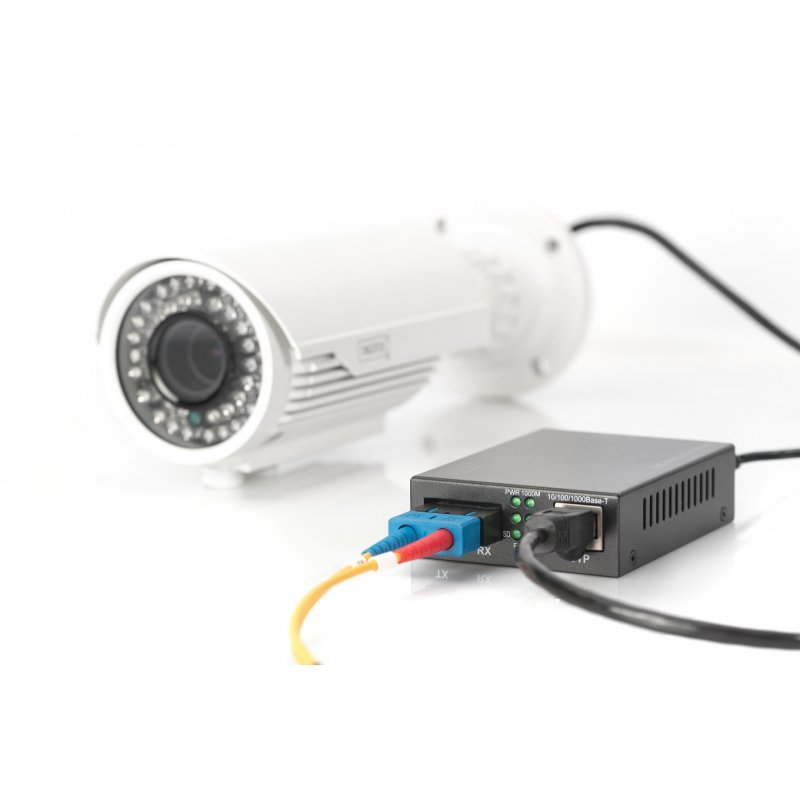

Digitus Digitus Gigabit PoE media converter, RJ45 / SC, MM, PSE
Digitus Gigabit PoE media converter, RJ45 / SC, MM, PSE, 1000 Mbit/s, 100Base-TX, 1000Base-TX, 1000Base-SX, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s
DN-82150
4016032390022
€89.90
VAT included
Description
Digitus Gigabit PoE media converter, RJ45 / SC, MM, PSE. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 100Base-TX, 1000Base-TX, Converter output interface: 1000Base-SX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 500 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Status, Product colour: Black, Country of origin: China. Input voltage: 5 V, Output voltage: 48 - 52 V, Total Power over Ethernet (PoE) budget: 30 W
- PoE power supplier, PSE
- Compatible with the IEEE802.3af and IEEE802.3at standards
- PoE power supply via PIN 4/5 (V-) and PIN 7/8 (V+)
- Maximum total output of 30 watts
- Compatible with IEEE802.3, IEEE802.3u and IEEE802.3z standards
- Automatic cable recognition - Auto MDI/MDI-X function
- Auto recognition of full and half duplex

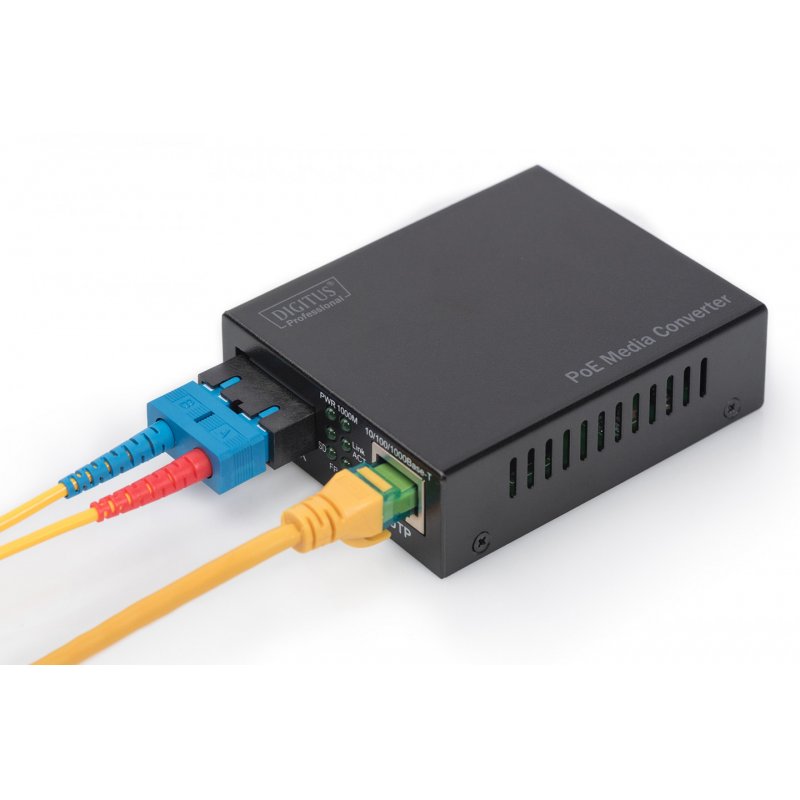

- Converts wire-based network signals into fiber optic signals
- 10/100/1000Base-TX to 1000Base-SX

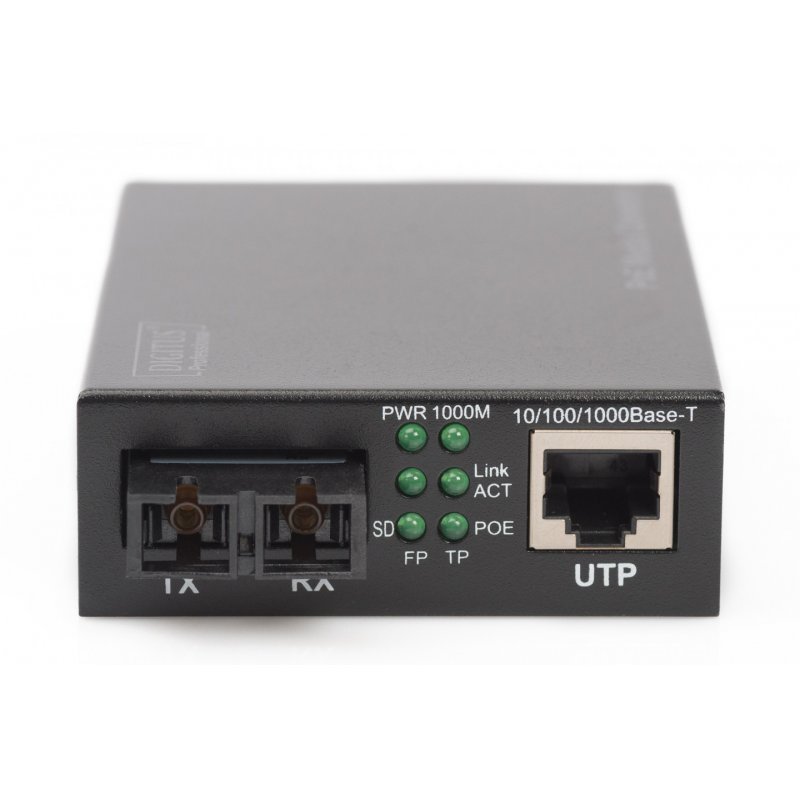

- Ports: 1x RJ45, 1x SC duplex
- Range of up to 0.5km
- Wavelength: 850nm
- Multimode dual fiber
- Diagnostic LEDs for status and activity monitoring
- Power supply: 48~52V DC
- Operating temperature: -20°C - 65°C
- Storage temperature: -40°C - 85°C
- Dimensions (mm): 95(L) x 71(W) x 26(H)
- MTBF: 500,000 hours
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Weight
Specific References
- ean13
- 4016032390022
