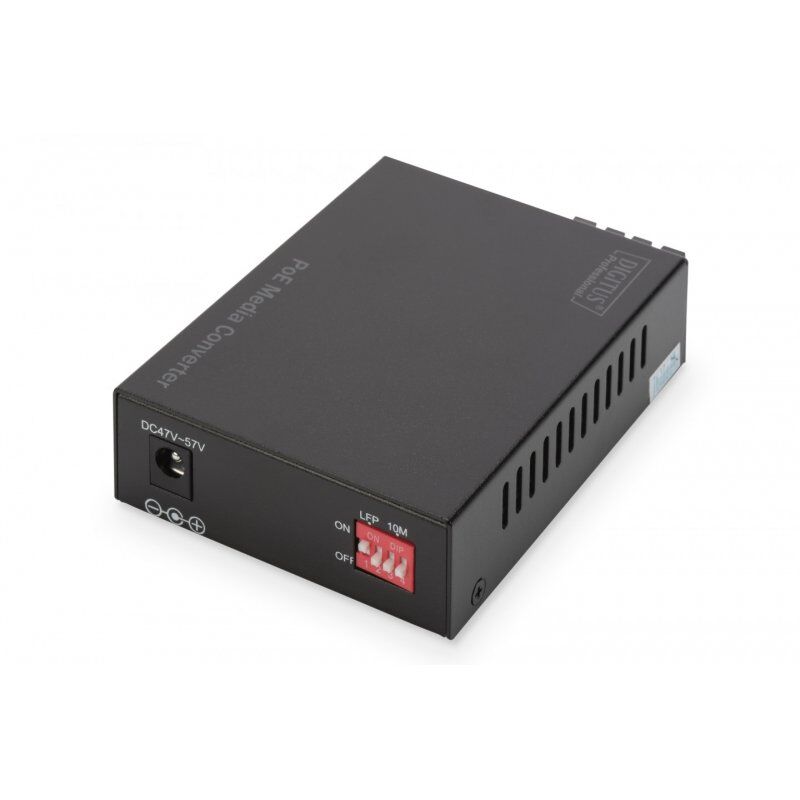

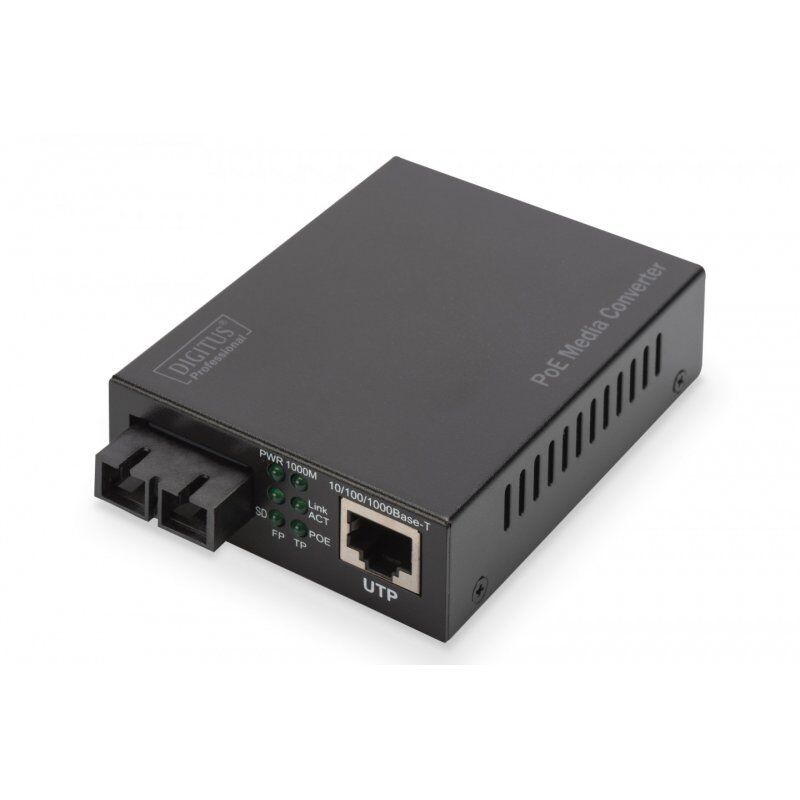

Digitus Digitus Gigabit PoE media converter, RJ45 / SC, SM, PSE

Digitus Gigabit PoE media converter, RJ45 / SC, SM, PSE, 1000 Mbit/s, 100Base-TX, 1000Base-TX, 1000Base-LX, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s
DN-82160
4016032390039
€85.01
VAT included

Visa
Mastercard
PayPal

Description

Digitus Gigabit PoE media converter, RJ45 / SC, SM, PSE. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 100Base-TX, 1000Base-TX, Converter output interface: 1000Base-LX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Status, Product colour: Black, Country of origin: China. Output voltage: 48 - 52 V, Total Power over Ethernet (PoE) budget: 30 W
  • PoE power supplier, PSE
  • Compatible with the IEEE802.3af and IEEE802.3at standards
  • PoE power supply via PIN 4/5 (V-) and PIN 7/8 (V+)
  • Maximum total output of 30 watts
  • Compatible with IEEE802.3, IEEE802.3u and IEEE802.3z standards
  • Automatic cable recognition - Auto MDI/MDI-X function
  • Auto recognition of full and half duplex
  • Converts wire-based network signals into fiber optic signals
  • 10/100/1000Base-TX to 1000Base-LX

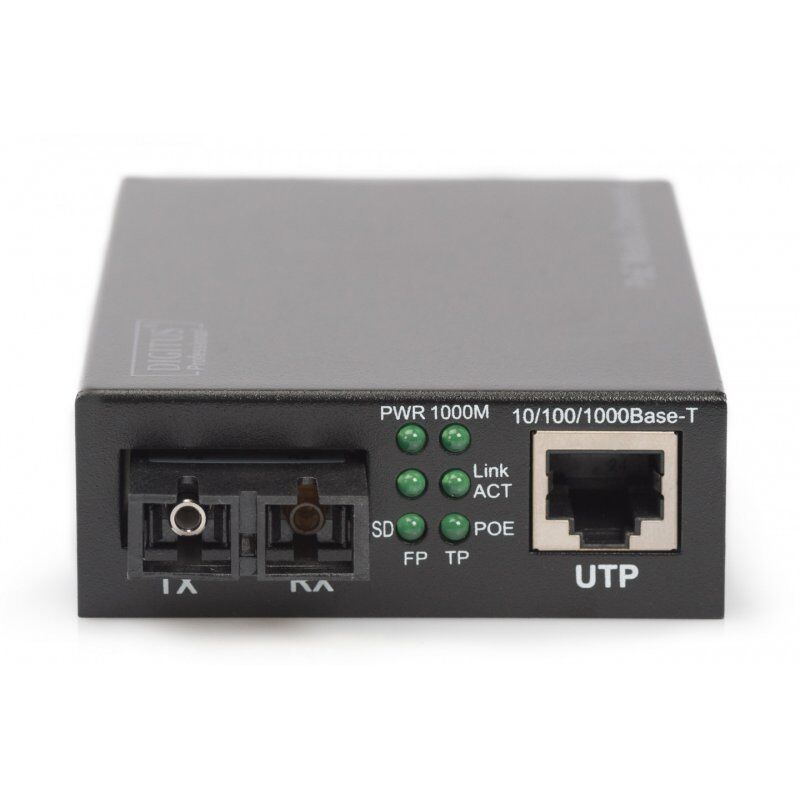

  • Ports: 1x RJ45, 1x SC duplex
  • Range of up to 20km
  • Wavelength: 1310nm
  • Singlemode Dual Fiber
  • Diagnostic LEDs for status and activity monitoring

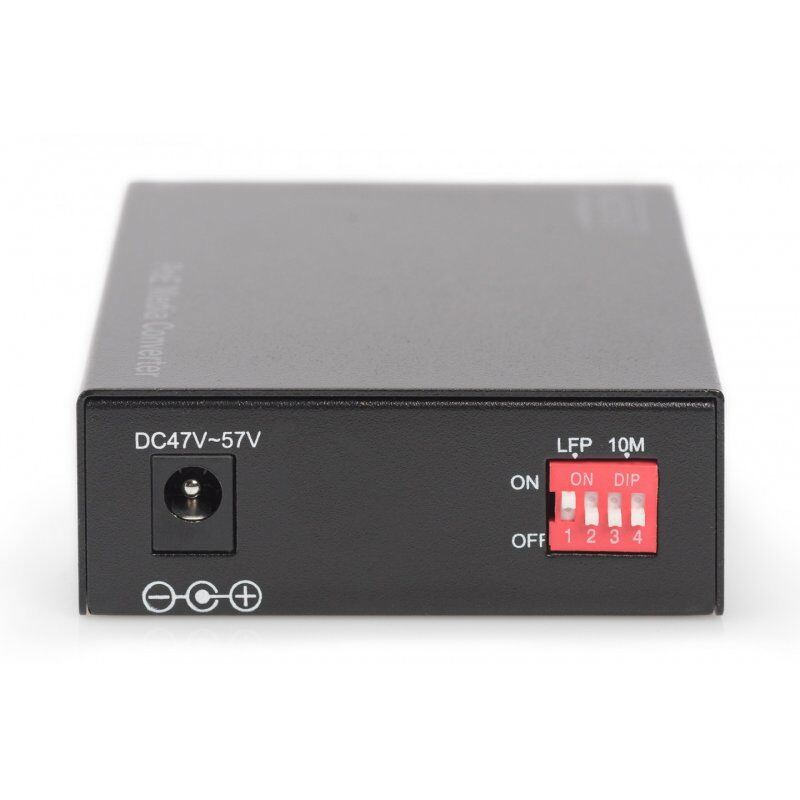

  • Power supply: 48~52V DC
  • Operating temperature: -20°C - 65°C
  • Storage temperature: -40°C - 85°C
  • Dimensions (mm): 95(L) x 71(W) x 26(H)
  • MTBF: 500,000 hours

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus
Weight

Specific References

ean13
4016032390039
