Digitus Digitus CAT 7A S/FTP, installation cable, 500 m, simplex, Dca-s1a d1 a1

Digitus CAT 7A S/FTP, installation cable, 500 m, simplex, Dca-s1a d1 a1, 500 m, Cat7, S/FTP (S-STP)
DK-1743-A-VH-5-LD
4016032455394
€529.90
VAT included

Visa
Mastercard
PayPal

Description

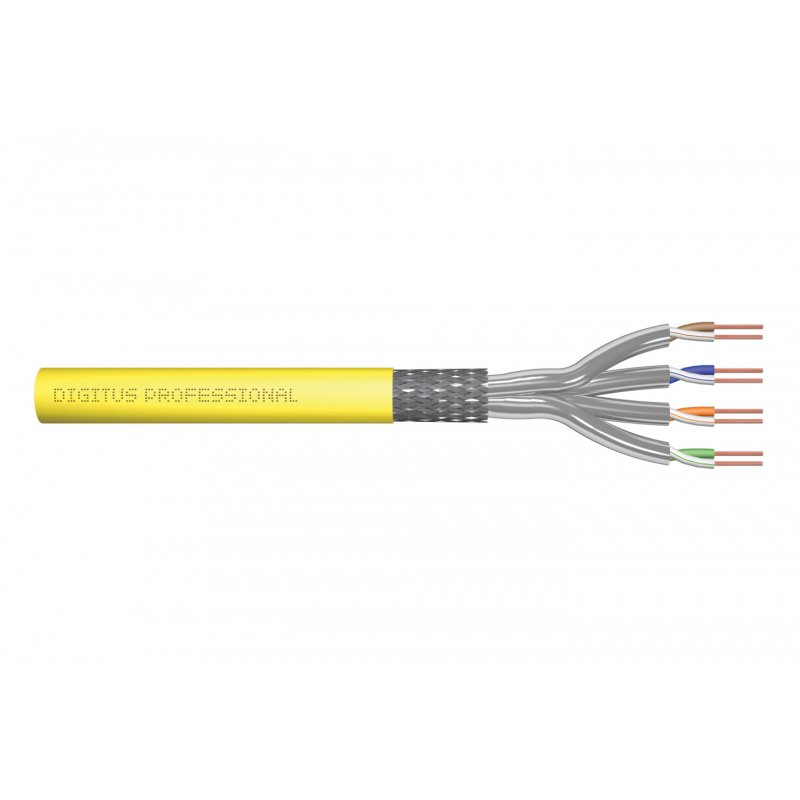

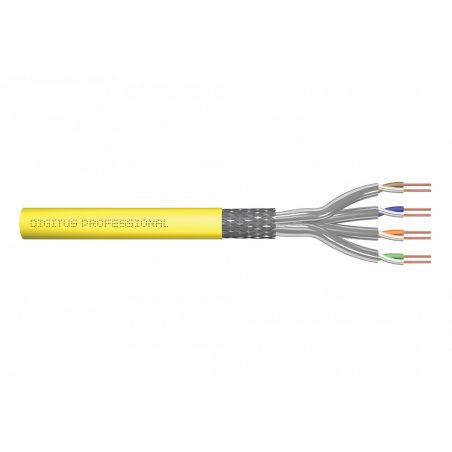

Digitus CAT 7A S/FTP, installation cable, 500 m, simplex, Dca-s1a d1 a1. Cable length: 500 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP)
  • Physical properties:
  • Cable: Bare copper wire AWG 23/1
  • System/s of AVCP: AVCP 3
  • Insulation: SFS-PE (foamed polyethylene sheath)
  • Total number of insulated conductors: 8, twisted in 4 pairs
  • Color code: blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: aluminum-covered polyester film, 100% coverage
  • Overall shielding: Copper mesh
  • Outer sheath: Halogen-free (FRNC-C/LSZH-3)
  • Outer sheath thickness: 0.50 mm nominal
  • Color: Sulfur yellow (RAL 1016)
  • Length: 500 m
  • Mechanical properties:
  • Cable grip: 150 N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to 60 °C
  • Operating temperature range: -20 °C to 60 °C
  • Installation temperature range: 0 °C to 50 °C
  • External diameter: 8.0 mm nominal
  • Non-flammability: IEC 60332-3-24
  • Halogen-free & smoke density: IEC 60754-2 & IEC 61034
  • Fire load: 700 Mj/km
  • Weight: 70 kg/km
  • Electrical properties:
  • Average impedance: 100±5 ohm at 1-1250 MHz
  • Capacity: 40 pF/m nominal @ 1 KHz
  • Capacity unbalance (pair earth): 1.6 pF/m max. @ 1 KHz
  • Insulation resistance: 5 Gohm x km min.
  • Loop resistance: 147 ohm/km max. (2% max. non-balanced resistance)
  • Operating voltage: 72 VDC max.
  • Coupling attenuation: Grade 1 (CA type 1b)
  • Phase delay: 450 nS/100 m max.
  • Signal delay: 10 nS/100 m max.
  • Segregation classification: “d” in accordance with EN 50174-2
  • NVP: 79%
  • Flame spread: EN 60332-1-2 (LSOH-PVC)
  • Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
  • Smoke density: EN 61034-2

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

ean13
4016032455394
