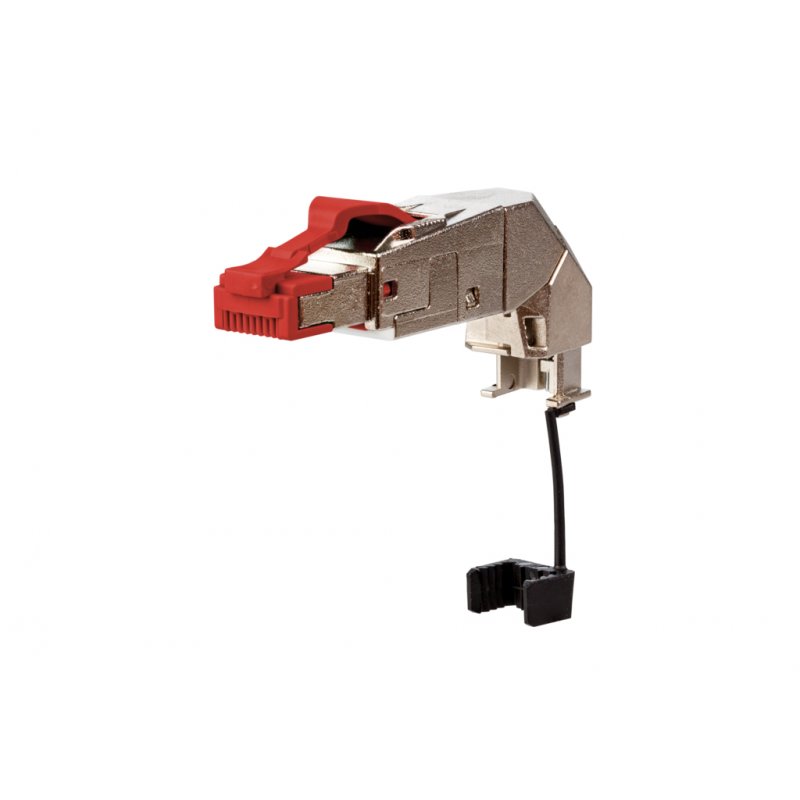

METZ CONNECT METZ CONNECT 25G RJ45 field plug pro 360 wire connector Red
METZ CONNECT 25G RJ45 field plug pro 360, RJ45, Red, Male, Angled, Plastic, Zinc, Nickel/Gold
130G405042-E
4251394618562
€14.90
VAT included
Description
METZ CONNECT 25G RJ45 field plug pro 360. Connector(s): RJ45, Product colour: Red, Connector gender: Male. Width: 13.8 mm, Depth: 49.8 mm, Height: 16.5 mm. Quantity per pack: 10 pc(s). Package width: 164 mm, Package depth: 258 mm, Package height: 51 mm. Country of origin: Germany
- RJ45 plug to be assembled in the field for 25 Gbit up to 1250 MHz - fully shielded and multi-port capable
- variable (360°) cable feed, freely selectable - easy assembly - connection without special tools
- wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.43 to 0.76 mm - wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.64 mm
- transmission characteristics per ISO/IEC 11801 Ed.3:2017 (up to 1250 MHz) - suitable for 25GBASE-T 25 GBit Ethernet (IEEE 802.3bq), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
- degree of protection IP20
- for cable jacket diameter from 5.5 to 10.5 mm
- zinc die-cast housing for industrial use consists of only 2 parts
- strain relief by latching clip directly on the stuffer cap - protected locking hook - reconnectable
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- METZ CONNECT
Specific References
- ean13
- 4251394618562
