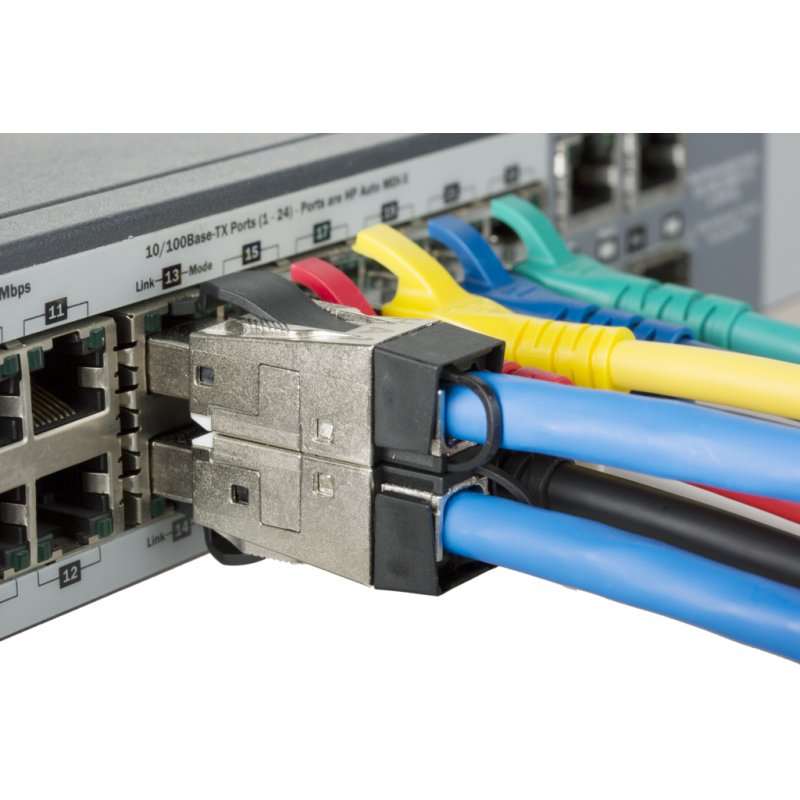

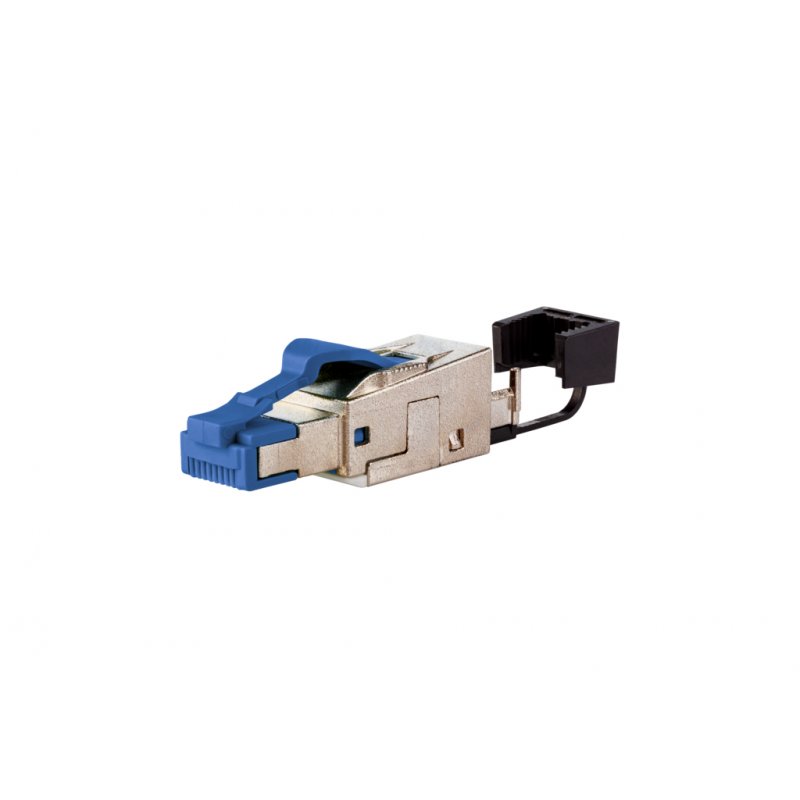

METZ CONNECT METZ CONNECT 40G RJ45 field plug pro wire connector Blue
METZ CONNECT 40G RJ45 field plug pro, RJ45, Blue, Male, Straight, Plastic, Zinc, Cat8.1
130H405032-E
4251394614519
€14.90
VAT included
Description
METZ CONNECT 40G RJ45 field plug pro. Connector(s): RJ45, Product colour: Blue, Connector gender: Male. Width: 13.8 mm, Depth: 49.8 mm, Height: 16.5 mm. Quantity per pack: 10 pc(s). Package type: Box. Country of origin: Germany
- Cat.8.1 class I RJ45 plug to be assembled in the field (up to 2000 MHz) - fully shielded and multi-port capable - straight (180°) cable feed - easy assembly - connection without special tools
- wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.43 to 0.76 mm - wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.64 mm
- transmission characteristics Cat.8.1 per ISO/IEC 11801 Ed.3:2017 (up to 2000 MHz´)
- compliance with class I to ISO/IEC 11801 Ed.3:2017, DIN EN 50173-1:2018
- suitable for 40GBASE-T 40 GBit Ethernet (IEEE 802.3bq), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
- degree of protection IP20
- for cable jacket diameter from 5.5 to 10.5 mm
- zinc die-cast housing for industrial use consists of only 2 parts
- strain relief by latching clip directly on the stuffer cap - protected locking hook - reconnectable
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- METZ CONNECT
Specific References
- ean13
- 4251394614519
