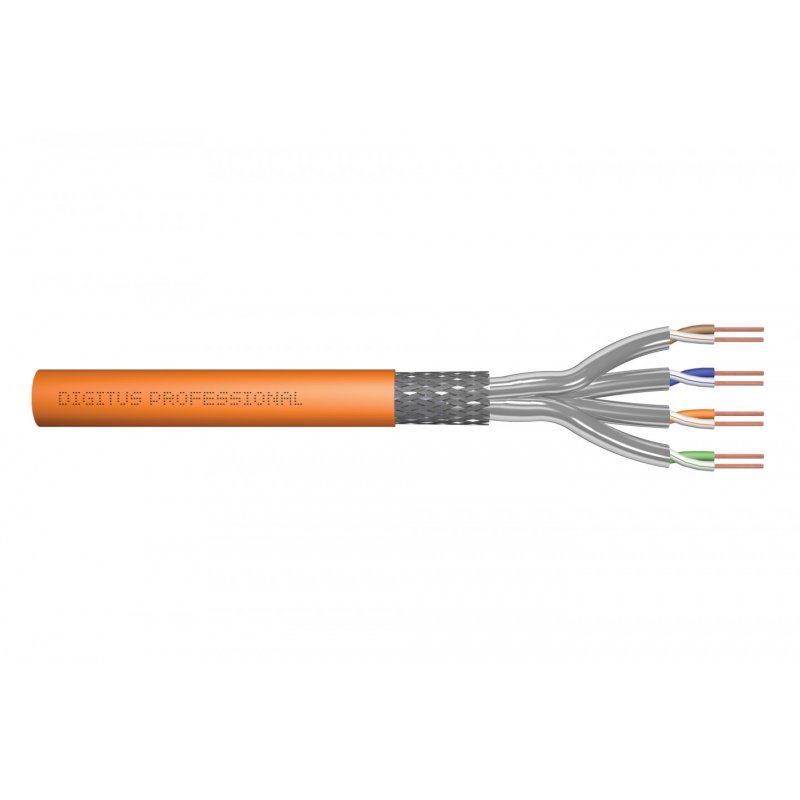

Digitus Digitus Cat.7 S/FTP installation cable, 1000 m, simplex, Cca
Digitus Cat.7 S/FTP installation cable, 1000 m, simplex, Cca, 1000 m, Cat7, S/FTP (S-STP)
DK-1744-VH-10
4016032441281
€989.90
VAT included
Description
Digitus Cat.7 S/FTP installation cable, 1000 m, simplex, Cca. Cable length: 1000 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP)
- Physical properties:
- Conductor: Bare annealed copper, solid AWG 23/1
- Insulation: SFS-PE (Foam-Skin Polyethylene)
- Total number of insulated conductors: 8, twisted in 4 pairs
- Color code: Blue-white, orange-white, green-white, brown-white
- Individual pair shielding: Aluminum foil, providing 100 % coverage
- Overall shielding: Copper braid
- Outer sheath: Cca-s1a d1 a1.acc. to EN 50575; LSZH
- Outer sheath diameter (nominal): 0,50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
- Color: Orange (RAL 2008)
- Mechanical properties:
- Tensile loading: 150N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Shipping- and storage temperature range: -20 °C up to 60 °C
- Operating temperature range: -20 °C up to 50 °C
- Installation temperature range: 0 °C up to 50 °C
- Electrical properties:
- Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
- Capacitance: 45 pF/m nominal @ 1 KHz
- Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
- Insulation resistance: 5 GOhm x km min.
- DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
- DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
- Voltage resistance: 72 Vdc max.
- Coupling attenuation: CA-Type 1b
- Signal propagation delay: 450 nS/100 m max.
- Propagation delay: 10 nS/100 m max.
- Separating class: “d” acc. to EN 50174-2
- NVP: 79%
- Flame spread: EN 60332-3-24 (LSOH-PVC)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
Specific References
- ean13
- 4016032441281
