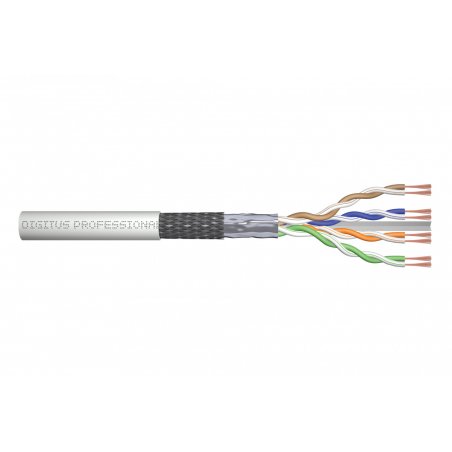

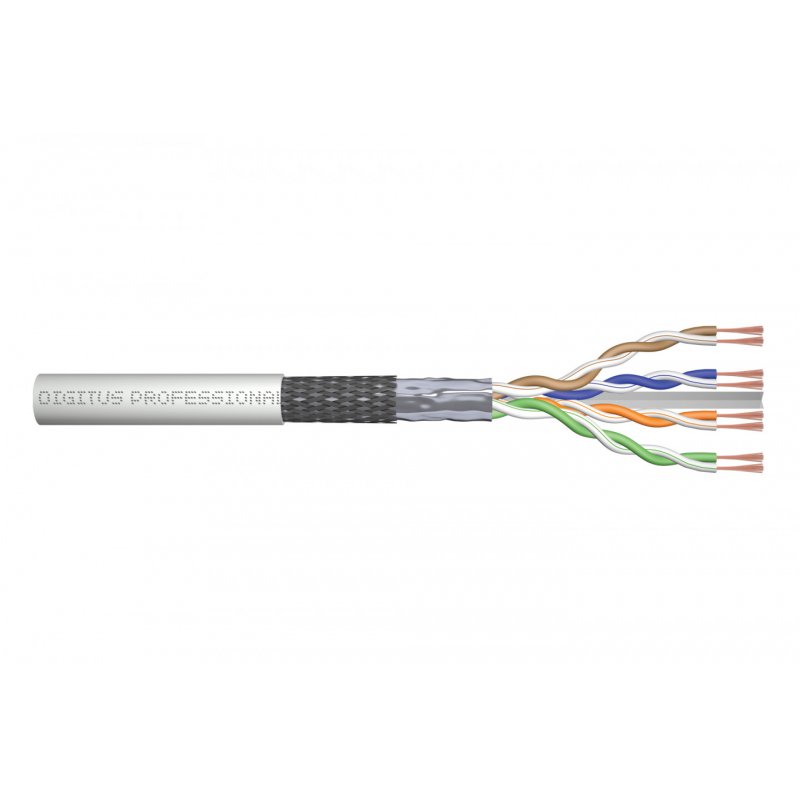

Digitus Digitus CAT 6 SF/UTP twisted pair patch cord, raw
Digitus CAT 6 SF/UTP twisted pair patch cord, raw, 305 m, Cat6, SF/UTP (S-FTP)
DK-1633-P-305
4016032425960
€203.90
VAT included
Description
Digitus CAT 6 SF/UTP twisted pair patch cord, raw. Cable length: 305 m, Cable standard: Cat6, Cable shielding: SF/UTP (S-FTP), Data transfer rate: 10000 Mbit/s
- Insulation: HD-PE
- Outer sheath diameter: 0.55 mm nominal
- Overall diameter: 6.3 mm nominal
- Tensile loading: 150 N max.
- Dynamic bending radius: 8x AD mm min.
- Static bending radius: 4x AD mm min.
- Shipping- and storage temperature range: -10 °C up to 75 °C
- Operating temperature range: -10 °C up to 60 °C
- Installation temperature range: 0 °C up to 50 °C
- DC loop resistance: ≤ 280 Ω km
- Resistance unbalance ≤ 2%
- Insulation resistance: ≥ 2000MΩ/km @500V
- Capacitance: nom. 48 nF/km @ 800 Hz
- Capacitance unbalance (pair-ground): ≤ 1500 nF/km
- Characeristic Impedance: 100 ± 15 Ohm @ 10-100 MHz
- NVP: 67%
- Propagation delay: nom. ≤ 555 ns/100 m
- Delay skew: nom. ≤ 50 ns/ 100 m
- Test voltage (DC 1 min) core/core: 1000V
- Coupling attenuation: ≥ 40 dB
- Capacitance: 48 pF/m nominal @ 800 Hz
- Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
- Insulation resistance: 2 GOhm x km min.
- DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
- Voltage resistance: 72 Vdc max.
- Coupling attenuation: 40 dB
- Signal propagation delay: 450 nS/100 m max.
- Propagation delay: 20 nS/100 m max.
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
Specific References
- ean13
- 4016032425960
