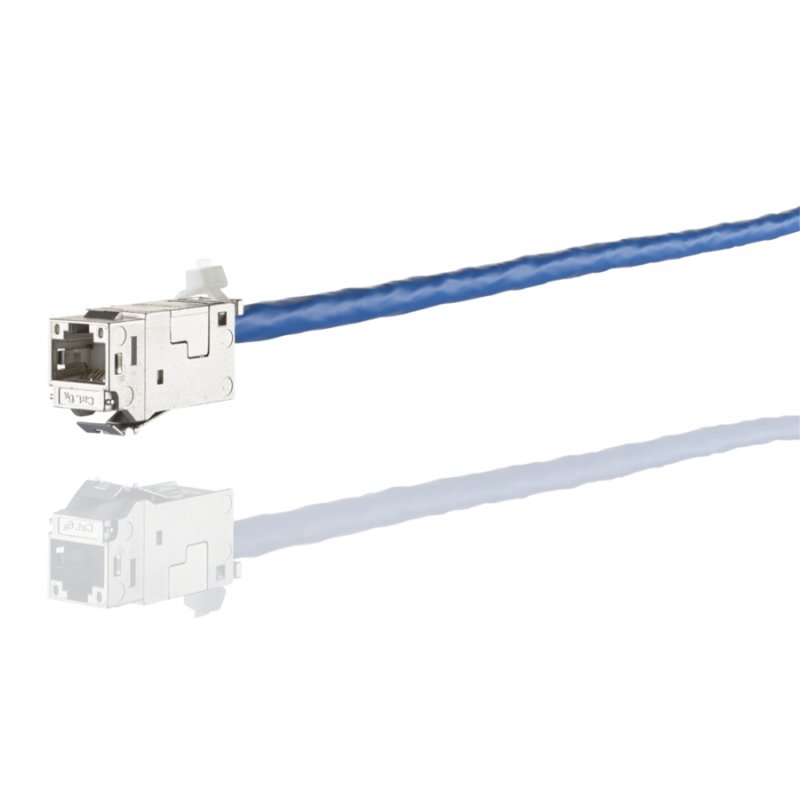

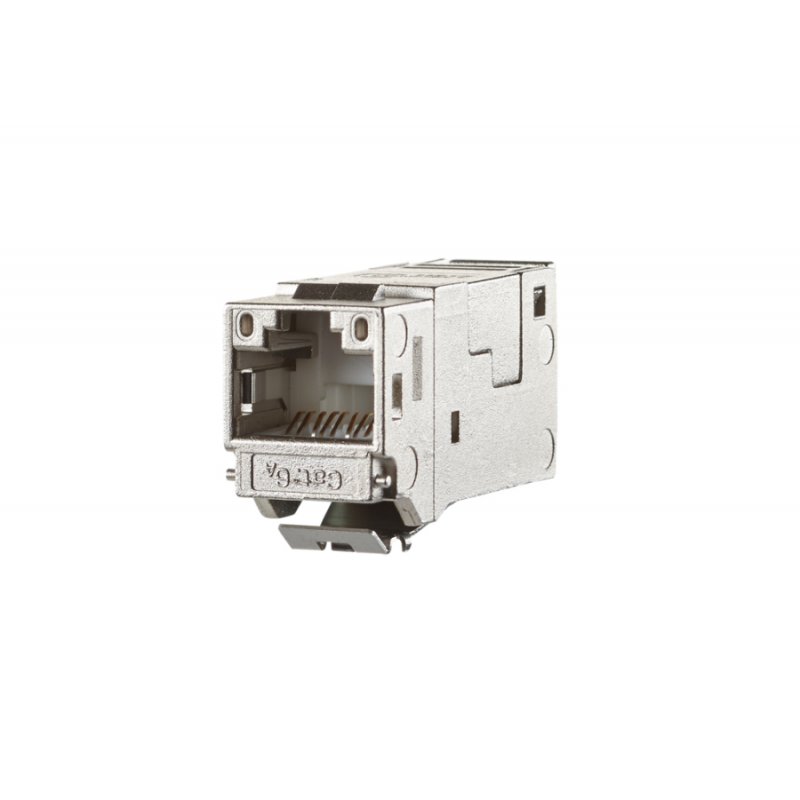

METZ CONNECT METZ CONNECT 130910KI keystone module
METZ CONNECT 130910KI, Flat, Metallic, RJ-45, Female, Cat6a
130910KI
4250184181002
€9.90
VAT included
Description
METZ CONNECT 130910KI. Construction type: Flat, Product colour: Metallic, Connector 1: RJ-45
- modular termination unit Cat.6A, RJ45
- component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT
- compliance with class EA to ISO/IEC 11801
- Ed.2.2:2011-06, DIN EN 50173-1:2011-09
- tested: Link up to 500 MHz
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- easy to install connection of 2 to 4 pair data cables
- AWG 26/1 to 22/1 (solid wire) and stranded wires with 7 copper conductors AWG 26/7 to 22/7 to insulation displacement connectors (IDC)
- marking of conductor assignment to T568A and T568B
- easy and fast insertion of wire pairs in E-DAT modul stuffer cap
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- METZ CONNECT
Specific References
- ean13
- 4250184181002
