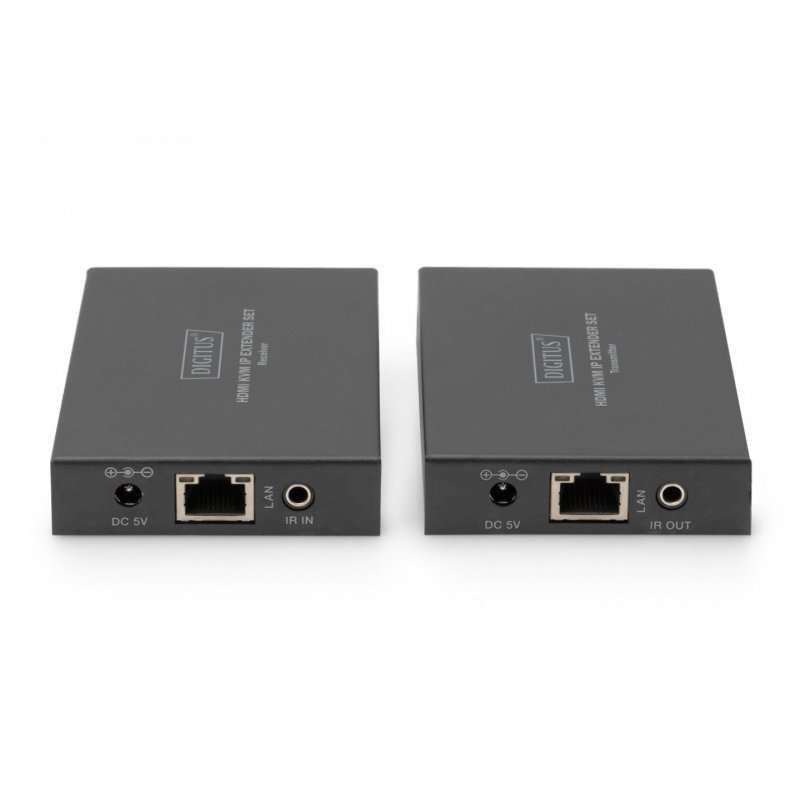

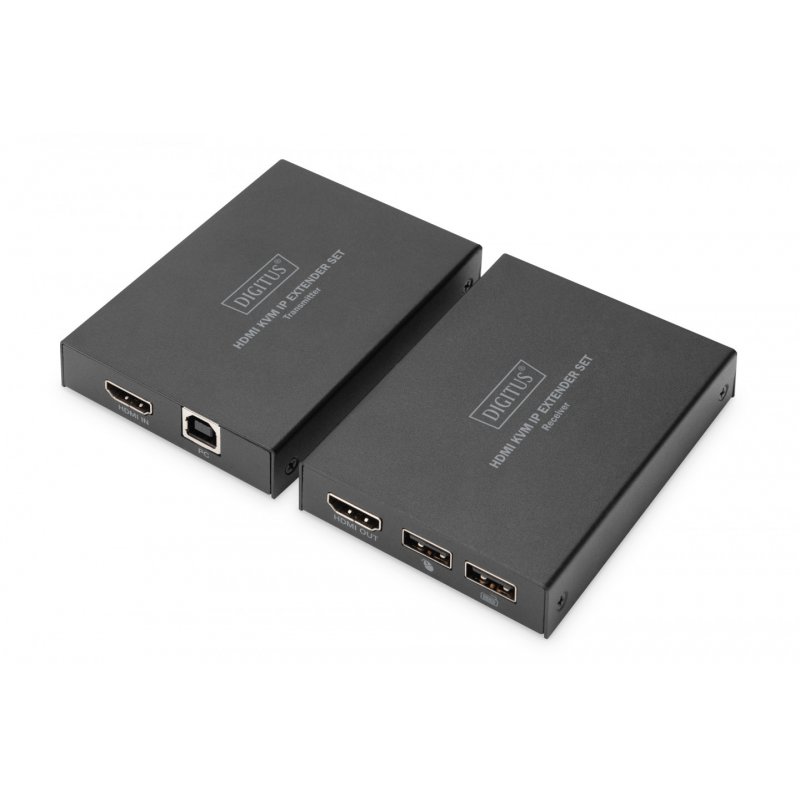

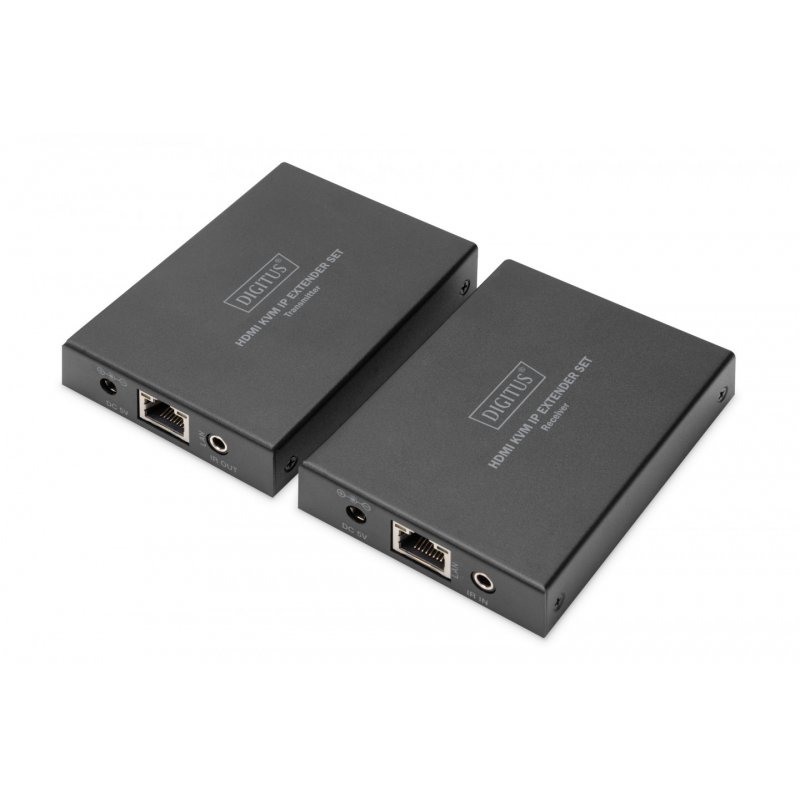

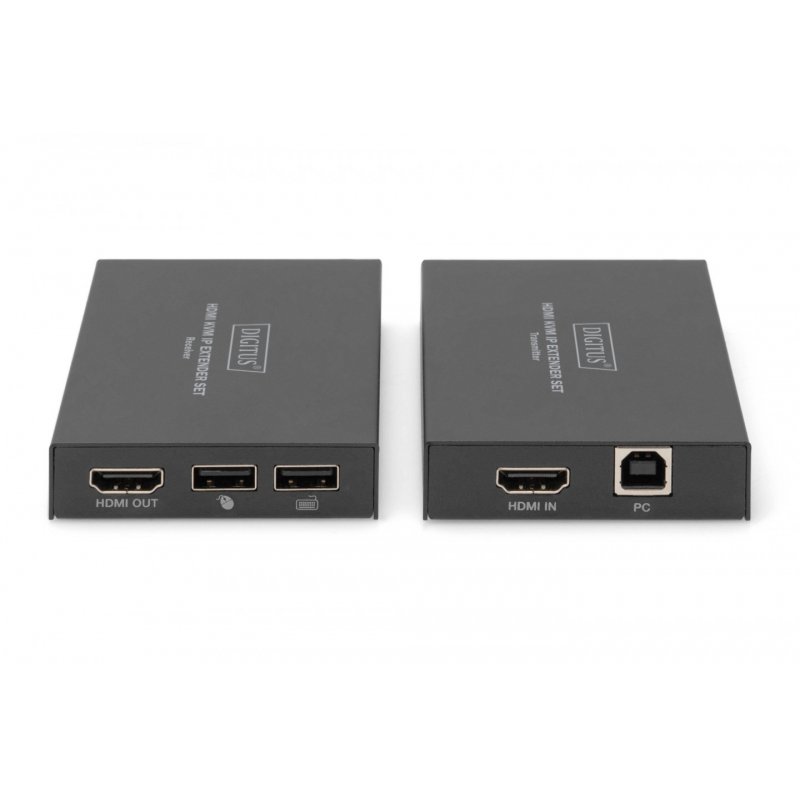

Digitus Digitus HDMI KVM IP Extender Set
Digitus HDMI KVM IP Extender Set, 1920 x 1200 pixels, AV transmitter & receiver, 150 m, Wired
DS-55507
4016032478935
€189.90
VAT included
Description
Digitus HDMI KVM IP Extender Set. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Maximum transfer distance: 150 m. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage: 12 V, Input current: 1 A, Power consumption (transmitter) (max): 1.4 W. Receiver dimensions (WxDxH): 67 x 91.5 x 17.5 mm, Receiver weight: 150 g, Transmitter dimensions (WxDxH): 67 x 91.5 x 17.5 mm. Quantity per pack: 1 pc(s), Package width: 185 mm, Package depth: 135 mm
- HDMI 1.4
- 6.75 Gbps video bandwidth
- Supports Full HD, 1920x1200/60 Hz, 4:4:4
- HDCP 1.4
- Supports CAT 5e, 6, 6A, 7, 8 network cable
- Maximum transmission distance: 150 m (point-to-point connection)
- Supports H.256 encoding/decoding
- USB 1.1
- Compression: H.265
- Transmitter unit connections:
- 1x HDMI input (1920x1200/60Hz) - Connection signal source
- 1x RJ45 output - Connection CAT transmission cable
- 1x USB-B input - Connection host PC for use of KVM functionality
- 1x IR output - Connection of IR transmitter
- 1x Power adapter input (DC 5V/1A) - Connection for external power adapter
- Receiver unit connections:
- 1x HDMI output (1920x1200/60Hz) - Connection output device
- 1x RJ45 input - Connection CAT transmission cable
- 2x USB-A (1.1) input - Connection of mouse and keyboard
- 1 x IR input - Connection of IR receiver
- 1x Power adapter input (DC 12V/1A) - Connection for external power adapter
- ESD protection
- Operating temperature: -10-50 °
- Power consumption: Transmitter approx. 1.4W, Receiver approx. 1.7W
- Housing: Metal
- Dimensions (1 unit): L 9.15 x W 6.7 x H 1.75 cm
- Weight: Transmitter 155 g, Receiver 150 g
- Color: Black
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Modèle
- DS-55507
- Weight
- 1
Specific References
- ean13
- 4016032478935
