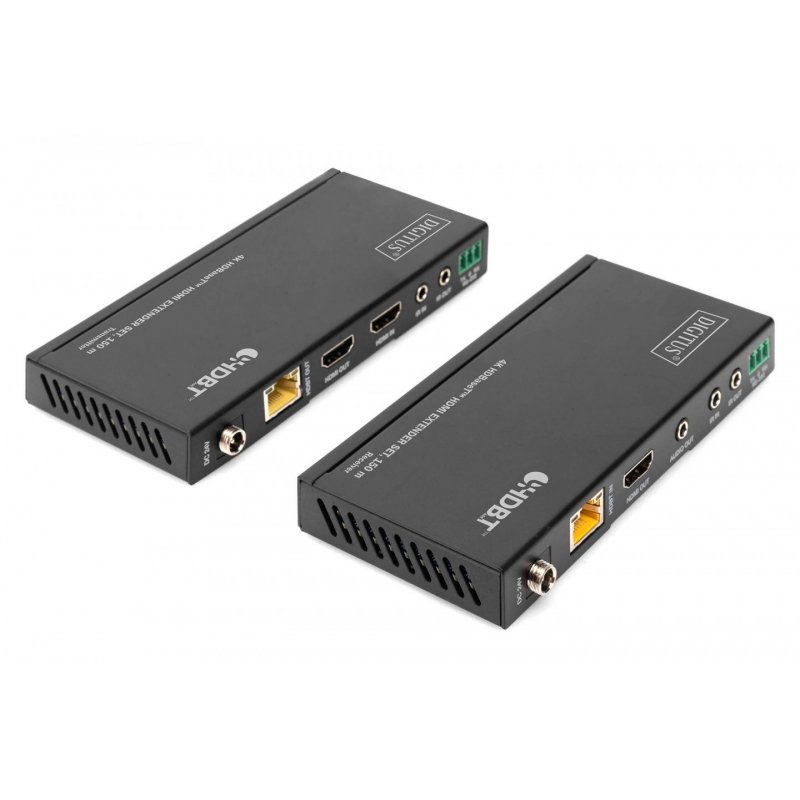

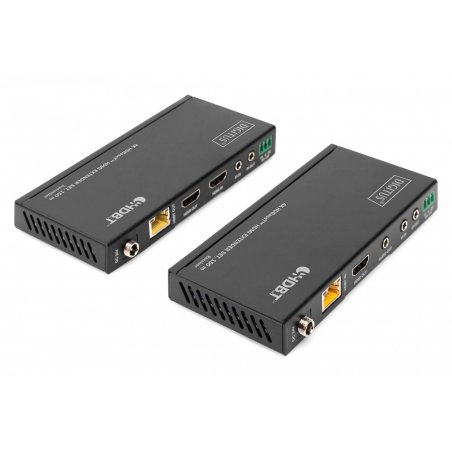

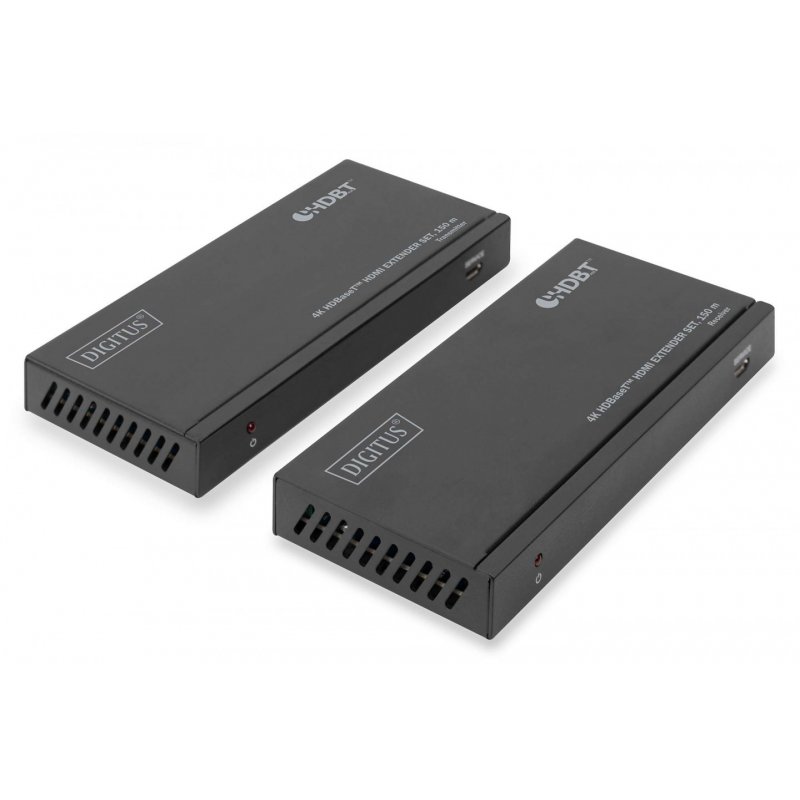

Digitus Digitus 4K HDBaseT™ HDMI Extender Set, 150 m
Digitus 4K HDBaseT™ HDMI Extender Set, 150 m, 3840 x 2160 pixels, AV transmitter & receiver, 150 m, Wired, Black, HDCP
DS-55508
4016032478942
€239.90
VAT included
Description
Digitus 4K HDBaseT™ HDMI Extender Set, 150 m. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat7, Cat8. Connectivity technology: Wired, USB connector type: Micro-USB, Serial interface type: RS-232. Operating voltage: 24 V, Input current: 1 A, Power consumption (typical): 9.36 W. Receiver dimensions (WxDxH): 65 x 140 x 18 mm, Receiver weight: 155 g, Transmitter dimensions (WxDxH): 65 x 140 x 18 mm. Quantity per pack: 1 pc(s), Package width: 245 mm, Package depth: 185 mm
- Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
- Supports 4K2K/60Hz (4:4:4)
- Maximum transmission distance (UHD 4K2K): 120 m
- Maximum transmission distance (Full HD 1080p): 150 m
- Video bandwidth: 18 Gbps
- Bi-directional IR transmission
- CEC pass-through

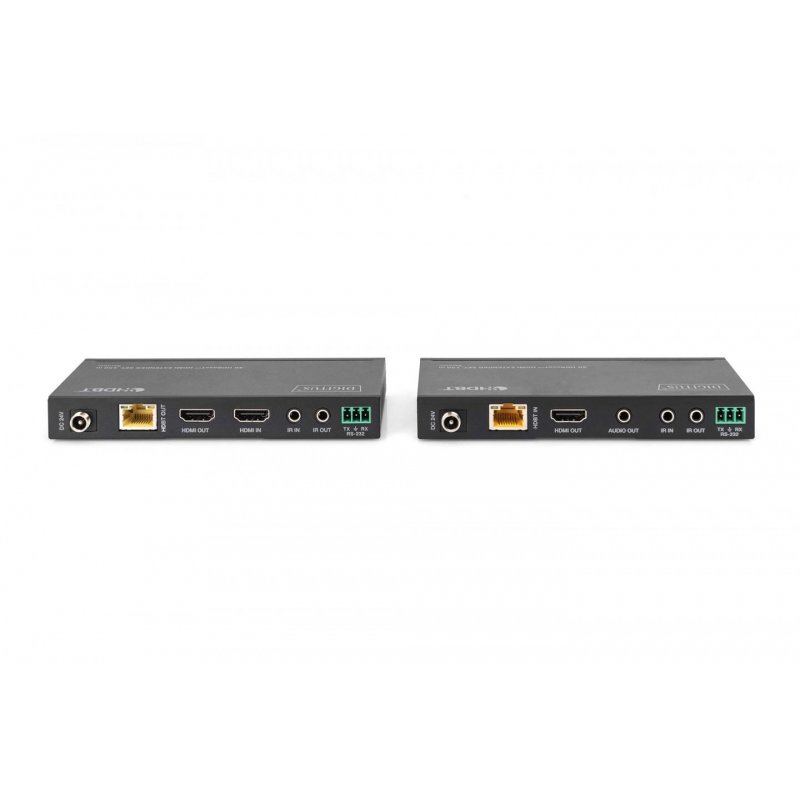

- Transmitter unit connections:
- 1x HDMI input (4K/60Hz) - Connection signal source
- 1x RJ45 (HDBaseT™) output - Connection CAT transmission cable
- 1x HDMI loop-out / output – Connection of local monitor (source device)
- 1x IR input to receive remote control signals
- 1x IR output for control of the source device
- 1x RS232 (3-pin Phoenix) for RS232 command transmission
- 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
- 1x Micro USB input - Service/remote maintenance update
- Receiver unit connections:
- 1x HDMI output (4K/60Hz) - Connection output device
- 1x RJ45 input (HDBaseT™) - Connection CAT transmission cable
- 1x 3.5 mm stereo audio output
- 1x IR output for control of the output display
- ESD protection
- Suitable for wall mounting
- Operating temperature: 0-40°
- Power consumption: approx. 9.36 W
- Housing: Metal
- Dimensions (1 unit): L 14 x W 6.5 x H 1.8 cm
- Weight: Transmitter 160 g, Receiver 155 g
- Color: Black
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Modèle
- DS-55508
- Weight
- 1
Specific References
- ean13
- 4016032478942
