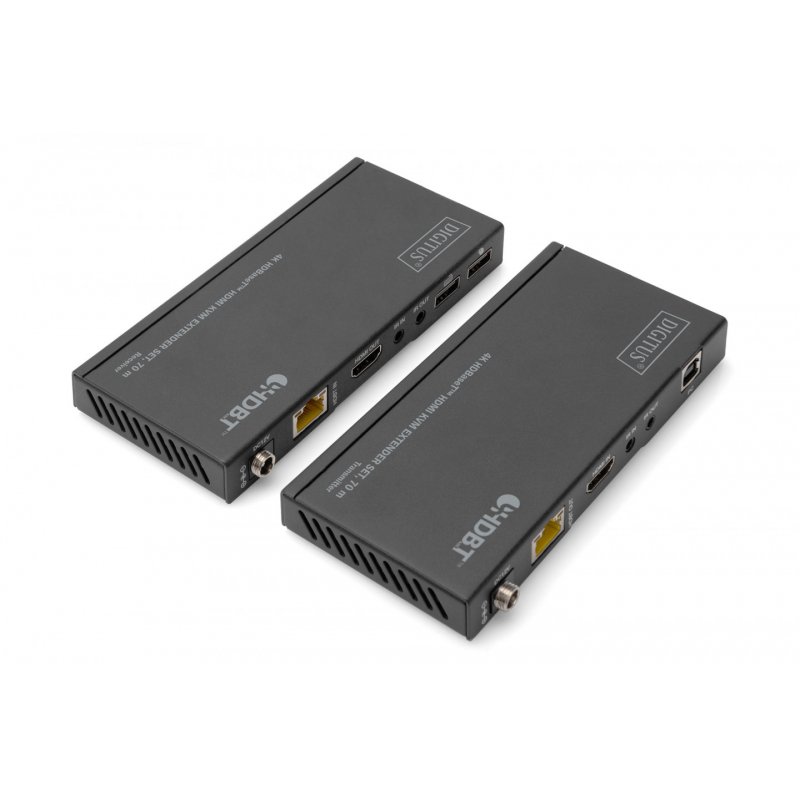

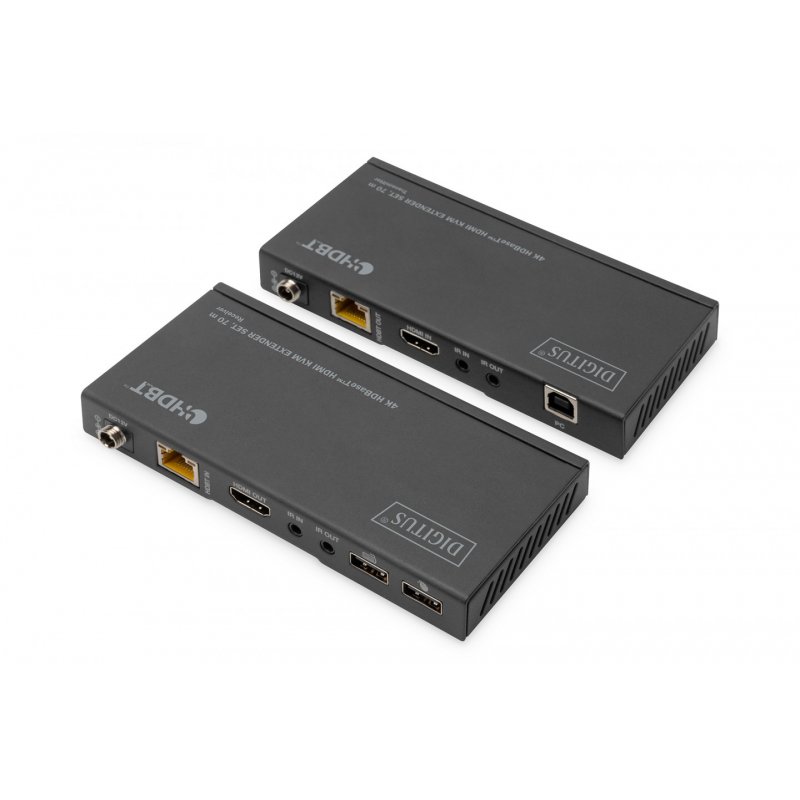

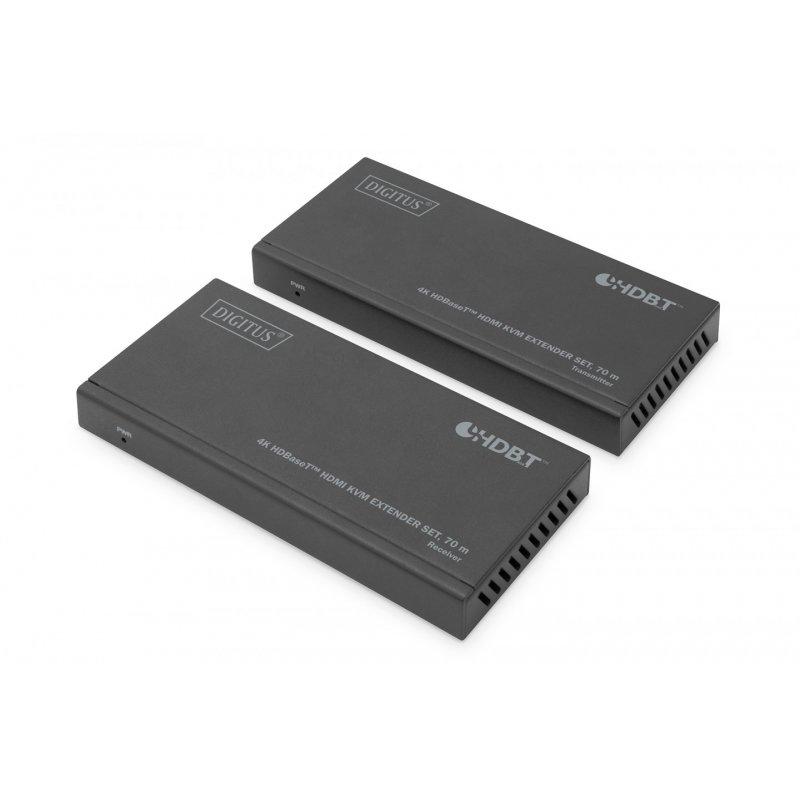

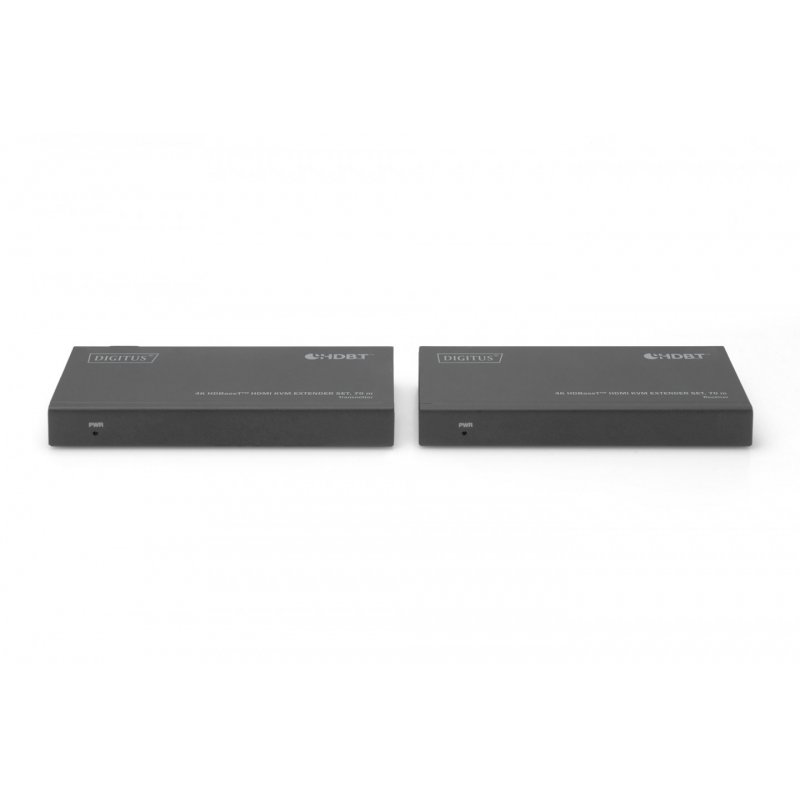

Digitus Digitus 4K HDBaseT™ HDMI KVM Extender Set, 70 m
Digitus 4K HDBaseT™ HDMI KVM Extender Set, 70 m, Transmitter & receiver, Wired, 70 m, Cat6, Cat6a, Cat7, Cat8, 3840 x 2160 pixels, Black
DS-55512
4016032480020
€239.90
VAT included
Description
Digitus 4K HDBaseT™ HDMI KVM Extender Set, 70 m. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 70 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 12 V, AC adapter output current: 1 A, Power consumption (transmitter) (max): 6.6 W. Transmitter width: 14 cm, Transmitter depth: 6.5 cm, Transmitter height: 1.8 cm
- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connection to mouse and keyboard
- PoC (Power over Cable) - Only the unit requires an external power adapter
- Supports CAT 5e, 6, 6A, 7, 8 network cable
- Video bandwidth: 10.2 Gbps
- Supports HDBaseT™ 1.0
- HDCP 2.2, 1.4
- IR transmission (bi-directional)
- Compact design for easy and flexible installation
- Sturdy metal housing

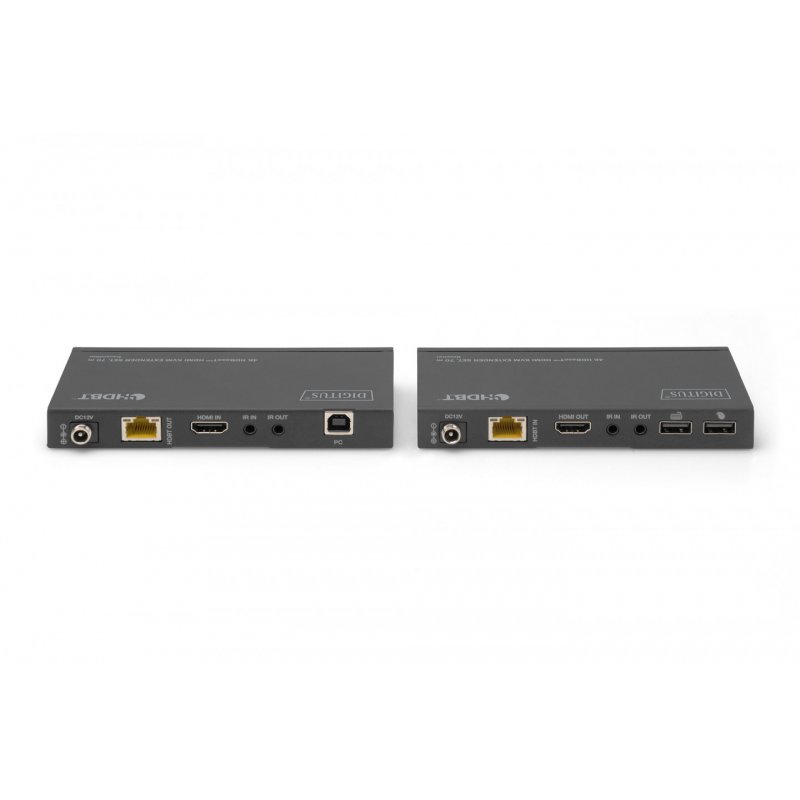

- Transmitter unit connections:
- 1x HDMI input (4K/30Hz) - Connection signal source
- 1x RJ45 output (HDBaseT™) - Connection CAT transmission cable
- 1x USB-B input - Connection host PC for use of KVM functionality
- 1x IR input to receive remote control signals
- 1x IR output for control of the source device
- 1x Power adapter input (DC 12V/1A), screw connector - Connection for external power adapter
- Receiver unit connections:
- 1x HDMI output (4K/30Hz) - Connection output device
- 1x RJ45 input (HDBaseT™) - Connection CAT transmission cable
- 2x USB-A (1.1) input - Connection of mouse and keyboard
- 1x IR output for control of the output display
- ESD protection
- Suitable for wall mounting
- Operating temperature: 0-40°
- Power consumption: approx. 6.6 W
- Housing: Metal
- Dimensions (1 unit): L 6.5 x W 14 x H 1.8 cm
- Weight: Transmitter 224 g, Receiver 227 g
- Color: Black
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Modèle
- DS-55512
- Weight
- 1
Specific References
- ean13
- 4016032480020
