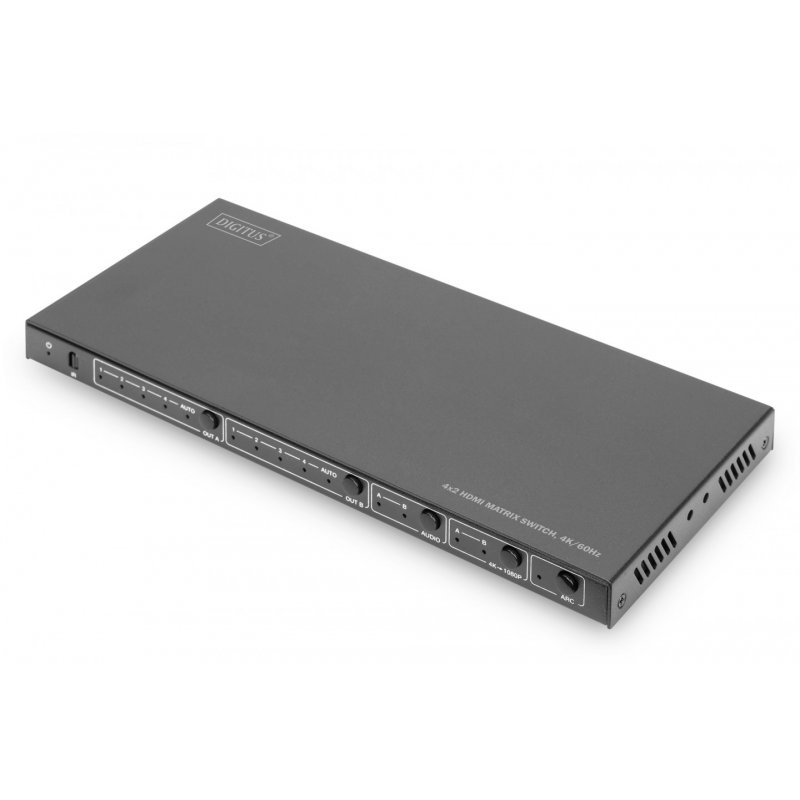

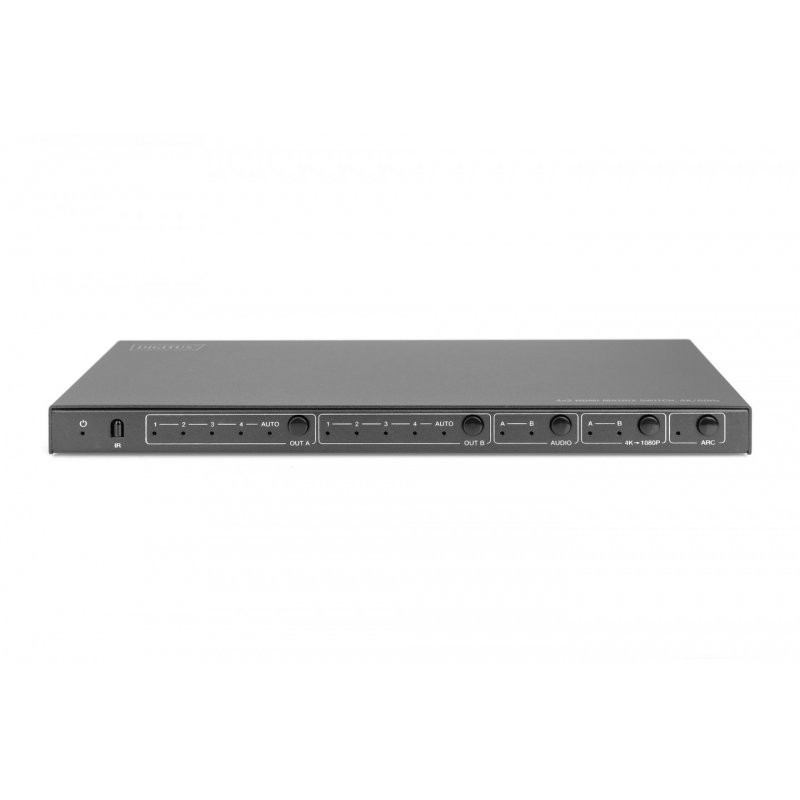

Digitus Digitus 4x2 HDMI Matrix Switch, 4K/60Hz
Digitus 4x2 HDMI Matrix Switch, 4K/60Hz, 3840 x 2160 pixels, 18 Gbit/s, 3840 x 2160 pixels, 1.4/2.2, Black, Metal
DS-55509
4016032478966
€124.90
VAT included
Description
Digitus 4x2 HDMI Matrix Switch, 4K/60Hz. Maximum resolution: 3840 x 2160 pixels, Bandwidth: 18 Gbit/s, Maximum resolution (HDMI): 3840 x 2160 pixels. Housing colour: Black, Housing material: Metal. USB connector type: Micro-USB, Headphone connectivity: 3.5 mm. Power consumption (max): 3.8 W, Output current: 1000 mA, Output voltage: 12 V. Country of origin: China
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps per channel
- HDCP 2.2 / 1.4
- HDMI 2.0
- EDID management
- ARC (Audio Return Channel)
- Supports downscaling of 4K contents on Full HD (1080p) displays
- Supports Dolby Vision, HDR10+, HLG
- Audio extractor (connection of audio output device via optical/analog connection)
- Inputs:
- 4x HDMI (4K/60Hz, 4:4:4, 18 Gbps)
- 1x Power adapter input (DC 12V/1A), screw connector - Connection for external power adapter
- 1x Micro USB input - Service/remote maintenance update
- Outputs:
- 2x HDMI (4K/60Hz, 4:4:4, 18 Gbps)
- 1x Optical S/PDIF / Toslink™
- 1x Analog jack 3.5 mm (Stereo)
- ESD protection
- Suitable for wall mounting
- Operating temperature: 0-40°
- Power consumption: approx. 3.8 W
- Housing: Metal
- Dimensions: L 10.5 x W 25.1 x H 2.0 cm
- Weight: 620g
- Color: Black
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
- Modèle
- DS-55509
- Weight
- 1
Specific References
- ean13
- 4016032478966
