Digitus Digitus 4K HDBaseT™ HDMI Extender Set, 70 m

Digitus 4K HDBaseT™ HDMI Extender Set, 70 m, 3840 x 2160 pixels, AV transmitter & receiver, 70 m, Wired, Black, HDCP
DS-55520
4016032483670
€203.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 4K HDBaseT™ HDMI Extender Set, 70 m. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat7, Cat8. Connectivity technology: Wired, Serial interface type: RS-232. Operating voltage (transmitter): 24 V, Operating voltage (receiver): 24 V, Power consumption (transmitter) (max): 20 W. Receiver dimensions (WxDxH): 115 x 65 x 17 mm, Receiver weight: 200 g, Transmitter dimensions (WxDxH): 115 x 65 x 17 mm. Quantity per pack: 2 pc(s), Package width: 215 mm, Package depth: 155 mm
  • Supports HDBaseT™ 1.0 via CAT6/7/8 cable up to 70 m
  • Supports 4K2K/30Hz (24 bit)
  • Maximum transmission distance (UHD 4K/30Hz, CAT6 or higher): 40 m
  • Maximum transmission distance (Full HD, 1080p, CAT6 or higher): 70 m
  • PoC (Power over Cable) - Only the unit requires an external power adapter
  • Bi-directional IR signal transmission
  • Bi-directional RS232 signal transmission
  • HDCP 2.2 / 1.4
  • Video bandwidth: 10.2 Gbps

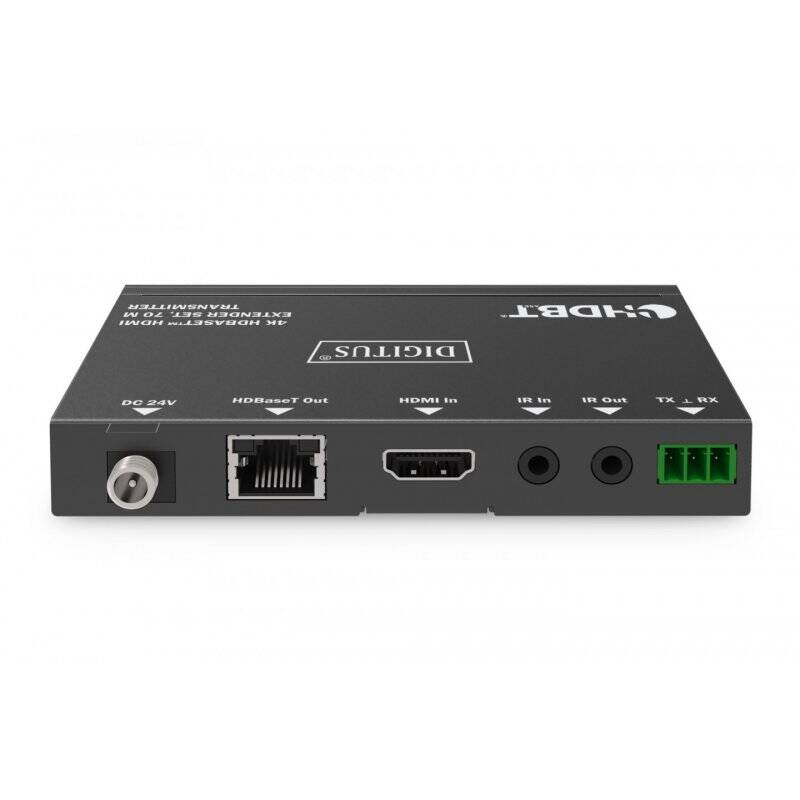

  • Transmitter unit connections:
  • 1x HDMI input (4K/30Hz) - Connection signal source
  • 1x RJ45 (HDBaseT™) output - Connection CAT transmission cable
  • 1x IR input to receive remote control signals
  • 1x IR output for control of the source device
  • 1x RS232 (3-pin Phoenix) for RS232 command transmission
  • 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
  • Receiver unit connections:
  • 1x HDMI output (4K/30Hz) - Connection output device
  • 1x RJ45 input (HDBaseT™) - Connection CAT transmission cable
  • Suitable for wall mounting
  • ESD protection
  • Operating temperature: 0-40°
  • Power consumption: approx. 20W max.
  • Housing: Metal
  • Dimensions (1 unit): L 6.5 x W 11.5 x H 1.7 cm
  • Weight (1 unit): 200 g
  • Color: black

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DS-55520
Weight
1

Specific References

ean13
4016032483670
