Digitus Digitus 4K HDBaseT™ HDMI KVM Extender Set, 150 m

Digitus 4K HDBaseT™ HDMI KVM Extender Set, 150 m, 3840 x 2160 pixels, Transmitter & receiver, 150 m, Wired, Black, HDCP
DS-55522
4016032483694
€299.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 4K HDBaseT™ HDMI KVM Extender Set, 150 m. Type: Transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6, Cat7, Cat8. Connectivity technology: Wired, HDMI version: 2.0b, USB connector type: USB Type-A, USB Type-B. Power source type: DC, Operating voltage (transmitter): 24 V, Operating voltage (receiver): 24 V. Receiver dimensions (WxDxH): 140 x 65 x 18 mm, Receiver weight: 246 g, Transmitter dimensions (WxDxH): 140 x 65 x 18 mm. Package width: 245 mm, Package depth: 185 mm, Package height: 75 mm
  • Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
  • Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
  • Transmission distance - UHD (4K/60Hz): 120 m (max.)
  • Supports 4K2K/60Hz (4:4:4)
  • Video bandwidth: 18 Gbps
  • HDMI 2.0b / HDCP 2.2
  • USB 1.1
  • HDR, HDR10, HDR10+, DolbyVision, HLG
  • PoC (Power over Cable) - Only the unit requires an external power adapter
  • Connection of mouse and keyboard on receiver in order to control the signal source conveniently from the output display
  • EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
  • Bi-directional IR signal transmission

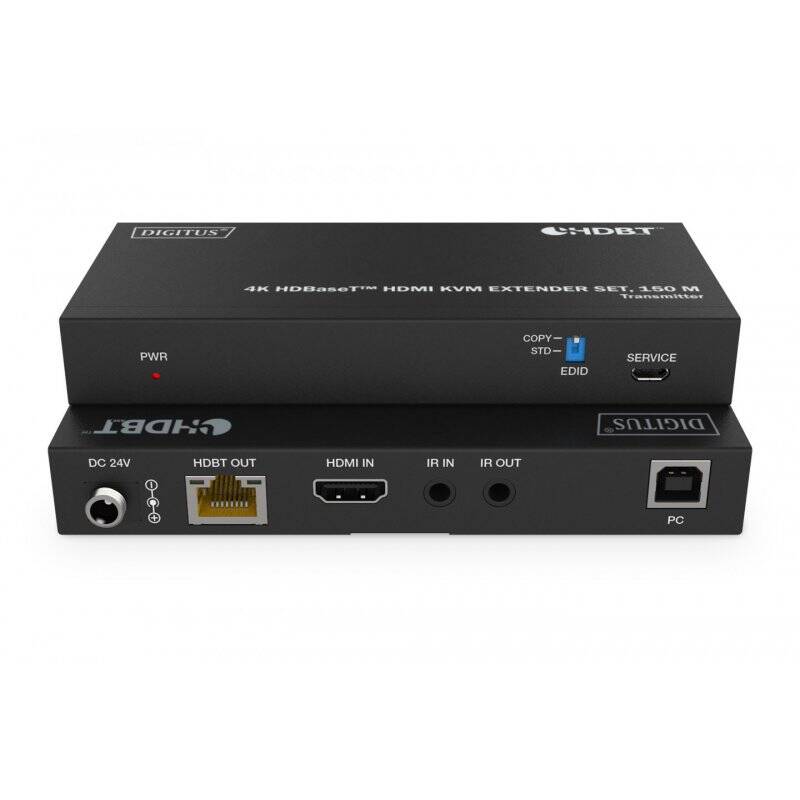

  • Transmitter unit connections:
  • 1x HDMI input (4K/60Hz) - Connection signal source
  • 1x RJ45 (HDBaseT™) output - Connection CAT transmission cable
  • 1x IR input to receive remote control signals
  • 1x IR output for control of the source device
  • 1x USB-B (1.1) - Connection of PC (signal source) for use of KVM function
  • 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
  • 1x Micro USB input - Service/remote maintenance update
  • 1x EDID changeover switch

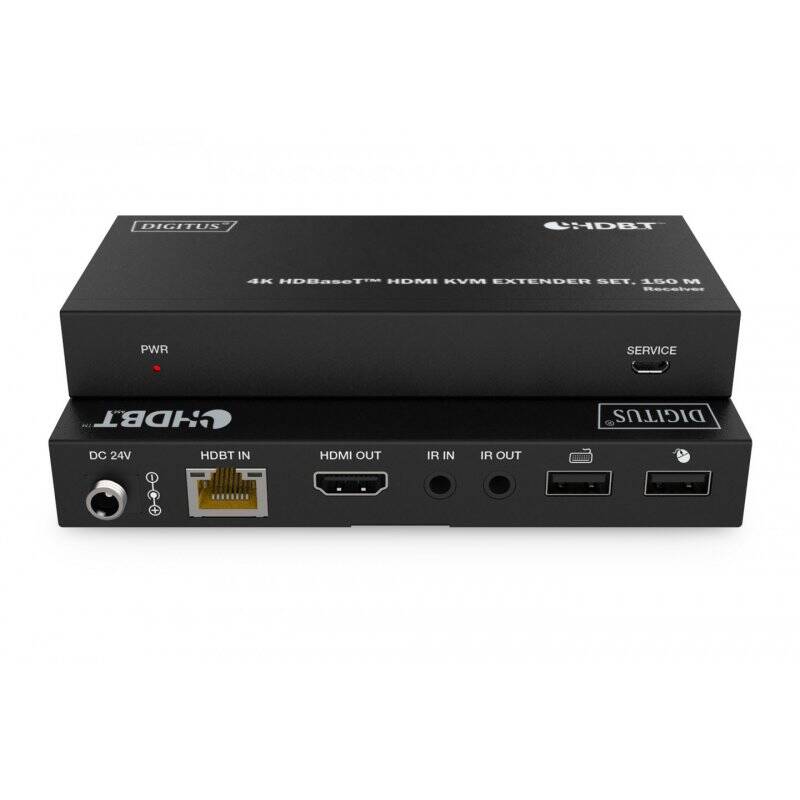

  • Receiver unit connections:
  • 1x HDMI output (4K/60Hz) - Connection output device
  • 1x RJ45 input - Connection CAT transmission cable
  • 2x USB-A (1.1) - Connection of mouse and keyboard
  • Suitable for wall mounting
  • ESD protection
  • Operating temperature: 0-40°
  • Power consumption: approx. 10W
  • Housing: Metal
  • Dimensions (1 unit): L 6.5 x W 14 x H 1.8 cm
  • Weight (1 unit): 246 g
  • Color: black

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DS-55522
Weight
1

Specific References

ean13
4016032483694

Comments

No customer reviews for the moment.
