Digitus Digitus HDMI HDBaseT™ 3.0 Extender Set, 100 m

Digitus HDMI HDBaseT™ 3.0 Extender Set, 100 m, Transmitter & receiver, Wired, 100 m, Cat6a, Black, Metal
DS-55523
4016032483700
€759.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus HDMI HDBaseT™ 3.0 Extender Set, 100 m. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 24 V, AC adapter output current: 1 A. Transmitter width: 10.2 cm, Transmitter depth: 17 cm, Transmitter height: 2.2 cm
  • HDBaseT™ 3.0 technology
  • Supports eARC/ARC function (the sound is returned to the HDMI IN connection, HDMI OUT connection (only audio) and SPDIF OUT connection of the transmitter)
  • Bi-directional IR transmission
  • Bi-directional PoC (Power over Cable) transmission (24V) - Only the unit requires an external power adapter

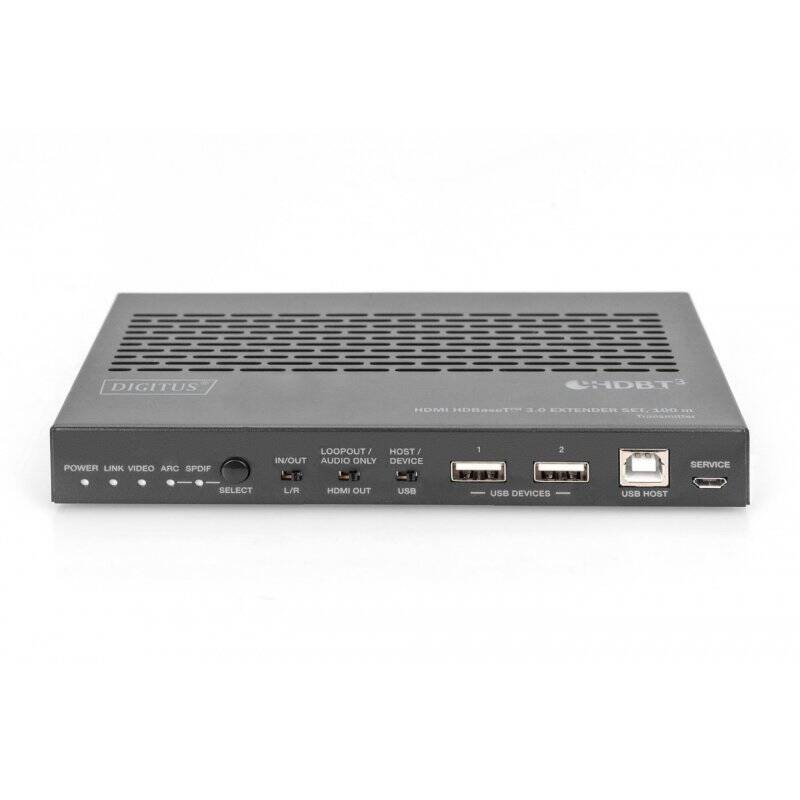

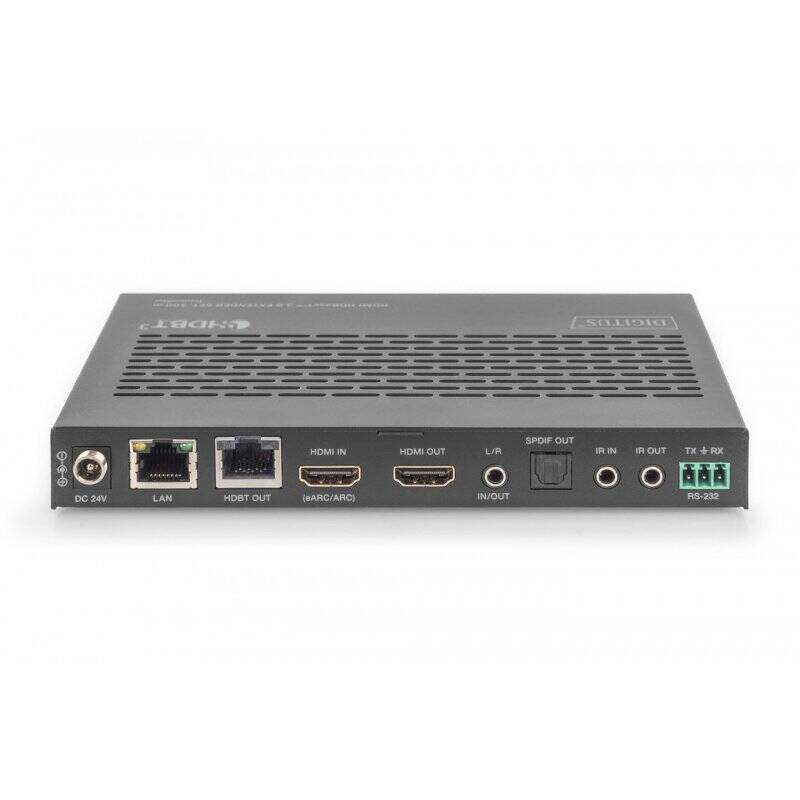

  • Transmitter unit connections:
  • 1x HDMI input (4K/60Hz) with eARC/ARC - Connection for signal source, 1x HDMI output (loop out) - AV output for local TV or only audio output
  • 2x USB-A 2.0 for KVM function (keyboard, mouse, webcam), connection of USB data storage media, etc.
  • 1x USB-B input - Connection host PC for use of KVM functionality
  • 1x RJ45 output (HDBaseT™ 3.0) - Connection CAT transmission cable
  • 1x RJ45 (Gigabit Ethernet) network connection
  • 1x RS232 (3-pin Phoenix) for RS232 command transmission
  • 1x Toslink™ (S/PDIF) output
  • 1x 3.5 mm audio (L/R, input/output)
  • 1x IR input, 1x IR output
  • 1x Power adapter input (DC 24V/1A), screw connector - Connection for external power adapter
  • 1x Micro USB input - Service/remote maintenance update
  • 3x Changeover switch, 1x selection key
  • 5x Status LED

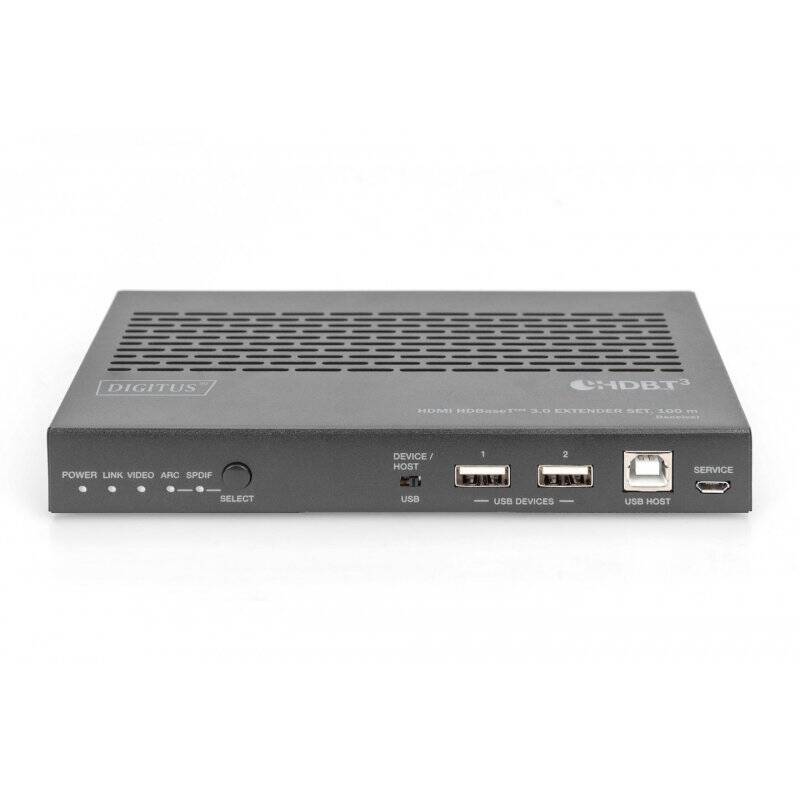

  • Receiver unit connections:
  • 1x HDMI output (eARC, ARC) - AV output for local TV with eARC, ARC
  • 1x RJ45 input (HDBaseT™ 3.0) - Connection CAT transmission cable
  • 1x Toslink™ (SPDIF) input
  • 1x 3.5 mm audio (L/R, output)
  • 1x Changeover switch, 1x Selection key
  • ESD protection
  • Suitable for wall mounting
  • Operating temperature: 0-40°
  • Housing: Metal
  • Dimensions (1 unit): L 17 x W 10.2 x H 2.2 cm
  • Weight: Transmitter 425 g, receiver 437 g
  • Color: Black

Data sheet

Colour
Black
Garantie
2 ans
Modèle
DS-55523
Weight
1

Specific References

ean13
4016032483700
