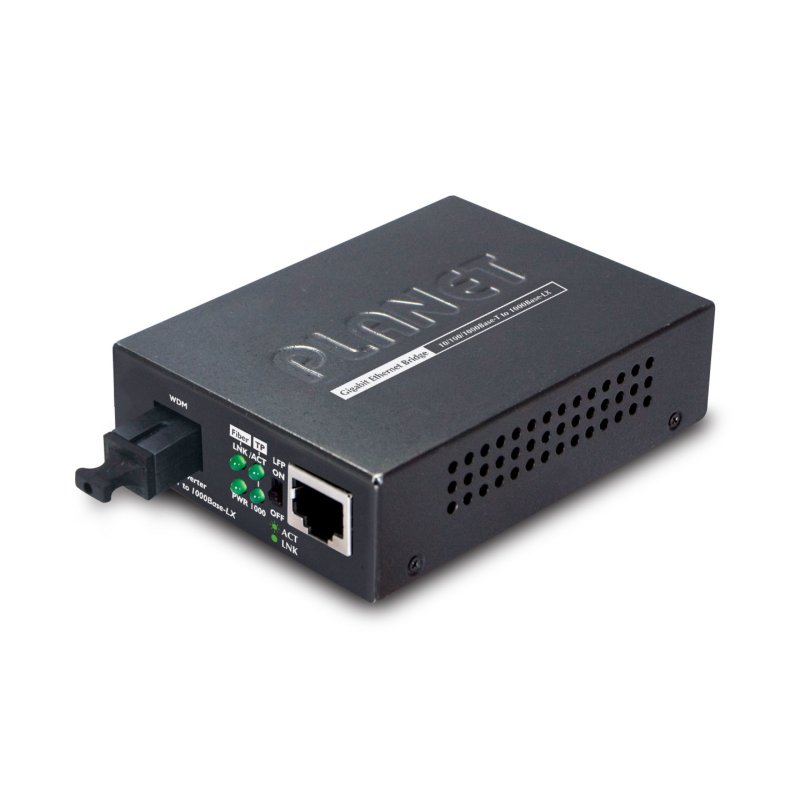

PLANET PLANET GT-806A15 network media converter 2000 Mbit/s 1310 nm Black
PLANET GT-806A15, 2000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, 10BASE-T, 100BASE-T, 1000BASE-T, 1000BASE‑LX
4711213686894
4711213686894
€129.90
VAT included
Description
PLANET GT-806A15. Maximum data transfer rate: 2000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 15000 m, Wavelength: 1310 nm. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 2 A, Power consumption (typical): 4.6 W
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
- TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
- 1000BASE-LX WDM interface is for up to 15km (single-mode fiber 9μm/125μm) on GT-806A15/GT-806B15
- 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
- Layer 2 key features
- IEEE 802.3x flow control for full duplex and back pressure for half duplex eliminate the loss of packets
- Supports auto MDI/MDI-X function
- Store-and-Forward mechanism
- Non-blocking full wire-speed forwarding rate
- Media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX
- Fiber media allows
- Multi-mode fiber using SC/LC/WDM connector
- Single-mode fiber using SC/LC/WDM connector
- Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
- Wall-mountable design
- LED indicators for easy network diagnostics
- Provides DIP switch for LFP function (Disable/Enable) setting
- 9K jumbo frame supported

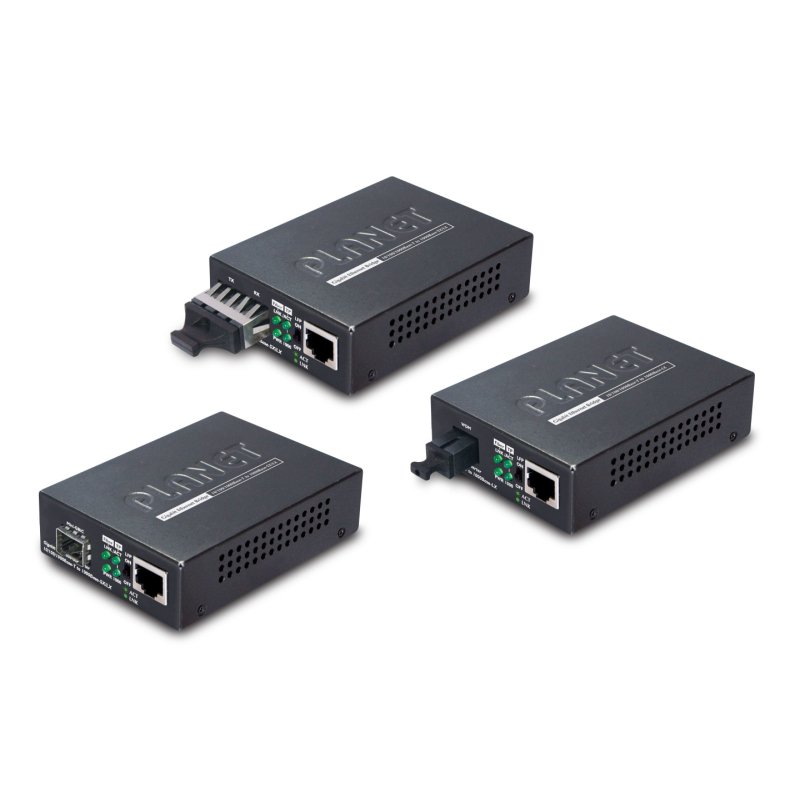

- Choice of fiber connectors from SC, LC and WDM; multi-mode/single-mode fiber for 1000BASE SFP interface
- Compact in size, easy installation
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET
Specific References
- ean13
- 4711213686894
