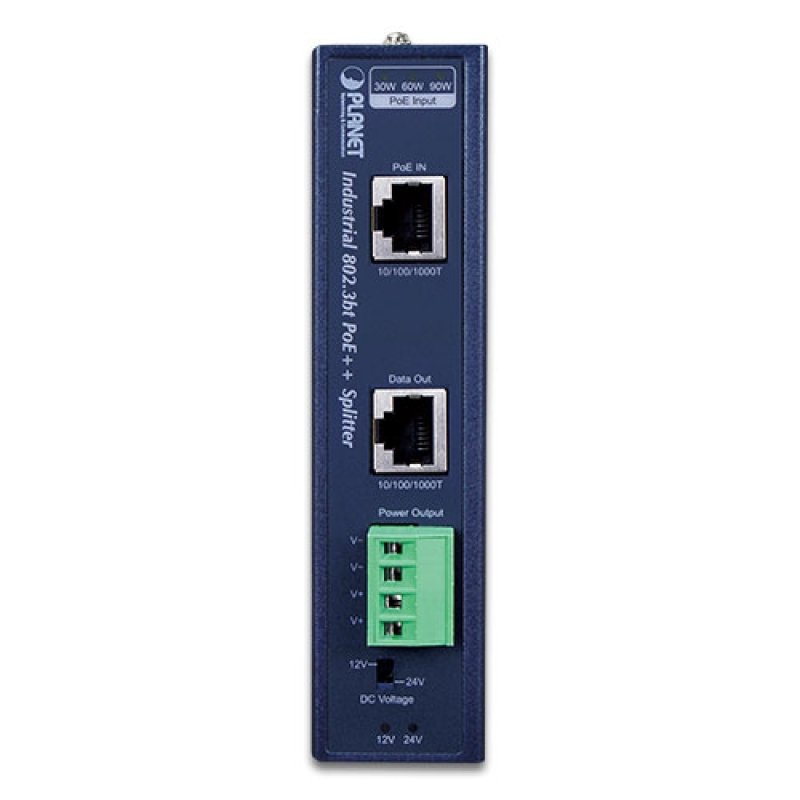

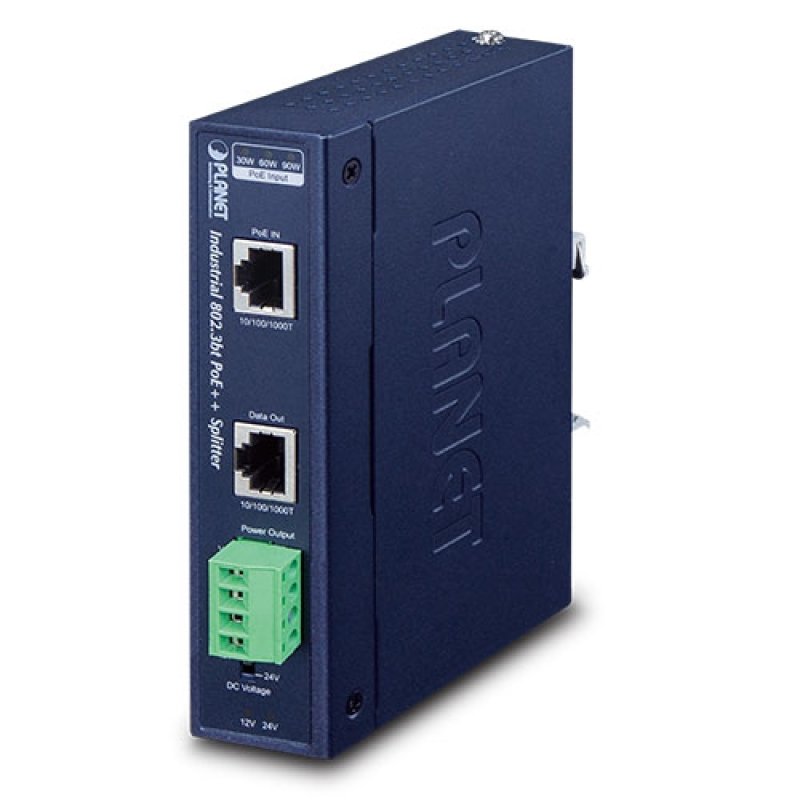

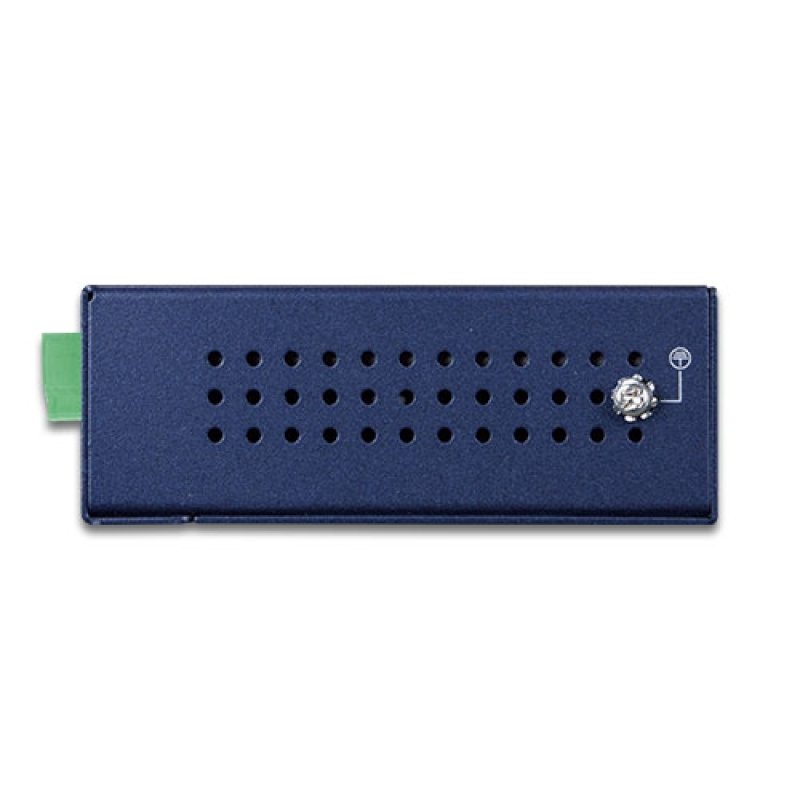

PLANET PLANET IPOE-173S network splitter Power over Ethernet (PoE) Blue
PLANET IPOE-173S, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, 10/100/1000Base-T(X), Cat5/Cat5e/Cat6, Blue, Metal, IP30
4711605284844
4711605284844
€244.90
VAT included
Description
PLANET IPOE-173S. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, Cabling technology: 10/100/1000Base-T(X), Cable standard: Cat5/Cat5e/Cat6. Certification: FCC 15 A, CE. Width: 32 mm, Depth: 87.8 mm, Height: 135 mm. Quantity per pack: 1 pc(s). Input voltage: 48 - 56 V, DC output voltage: 12V, 24V, Output current (12V): 5.8 A
- Interface
- 2 RJ45 interfaces
- 1-port Data Power input
- 1-port Data output
- 2 DC output (4-pin terminal block)
- 1 12V/24V DC DIP switch
- Power over Ethernet
- Complies with 802.3bt Power over Ethernet end-span / mid-span PSE
- Compatible with IEEE 802.3bt PoE
- Backward compatible with 802.3at PoE with up to 30-watt power output
- Supports PoE input power up to 70 watts
- Splits the PoE power over RJ45 Ethernet cable into 12V/19V/24V DC output
- Remote power feeding up to 100 meters
- Hardware
- IP30 slim metal case
- DIN-rail or wall mount design
- Supports high surge/ESD protection
- Minus 40 to 75 degrees C operating temperature
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET
Specific References
- ean13
- 4711605284844
