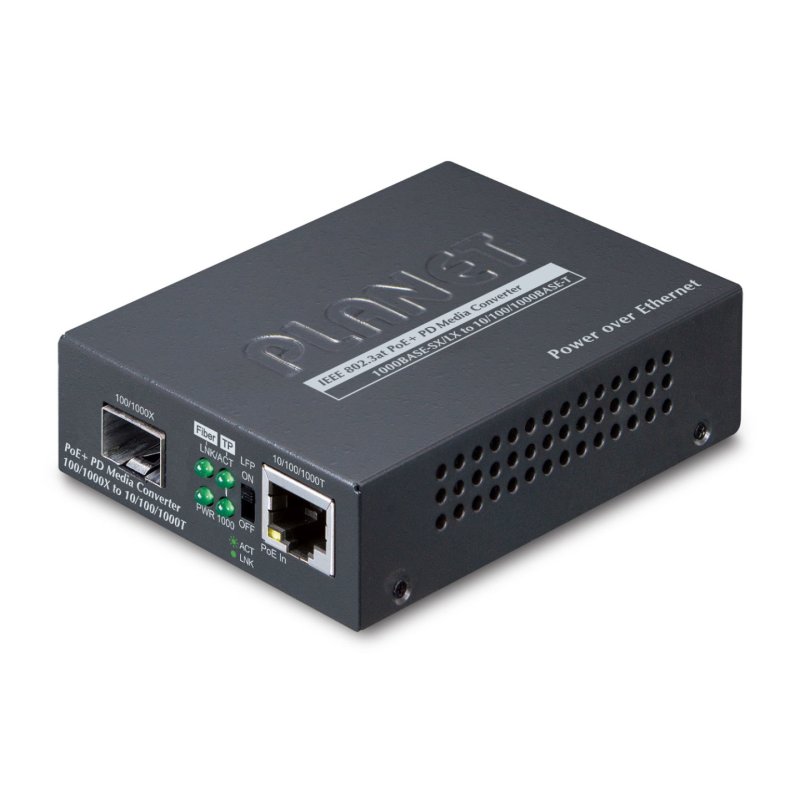

PLANET PLANET 802.3at PoE PD network media converter 2000 Mbit/s Black
PLANET 802.3at PoE PD, 2000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u,..., Gigabit Ethernet, 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX, Black, SFP
4711605286367
4711605286367
€110.90
VAT included
Description
PLANET 802.3at PoE PD. Maximum data transfer rate: 2000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u,..., Ethernet interface type: Gigabit Ethernet. Product colour: Black. Fiber optic connector: SFP, Connectivity technology: Wired. Width: 70 mm, Depth: 94 mm, Height: 26 mm. Certification: FCC Part 15 Class A, CE
- Physical Port
- Media conversion between 10/100/1000BASE-T and 100BASE-FX/1000BASE-SX/LX
- TP Port supports 802.3af/at/bt PoE 48V-54V DC in-line-power
- TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
- Fiber media allows
- Multi-mode fiber using LC connector
- Single-mode fiber using LC connector
- 100BASE-FX/1000BASE-SX/LX: 50/125μm/62.5/125μm multi-mode fiber cable or 9/125μm single-mode cable provides a distance depending on SFP module
- 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
- Power over Ethernet
- Compatible with IEEE 802.3bt Power over Ethernet plus plus end-span mid-span PSE
- Compatible with IEEE 802.3at Power over Ethernet plus end-span/mid-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Standard
- Complies with IEEE 802.3 10BASE-T
- Complies with IEEE 802.3u 100BASE-TX/100BASE-FX
- Complies with IEEE 802.3ab 1000BASE-T
- Complies with IEEE 802.3z 1000BASE-SX/LX
- IEEE 802.3x full-duplex and half-duplex back pressure flow control to eliminate packet loss
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet Plus
- IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3)
- IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4)
- Layer 2 Features
- Store-and-Forward mechanism
- Non-blocking full wire-speed forwarding rate
- IEEE 802.1Q Tag VLAN transparent, multicast pass through
- 9K jumbo frame
- IEEE 802.3x full-duplex and half-duplex back pressure flow control to eliminate the loss of packets
- Mechanical
- DIP switch for LFP function (Disable/Enable) setting
- LED indicators for easy network diagnostics
- Wall mounting or DIN-rail installation
- Compact in size, easy installation
- Two power input designs (IEEE 802.3af/at/bt 48V~54V DC in-line power or optional 5V DC input)
- Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET
Specific References
- ean13
- 4711605286367
