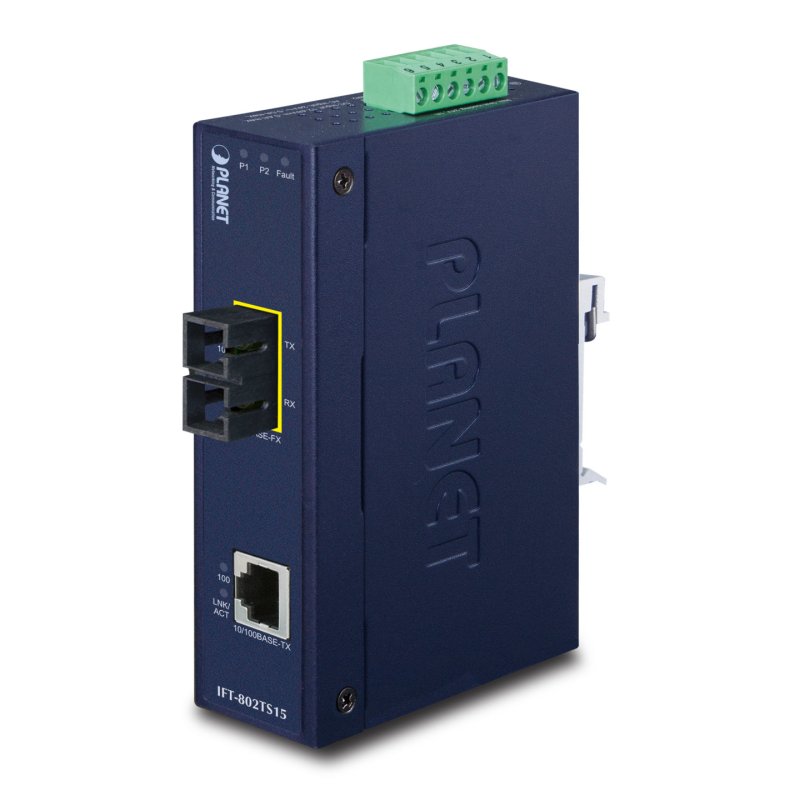

PLANET PLANET IFT-802TS15 network media converter 100 Mbit/s 1310 nm Single-mode Blue

PLANET IFT-802TS15, 100 Mbit/s, 10Base-T, 100Base-TX, 100Base-FX, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Fast Ethernet, 10,100 Mbit/s
4711213687563
4711213687563
€209.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IFT-802TS15. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 15000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Blue, Housing material: Metal, International Protection (IP) code: IP30. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 12 - 48 V, Power consumption (typical): 3 W
  • Interface
  • 1-port 10/100Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function
  • 1 100Base-FX SC interface, providing long distance for 15km on IFT-802TS15
  • Industrial Conformance
  • 12V to 48V DC, redundant power with polarity reverse protect function
  • Minus 40 to 75 degrees C operating temperature
  • IP30 metal case
  • Relay alarm for port breakdown
  • Supports 6KV DC Ethernet ESD protection
  • Supports 6KV DC EFT protection for power line
  • Free Fall, Shock and Vibration Stability
  • DIN-rail and wall-mountable hardware design
  • Layer 2 Features
  • Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
  • Auto-MDI / MDI-X detection and auto negotiation in half-duplex / full-duplex modes for 10 /100Base-TX RJ-45 port
  • Store-and-Forward Switching Architecture
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Supports packet size of up to 1522bytes
  • CSMA/CD Protocol
  • Automatic source address learning and aging

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET

Specific References

ean13
4711213687563
