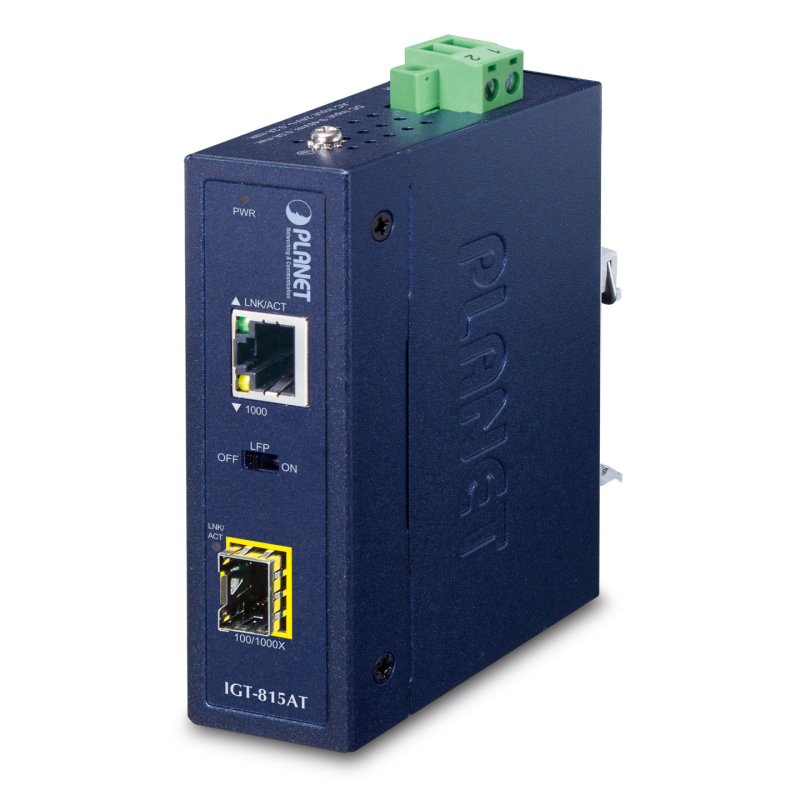

PLANET PLANET IGT-815AT network media converter 1000 Mbit/s Multi-mode, Single-mode Blue

PLANET IGT-815AT, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-SX, 1000Base-T, 1000Base-BX, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s
4711605284363
4711605284363
€129.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IGT-815AT. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-SX, 1000Base-T, Converter output interface: 1000Base-BX, 1000Base-LX, 1000Base-SX. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode, Single-mode. LED indicators: Power, System, Product colour: Blue, Housing material: Metal. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 9 - 48 V, Input current: 24 A
  • Physical Port
  • 1-port 10/100/1000BASE-T RJ45
  • One SFP port, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
  • Layer 2 Features
  • Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • LFP (Link Fault Passthrough) and FEF (Far End Fault) function support
  • Hardware
  • DIP switch: LFP (Link Fault Passthrough) and FEF (Far End Fault) mode selection
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 9 to 48V DC power with reverse polarity protection (AC 24V power adapter acceptable)
  • Connective removable terminal block
  • Supports 6000 VDC Ethernet ESD protection
  • Supports -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET

Specific References

ean13
4711605284363
