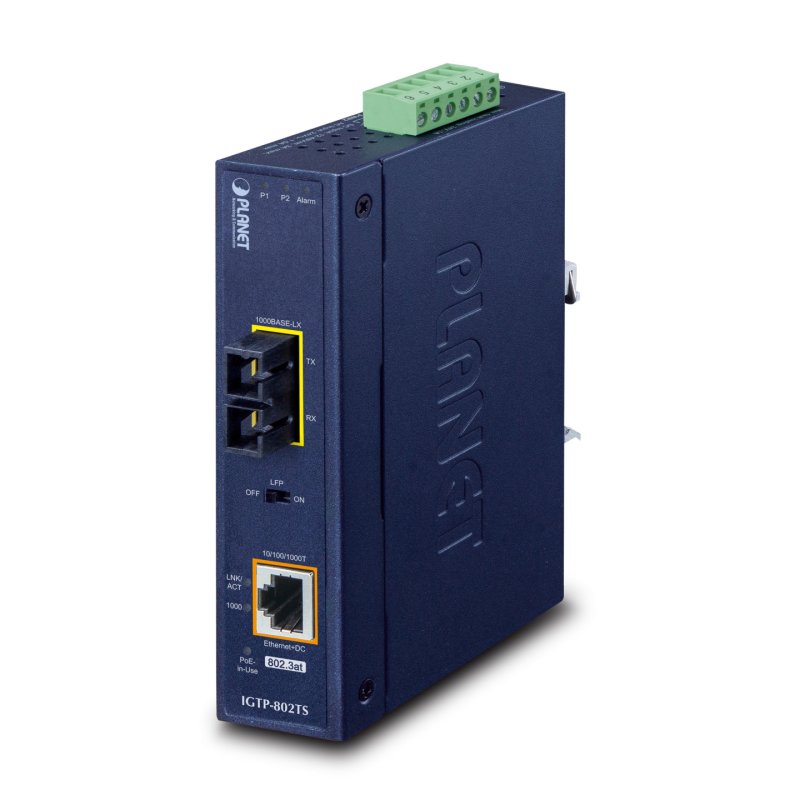

PLANET PLANET IP30 Industrial 10/100/1000BAS network media converter 1000 Mbit/s Blue

PLANET IP30 Industrial 10/100/1000BAS, 1000 Mbit/s, 20000 m, -9 dBmW, -3 dBmW, -23 dBmW, Blue
4711213686962
4711213686962
€230.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IP30 Industrial 10/100/1000BAS. Maximum data transfer rate: 1000 Mbit/s. Maximum transfer distance: 20000 m, Tx power (min): -9 dBmW, Tx power (max): -3 dBmW. Product colour: Blue, Housing material: Metal, International Protection (IP) code: IP30. Fiber optic connector: SC. Width: 135 mm, Depth: 87 mm, Height: 32 mm
  • Physical Port
  • 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af /802.3at PoE Injector
  • 1 1000BASE-SX/LX SC Fiber interface (IGTP-802T/IGTP-802TS)
  • 1 SFP port, supporting 1000BASE-X and 100BASE-FX transceiver dual mode (IGTP-805AT)
  • Power over Ethernet
  • Complies with IEEE 802.3at/af PoE Plus end-span PSE
  • 1 IEEE 802.3at/af device powered
  • Supports PoE Power up to 30.8 watts for PoE port
  • Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
  • Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
  • Remote power feeding up to 100m
  • IEEE 802.3at/af splitter devices compatible
  • Layer 2 Features
  • Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Hardware
  • LED Indicators
  • –System: Power 1, Power 2 (Green) and Alarm LED (Red)
  • –Fiber port: LNK/ACT (Green)
  • –10/100/1000BASE-T port: LNK/ACT, 1000 LNK/ACT (Green). PoE: Power-in-use (Amber)
  • DIP switch: LFP (Link Fault Passthrough) and FEF (Far End Fault) mode selection
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail or wall-mount design
  • 12 ~ 48V DC/24V AC redundant power with reverse polarity protection and connective removable terminal block for master and slave power
  • Supports 6000 VDC Ethernet ESD protection
  • Supports -40 to 75 degrees C operating temperature

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET

Specific References

ean13
4711213686962
