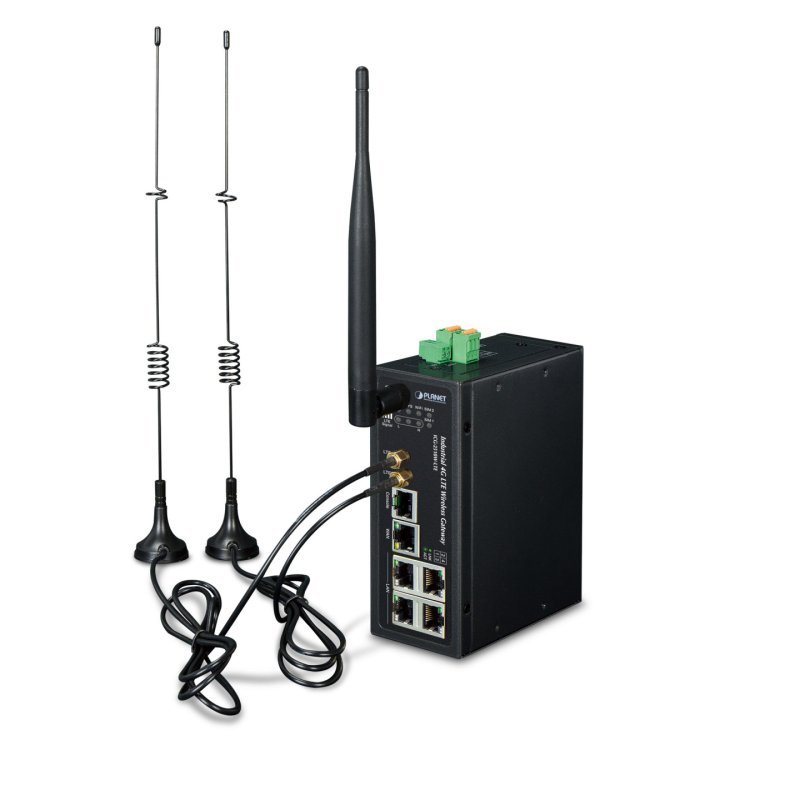

PLANET PLANET Industrial 4G LTE Cellular WL gateway/controller

PLANET Industrial 4G LTE Cellular WL, Black, DIN-rail, IP30, External, SMA, MiniSIM
4711605284684
4711605284684
€639.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET Industrial 4G LTE Cellular WL. Product colour: Black, Mounting type: DIN-rail, International Protection (IP) code: IP30. Antenna type: External, Antenna connector type: SMA. SIM card type: MiniSIM, WAN connection: Ethernet (RJ-45). Width: 133 mm, Depth: 115.7 mm, Height: 45 mm. Certification: CE
  • Benefits
  • Dual module SIMs for network load balancing and redundancy
  • Wi-Fi compliant IEEE 802.11b/g/n/ac dual-band for mobile client connectivity
  • 5-port Gigabit Ethernet, built-in redundant VRRP protocol
  • 2 DI, 1DO and 1 serial console port (RS232 or RS485) for Modbus applications
  • Multiple VPNs with IPSEC, OpenVPN, PPTP, L2TP, GRE and VPN Failover
  • Full security with VLAN, NAT,DMZ, Static routing, firewall and IP/MAC/port filtering
  • Supports CMS for remote management
  • Supports -35 to 75 degrees C operating temperature and fanless design
  • Physical Port
  • Four 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
  • One 10/100/1000BASE-T RJ45 WAN port, auto-negotiation, auto MDI/MDI-X
  • Two 4G LTE antennas
  • One 2.4G/5G WiFi antenna
  • Two SIM card slots
  • One serial console port (RS232 or RS485)
  • One reset button
  • One MicroSD slot to save files for serial port data
  • Cellular Interface
  • Supports multi-band connectivity with FDD LTE/ TDD LTE/ WCDMA/ GSM/ LTE Cat4
  • Supports failover and load balancing
  • Built-in SIM and broadband backup for network redundancy
  • Two detachable antennas for 4G LTE connection
  • LED indicators for signal strength and connection status
  • Wi-Fi Interface
  • Complies with IEEE 802.11b/g/n/ac 2.4/5GHz
  • Supports AP, Client, Repeater and Repeater Bridge modes
  • One detachable dual band antenna for wireless connection
  • 64/128-bit WEP, WPA/WPA2 with TKIP/AES encryption
  • LED indicator for connection status
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail/desktop design
  • Power requirement: 9~36V DC
  • Supports EFT protection for 1.5KV DC power and 15KV DC Ethernet ESD protection
  • 35 to 75 degrees C operating temperature
  • Digital Input and Digital Output
  • 2 digital input (DI)
  • 1 digital output (DO)
  • 1 relay
  • Advanced Features
  • Supports NAT, demilitarized zone (DMZ), port forwarding and virtual IP mapping
  • Supports VLAN to improve the performance of a network or apply appropriate security features
  • Supports static routing and dynamic routing for gateway and router operating modes
  • Supports QoS to manage WAN bandwidth
  • Supports PPTP, L2TP, OpenVPN, IPSec and GRE VPN modes
  • Supports IPSec (3DES, AES128, AES256, MD5, SHA1, SHA2-256, SHA2-512)
  • Supports TCP, UDP, TCP Server and Modbus TCP
  • Supports Dynamic DNS and PLANET DDNS
  • Provides Firewall and access policy functions
  • Supports WAN connection types: DHCP-4G, DHCP Client, Static IP, PPPoE Client, 3G Link1, 3G Link 2, DHCP-Backup 4G
  • Secures network connection
  • WAN access
  • URL filter
  • Packet filter
  • MAC filter

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET

Specific References

ean13
4711605284684
