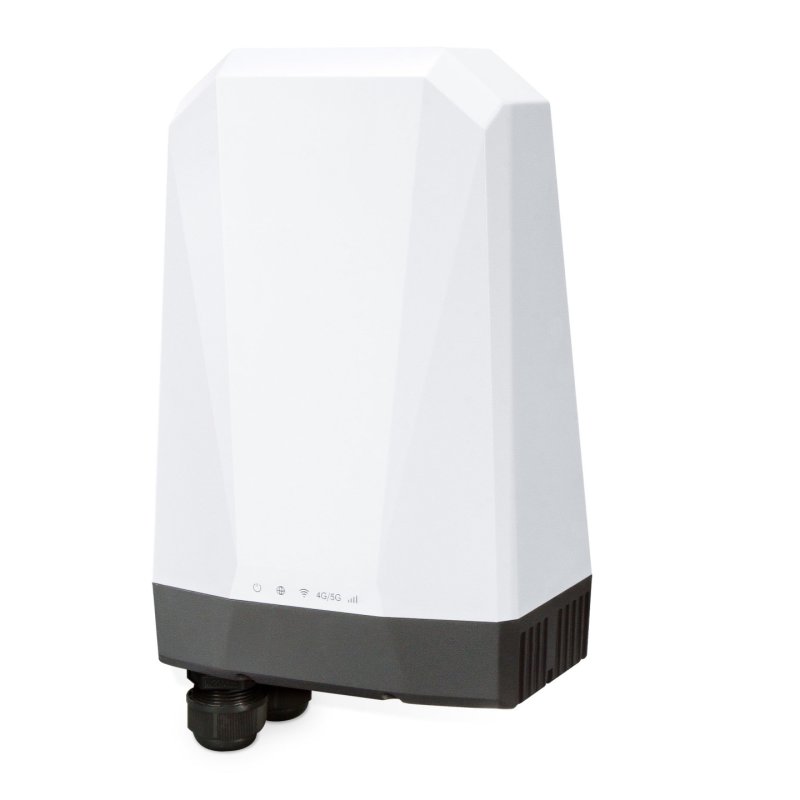

PLANET PLANET IP68-rated Industrial 5G NR Outdoor Unit with 1-port - 1-Port gateway/controller

PLANET IP68-rated Industrial 5G NR Outdoor Unit with 1-port - 1-Port, Grey, White, Wall mounting, IP68, Internal, 3 dBi, NanoSIM
4711605287494
4711605287494
€849.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IP68-rated Industrial 5G NR Outdoor Unit with 1-port - 1-Port. Product colour: Grey, White, Mounting type: Wall mounting, Enclosure International Protection (IP) code: IP68. Antenna type: Internal, Antenna gain level (max): 3 dBi. SIM card type: NanoSIM. Width: 150 mm, Depth: 100 mm, Height: 240 mm. Certification: CE
  • Highlights
  • ．Global 5G NR (NSA/SA)/4G LTE network with dual Nano SIM design for cellular network redundancy
  • ．Complies with IEEE 802.11n and IEEE 802.11b/g/n standards (for configuration)
  • ．One 1000BASE-T Ethernet for LAN interface
  • ．SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • ．Stateful packet inspection (SPI) firewall and content filtering
  • ．Blocks DoS/DDOS attack, port range forwarding
  • ．High Availability, AP Controller, Captive Portal and RADIUS
  • ．Planet NMS controller system and CloudViewer app supported
  • ．-20 to 60 degrees C operating temperature
  • Hardware
  • ．1 x 10/100/1000BASE-T RJ45 LAN port, auto-negotiation, auto MDI/MDI-X
  • ．2 x Nano SIM card slots
  • ．1 x reset button
  • Cellular Interface
  • ．Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA
  • ．LED indicators for connection status
  • RF Interface Characteristics
  • ．Features 2.4GHz (802.11b/g/n) band for configuration
  • ．1T1R MIMO technology for simple wireless connection
  • IP Routing Feature
  • ．Static Route
  • ．Dynamic Route
  • ．OSPF
  • Firewall Security
  • ．Cybersecurity
  • ．Stateful Packet Inspection (SPI) firewall
  • ．Blocks DoS/DDoS attack
  • ．Content Filtering
  • ．MAC Filtering and IP Filtering
  • ．NAT ALGs (Application Layer Gateway)
  • ．Blocks SYN/ICMP Flooding
  • VPN Features
  • ．IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
  • ．Max. Connection Tunnel Entries: 60 VPN tunnels
  • ．Encryption methods: DES, 3DES, AES, AES-128/192/256
  • ．Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512
  • Networking
  • ．Outbound load balancing for Ethernet WANs
  • ．Auto-failover between Ethernet WANs and cellular network
  • ．High Availability
  • ．Captive Portal
  • ．RADIUS Server/Client
  • ．Static IP/PPPoE/DHCP client for WAN
  • ．DHCP server/NTP client for LAN
  • ．Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • ．Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
  • ．MAC address clone
  • ．DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP
  • Others
  • ．Setup wizard
  • ．Dashboard for real-time system overview
  • ．Supported access by HTTP or HTTPS
  • ．Auto reboot
  • ．PLANET NMS System and Smart Discovery Utility for deployment management
  • ．PLANET CloudViewer App for real-time monitoring

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET

Specific References

ean13
4711605287494
