• New

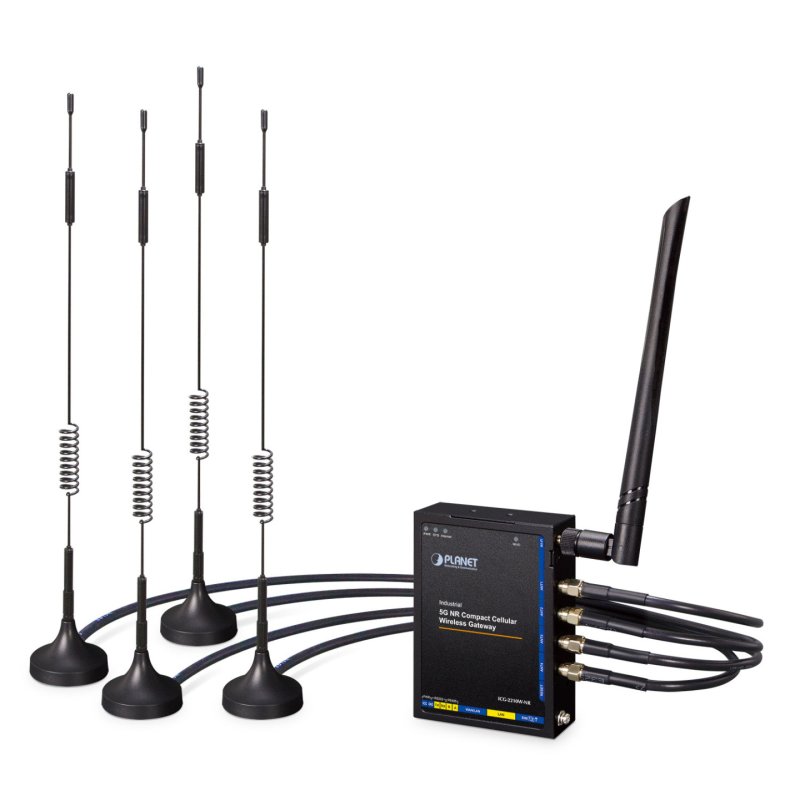

PLANET PLANET Industrial 5G NR Compact Cellular Wireless Gateway - Gateway gateway/controller

PLANET Industrial 5G NR Compact Cellular Wireless Gateway - Gateway, Black, Metal, DIN-rail/Wall mounting, Link, Power, System, IP30, External
4711605287470
4711605287470
€979.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET Industrial 5G NR Compact Cellular Wireless Gateway - Gateway. Product colour: Black, Enclosure material: Metal, Mounting type: DIN-rail/Wall mounting. Antenna type: External, Antenna connector type: SMA, Antenna gain level (max): 5 dBi. SIM card type: MicroSIM. Power consumption (typical): 14.4 W, Heat dissipation: 49.1 BTU/h, DC input voltage: 9 - 36 V. Width: 106 mm, Depth: 76 mm, Height: 23.5 mm
  • Highlights
  • ．5G NR (NSA/SA)/4G LTE network with dual micro SIM design for cellular network redundancy
  • ．Automatic failover between 5G NR and Gigabit WAN
  • ．Complies with IEEE 802.11ac and IEEE 802.11a/b/g/n/ac standards
  • ．1 serial port (RS485) for Modbus applications and 1 serial port (RS232)
  • ．SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
  • ．Stateful packet inspection (SPI) firewall and content filtering
  • ．Blocks DoS/DDOS attack, port range forwarding
  • ．-40 to 75 degrees C operating temperature; DIN-rail and fanless designs
  • Hardware
  • ．1 x 10/100/1000BASE-T RJ45 WAN/LAN port, auto-negotiation, auto MDI/MDI-X
  • ．1 x 10/100/1000BASE-T RJ45 LAN ports, auto-negotiation, auto MDI/MDI-X
  • ．4 x 5G NR antennas
  • ．2 x micro SIM card slots
  • ．1 x 2dB
  • ．1 x reset button
  • Cellular Interface
  • ．Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA
  • ．Built-in SIM and broadband backup for network redundancy
  • ．Four detachable antennas for 5G NR connection
  • ．LED indicators for connection status
  • RF Interface Characteristics
  • ．Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) dual band for carrying high load traffic
  • ．1T1R MIMO technology for enhanced throughput and coverage
  • ．Provides multiple adjustable transmit power control
  • ．High-speed wireless data rate of up to 600Mbps (150Mbps for 2.4GHz or 433Mbps for 5GHz)
  • IP Routing Feature
  • ．Static Route
  • ．Dynamic Route
  • ．OSPF
  • Firewall Security
  • ．Cybersecurity
  • ．Stateful Packet Inspection (SPI) firewall
  • ．Blocks DoS/DDoS attack
  • ．Content Filtering
  • ．MAC Filtering and IP Filtering
  • ．NAT ALGs (Application Layer Gateway)
  • ．Blocks SYN/ICMP Flooding
  • VPN Features
  • ．IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
  • ．Max. Connection Tunnel Entries: 30 VPN tunnels
  • ．Encryption methods: DES, 3DES, AES, AES-128/192/256
  • ．Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512
  • Networking
  • ．Outbound load balancing for Ethernet WANs
  • ．Auto-failover between Ethernet WANs and cellular network
  • ．Static IP/PPPoE/DHCP client for WAN
  • ．DHCP server/NTP client for LAN
  • ．Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
  • ．Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
  • ．MAC address clone
  • ．DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP
  • Others
  • ．Supported access by HTTP or HTTPS
  • ．Auto reboot

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET

Specific References

ean13
4711605287470

Comments

No customer reviews for the moment.
