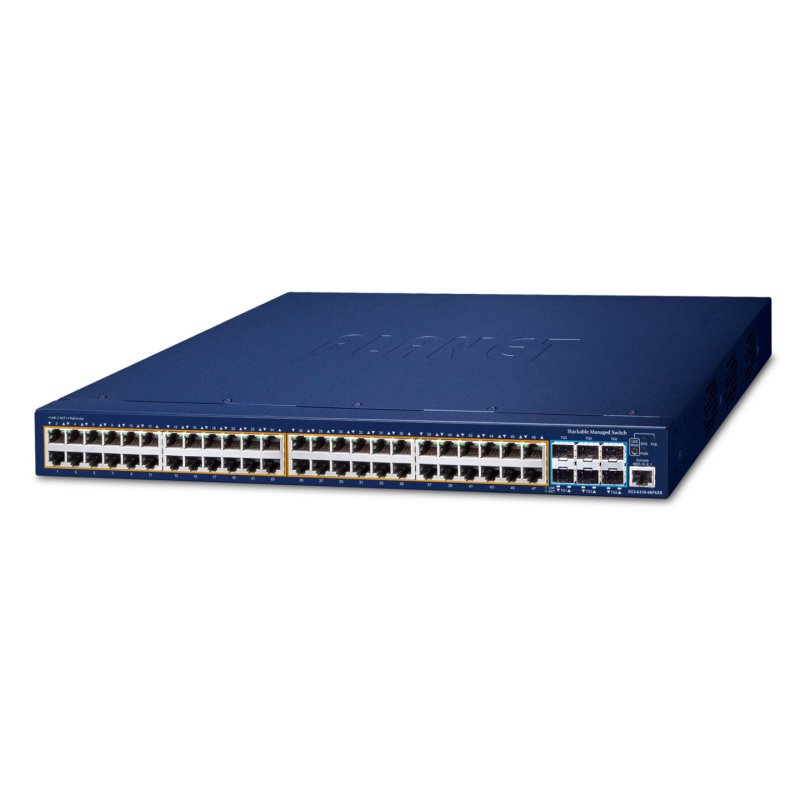

PLANET PLANET SGS-6310-48P6XR network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue
PLANET SGS-6310-48P6XR, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
4711605286688
4711605286688
€1,466.90
VAT included
Description
PLANET SGS-6310-48P6XR. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 6. Full duplex. MAC address table: 16000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 55 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
- Physical Ports
- 48-port 10/100/1000BASE-T Gigabit Ethernet RJ45 with 48-port IEEE 802.3at PoE injector
- 6 10GBASE-SR/LR SFP slots, backward compatible with 1000BASE-SX/LX/BX SFP
- RJ45 to DB9 console interface for switch basic management and setup
- Stacking Features
- Hardware Stacking
- Virtualized multiple SGS-6310 series stacked into one logical facility
- Connects with stack members via assigned 10G SFP interfaces
- Single IP address stack management, supporting up to 8 hardware units stacked together
- Stacking architecture supports redundant Ring mode
- IP Routing Features
- IPv4 routing protocol supports RIPv1/v2 and OSPFv2
- IPv6 routing protocol supports RIPng and OSPFv3
- Routing interface provides per VLAN routing mode
- VRRPv1/v3 protocol for redundant routing deployment
- Supports route redistribution
- Supports hardware-based wire-speed VLAN routing
- Layer 2 Features
- 16K MAC address table, automatic source address learning and aging
- Supports VLAN
- IEEE 802.1Q tag-based VLAN
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- GVRP protocol for dynamic VLAN management
- Private VLAN Edge (PVE) supported
- MAC-based VLAN
- IP subnet-based VLAN
- Voice VLAN
- Supports Link Aggregation
- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
- Static mode and LACP mode
- Maximum 64 trunk groups, up to 8 ports per trunk group
- Supports Spanning Tree Protocol
- STP, IEEE 802.1D (Classic Spanning Tree Protocol)
- RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol)
- MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
- Supports BPDU & root guard
- Port mirroring to monitor the incoming or outgoing traffic on a particular port (one-to-one and many-to-one)
- Provides port mirror (many-to-1)
- Supports G.8032 ERPS (Ethernet Ring Protection Switching)
- Loop protection to avoid broadcast loops
- Link Layer Discovery Protocol (LLDP)
- Compatible with Cisco UDLD (uni-directional link detection) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
- Quality of Service
- 8 priority queues on all switch ports
- Support for strict priority and WRR (Weighted Round Robin) CoS policies
- Traffic classification
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
- Strict priority and WRR CoS policies
- Multicast
- Supports IPv4 IGMP snooping v1, v2 and v3
- Supports IPv6 MLD v1 snooping
- Querier mode support
- Supports Multicast VLAN Register (MVR)
- Security
- Authentication
- IEEE 802.1x port-based network access authentication
- MAC-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
- RADIUS/TACACS login users access authentication
- Access Control List
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Time-based ACL
- DHCP snooping to filter distrusted DHCP messages
- IP Source Guard prevents IP spoofing attacks
- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET
Specific References
- ean13
- 4711605286688
