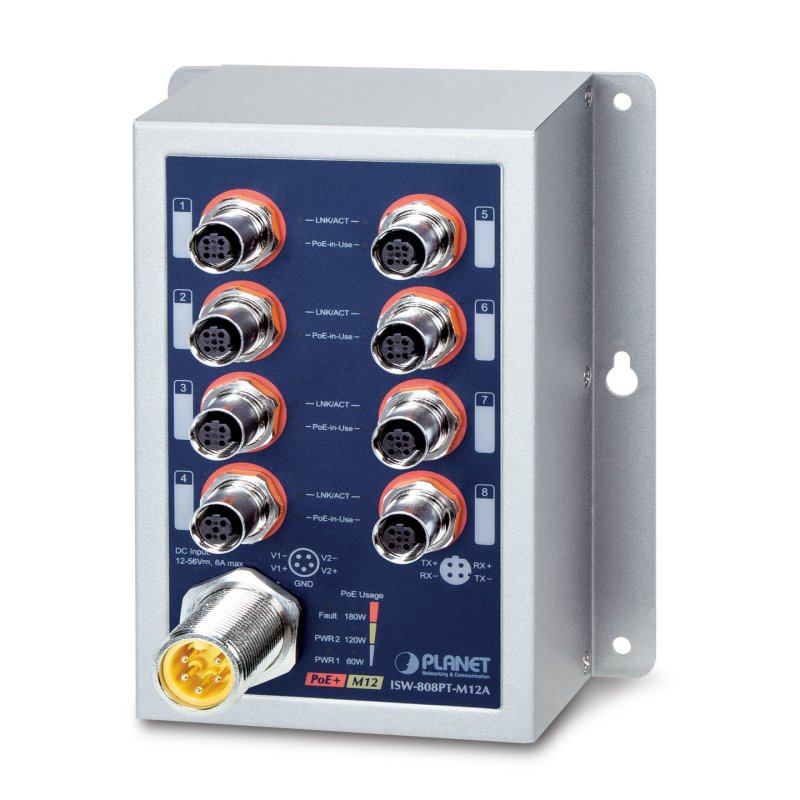

PLANET PLANET IP50 Ind 8-P 10/100TX M12 Unmanaged Power over Ethernet (PoE) Blue, Grey
PLANET IP50 Ind 8-P 10/100TX M12, Unmanaged, Power over Ethernet (PoE), Wall mountable
4711605284936
4711605284936
€819.90
VAT included
Description
PLANET IP50 Ind 8-P 10/100TX M12. Switch type: Unmanaged. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 - 56 V. Power over Ethernet (PoE). Wall mountable
- 8-port 10/100BASE-TX with dustproof M12 connectors and IEEE 802.3at PoE injector function
- Its end-span PSE complies with IEEE 802.3at Power over Ethernet Plus
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- 180-watt PoE budget
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- Supports auto-negotiation and 10/100Mbps half/full duplex mode
- High-performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure(half-duplex) and IEEE 802.3x pause frame flow control(full-duplex)
- Backplane(switching fabric): 1.6Gbps
- Integrated address look-up engine, supporting 2K absolute MAC addresses
- Automatic address learning and address aging
- CSMA/CD Protocol
- IP50 metal case
- Dustproof and fanless designs
- DIN-rail and wall-mount installation
- Redundant power design
- 12 to 56V DC, redundant power with reverse polarity protection
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV surge protection
- 40 to 75 degrees C operating temperature
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET
Specific References
- ean13
- 4711605284936
