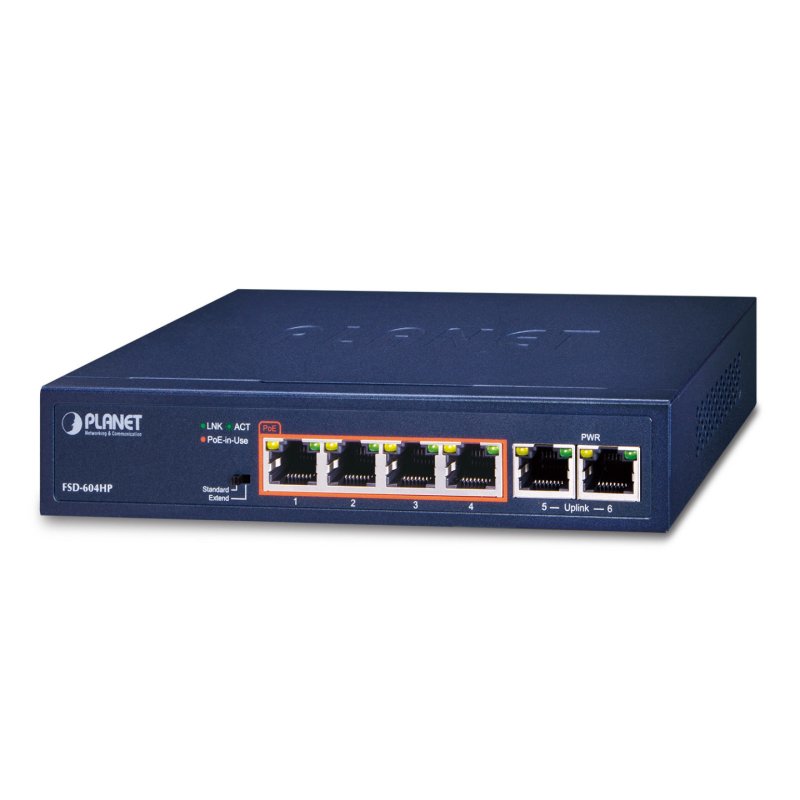

PLANET PLANET FSD-604HP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Blue
PLANET FSD-604HP, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE)
4711605282970
4711605282970
€54.90
VAT included
Description
PLANET FSD-604HP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)
- RJ45 Interface
- 6 10/100Mbps Fast Ethernet ports
- 4 ports supporting 52V DC power to PoE powered device
- Power over Ethernet
- Complies with IEEE 802.3af/at Power over Ethernet end-span
- Up to 4 IEEE 802.3af/2 IEEE 802.3at devices powered
- Supports PoE power up to 30 watts for each PoE port
- 60-watt PoE budget
- Hardware DIP switch for "Standard" and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in the standard mode
- Switching
- Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- 1536bytes packet size
- Integrates address look-up engine, supporting 2K absolute MAC addresses
- Automatic address learning and address aging
- Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
- Hardware
- Desktop palm size
- LED indicators for PoE ready/activity and LINK/ACT
- Supports contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection
- Supports ±4KV surge immunity
- Internal AC power supply
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET
Specific References
- ean13
- 4711605282970
