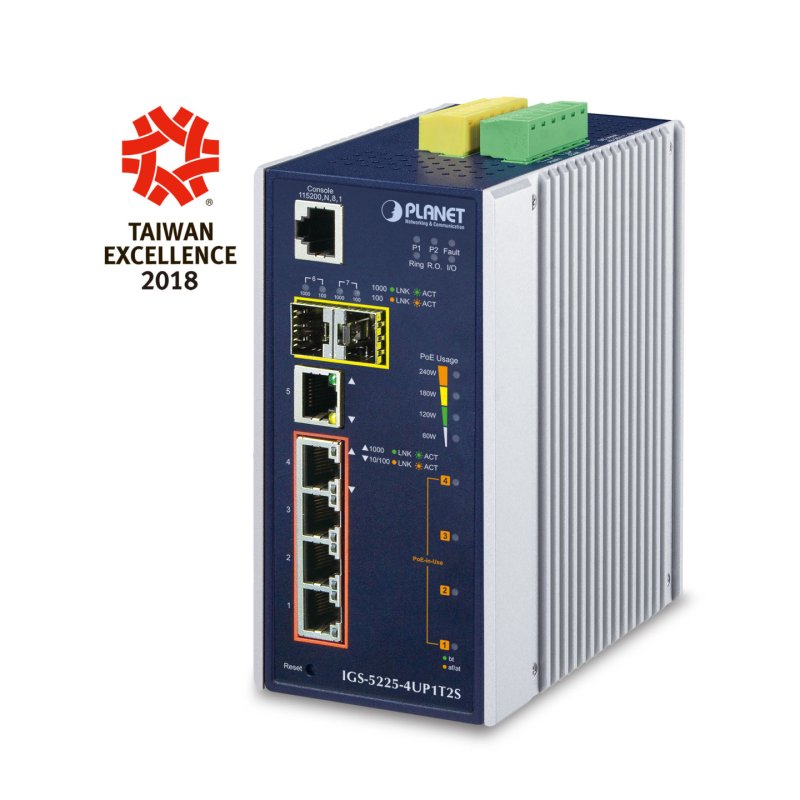

PLANET PLANET IGS-5225-4UP1T2S network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Silver
PLANET IGS-5225-4UP1T2S, Managed, L2 , Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
4711605282444
4711605282444
€649.90
VAT included
Description
PLANET IGS-5225-4UP1T2S. Switch type: Managed, Switch layer: L2 . Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 14 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable
- Physical Port
- 4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3bt PoE Injector function
- 1 10/100/1000BASE-T Gigabit Ethernet RJ45 port
- 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
- One RJ45 console interface for basic management and setup
- 802.3bt Power over Ethernet
- Complies with IEEE 802.3bt Power over Ethernet Plus Plus Type-4 PSE
- Backward compatible with IEEE 802.3at/af PD device
- Up to 4 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt PoE devices powered
- Supports PoE power up to 95 watts for each PoE port
- Total of 240-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- PoE management features
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE admin-mode control
- PoE port power feeding priority
- Per PoE port power limit
- PD classification detection
- Intelligent PoE features
- Temperature threshold control
- PoE usage threshold control
- PD alive check
- PoE schedule
- Industrial Case and Installation
- IP30 aluminum case
- DIN-rail or wall-mount design
- 48~56V DC, redundant power with reverse polarity protection
- Supports 6000V DC Ethernet ESD protection
- Supports -40 to 75 degrees C operating temperature
- Digital Input and Digital Output
- 2 Digital Input (DI)
- 2 Digital Output (DO)
- Integrate sensors into auto alarm system
- Transfer alarm to IP network via email and SNMP trap
- Layer 2 Features
- High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Storm Control support
- Broadcast/Multicast/Unicast
- Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4095 VLAN IDs
- Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN
- Voice VLAN
- GVRP (GARP VLAN Registration Protocol)
- Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- BPDU Guard
- Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 3 trunk groups with 3 ports per trunk group
- Up to 6Gbps bandwidth (duplex mode)
- Provides port mirror (1-to-1)
- Port mirroring to monitor the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops
- Supports G.8032 ERPS (Ethernet Ring Protection Switching)
- Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
- Link Layer Discovery Protocol (LLDP)
- Layer 3 IP Routing Features
- IPv4/IPv6 Layer 3 static routing
- Supports maximum 32 software static routes and route summarization
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET
Specific References
- ean13
- 4711605282444
