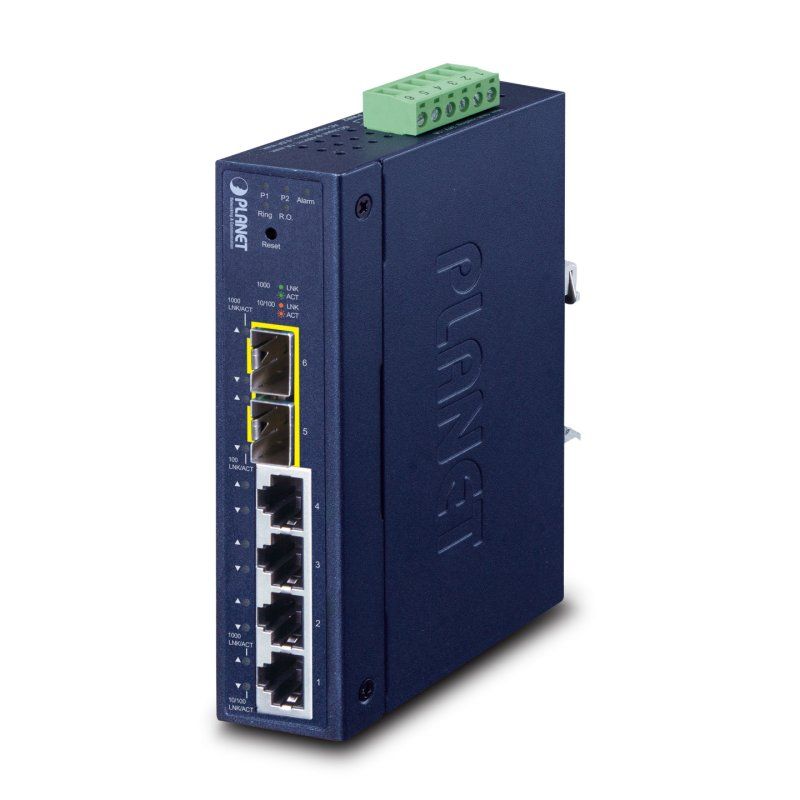

PLANET PLANET Industrial L2/L4 4-Port Managed L2/L4 Gigabit Ethernet (10/100/1000) Blue

PLANET Industrial L2/L4 4-Port, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
4711605286466
4711605286466
€279.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET Industrial L2/L4 4-Port. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Wall mountable
  • Physical Port
  • 4-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
  • 2-port 100/1000BASE-X SFP transceiver type auto detection
  • Industrial Case and Installation
  • Dual power input, redundant power with reverse polarity protection
  • DC 9 to 48V input or AC 24V input
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • Supports ESD 6KV DC Ethernet protection
  • Supports -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries
  • Switching
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 9K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Layer 2 Features
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Up to 256 VLAN groups, out of 4096 VLAN IDs
  • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  • Private VLAN (Protected port)
  • Protocol-based VLAN
  • MAC-based VLAN
  • Voice VLAN
  • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  • BPDU Guard
  • Supports Link Aggregation
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Up to 3 trunk groups
  • Up to 6 ports per trunk group with 12Gbps bandwidth
  • Provides port mirror (many-to-1)
  • IPv6 MAC/VLAN/Multicast Address Table
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Link Layer Discovery Protocol (LLDP)
  • Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Support 8 priority queues on all switch ports
  • Traffic classification
  • IEEE 802.1p CoS
  • IP TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • IP TCP/UDP port number
  • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking
  • Security
  • Storm Control support
  • Broadcast/Multicast/Unicast
  • Authentication
  • IEEE 802.1X port-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • DHCP Relay and DHCP Option 82
  • RADIUS/TACACS users access authentication
  • Access Control List
  • IPv4/IPv6 IP-based ACL
  • IPv4/IPv6 IP-based ACE
  • MAC-based ACL
  • MAC-based ACE
  • MAC Security
  • Static MAC
  • MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET

Specific References

ean13
4711605286466
