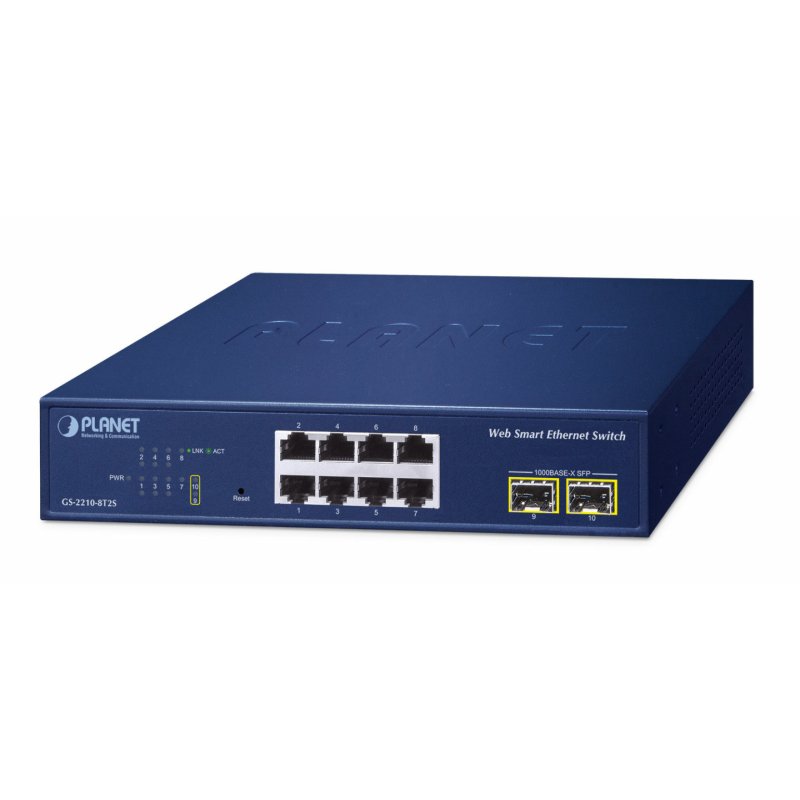

PLANET PLANET 8-Port 10/100/1000T 2-Port Managed L2 Gigabit Ethernet (10/100/1000) Blue

PLANET 8-Port 10/100/1000T 2-Port, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex
4711605287753
4711605287753
€116.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET 8-Port 10/100/1000T 2-Port. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Physical Ports
  • ．8 10/100/1000BASE-T Gigabit RJ45 copper ports
  • ．2 100/1000BASE-X mini-GBIC/SFP slots
  • ．Reset button for system factory default and reboot
  • Layer 2 Features
  • ．Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet standard
  • ．Prevents packet loss flow control
  • ．．IEEE 802.3x pause frame flow control in full-duplex mode
  • ．．Back pressure flow control in half-duplex mode
  • ．High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
  • ．8K MAC address table, automatic source address learning and aging
  • ．Supports VLAN
  • ．．IEEE 802.1Q tag-based VLAN
  • ．Supports Link Aggregation
  • ．．Maximum 8 trunk groups, up to 8 ports per trunk group
  • ．．Cisco ether-channel (static trunk)
  • ．Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to 1)
  • ．Provides port mirror (many-to-1)
  • Quality of Service
  • ．8 priority queues on all switch ports
  • ．Support for strict priority and WRR (Weighted Round Robin) CoS policies
  • ．Traffic classification
  • ．．IEEE 802.1p CoS/ToS
  • ．．IPv4 DSCP
  • ．．Port-based WRR
  • ．Strict priority and WRR CoS policies
  • Multicast
  • ．Supports IPv4 IGMP snooping v1, v2
  • ．IGMP snooping port filtering
  • ．．Flood/Drop
  • ．．DIP Mode
  • Security
  • ．Supports DHCP snooping
  • Management
  • ．Management IP for IPv4
  • ．Switch Management Interface
  • ．．Telnet Command Line Interface
  • ．．Web switch management
  • ．BOOTP and DHCP for IP address assignment
  • ．Cable Diagnostics to detect the cable connection and the approximate location of the cable fault
  • ．Firmware upload/download via TFTP or HTTP Protocol for IPv4
  • ．Supports ping test function for IP address or domain name
  • ．PLANET Smart Discovery Utility for deployment management
  • ．PLANET NMS system and NMSViewerPro for deployment management

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET

Specific References

ean13
4711605287753
