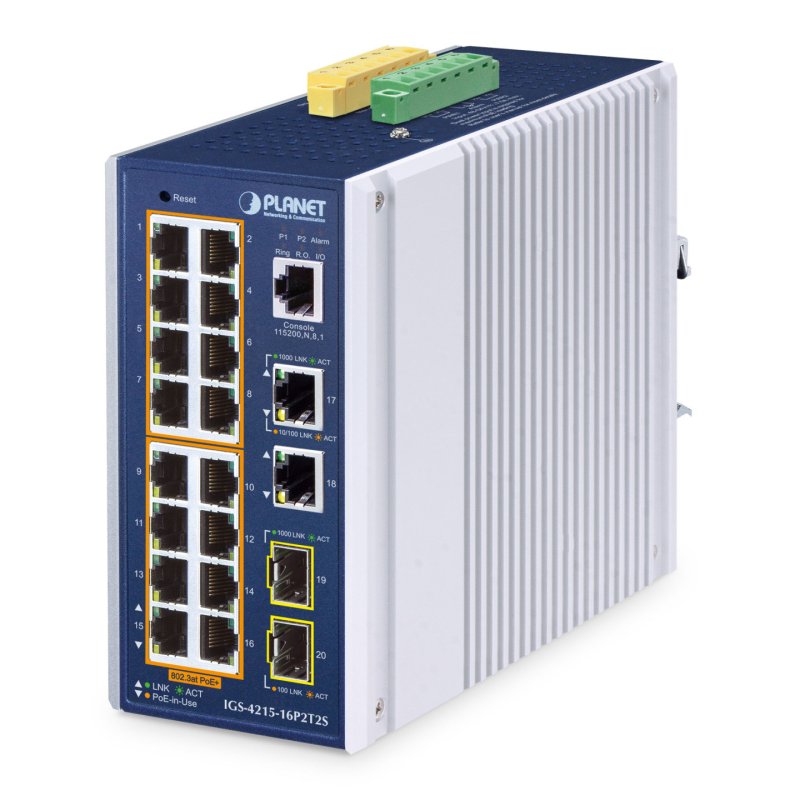

PLANET PLANET IP30 Industrial L2/L4 16-Port Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Aluminium,
PLANET IP30 Industrial L2/L4 16-Port, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
4711605287395
4711605287395
€859.90
VAT included
Description
PLANET IP30 Industrial L2/L4 16-Port. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Wall mountable
- Physical Port
- ．16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at/af PoE Injector function
- ．2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
- ．2 100/1000BASE-X SFP slots for SFP type auto detection
- ．One RJ45 console interface for basic management and setup
- Power over Ethernet
- ．Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- ．Backward compatible with IEEE 802.3af Power over Ethernet
- ．Up to 16 ports of IEEE 802.3af/802.3at devices powered
- ．320-watt PoE budget
- ．Supports PoE power up to 36 watts for each PoE port
- ．Auto detects powered device (PD)
- ．Circuit protection prevents power interference between ports
- ．Remote power feeding up to 100 meters in standard mode and 250m in extend mode
- ．PoE management
- ．Intelligent PoE features
- Industrial Case and Installation
- ．IP30 aluminum case
- ．DIN rail and wall-mount design
- ．48~54V DC, redundant power with reverse polarity protection
- ．Supports 6000V DC Ethernet ESD protection
- ．-40 to 75 degrees C operating temperature
- Digital Input and Digital Output
- ．2 digital input (DI)
- ．2 digital output (DO)
- ．Integrate sensors into auto alarm system
- ．Transfer alarm to IP network via SNMP trap
- Switching
- ．Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- ．IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- ．8K MAC address table size
- ．10K jumbo frame
- ．Automatic address learning and address aging
- Layer 2 Features
- ．Supports VLAN
- ．Supports Spanning Tree Protocol
- ．Supports Link Aggregation
- ．Provides port mirror (many-to-1)
- ．Loop protection to avoid broadcast loops
- ．Supports ERPS (Ethernet Ring Protection Switching)
- ．Link Layer Discovery Protocol (LLDP)
- Quality of Service
- ．Ingress/Egress Rate Limit per port bandwidth control
- ．Traffic classification
- ．．IEEE 802.1p CoS
- ．．TOS/DSCP/IP precedence of IPv4/IPv6 packets
- ．Strict priority and Weighted Round Robin (WRR) CoS policies
- Multicast
- ．Supports IPv4 IGMP snooping v2, v3
- ．Supports IPv6 MLD snooping v1, v2
- ．IGMP querier mode support
- ．IGMP snooping port filtering
- ．MLD snooping port filtering
- Security
- ．Storm Control support
- ．．Broadcast/ unknown multicast/unknown unicast
- ．Authentication
- ．．IEEE 802.1X port-based network access authentication
- ．．Built-in RADIUS client to cooperate with the RADIUS servers
- ．．DHCP Option 82
- ．．RADIUS/TACACS authentication
- ．Access Control List
- ．．IPv4/IPv6 IP-based ACL
- ．．IPv4/IPv6 IP-based ACE
- ．．MAC-based ACL
- ．．MAC-based ACE
- ．MAC Security
- ．．Static MAC
- ．．MAC filtering
- ．Port security for source MAC address entries filtering
- ．DHCP snooping to filter distrusted DHCP messages
- ．Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
- ．IP source guard prevents IP spoofing attacks
- ．DoS attack prevention
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET
Specific References
- ean13
- 4711605287395
