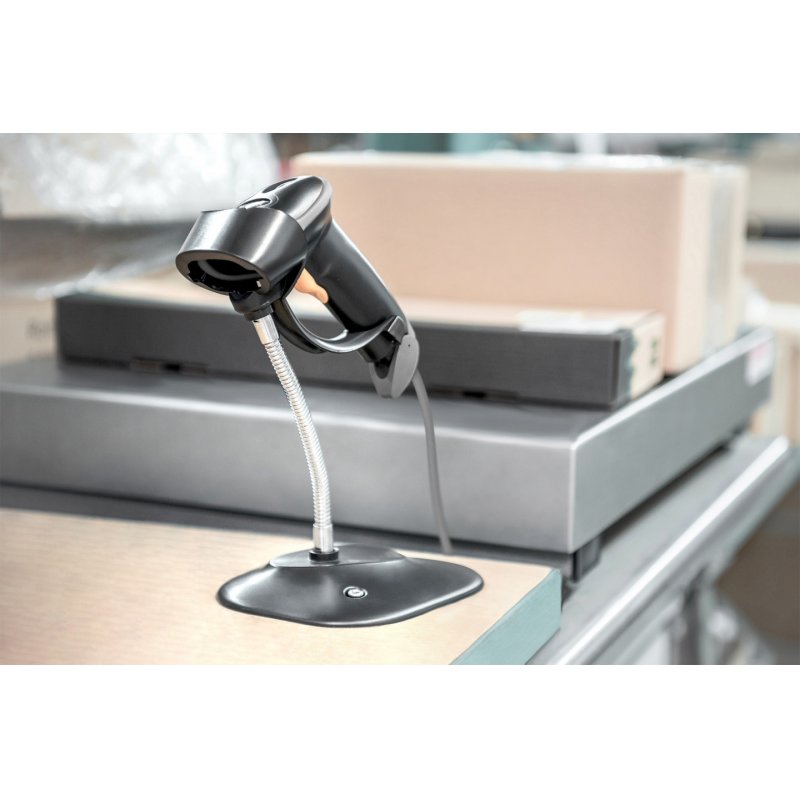

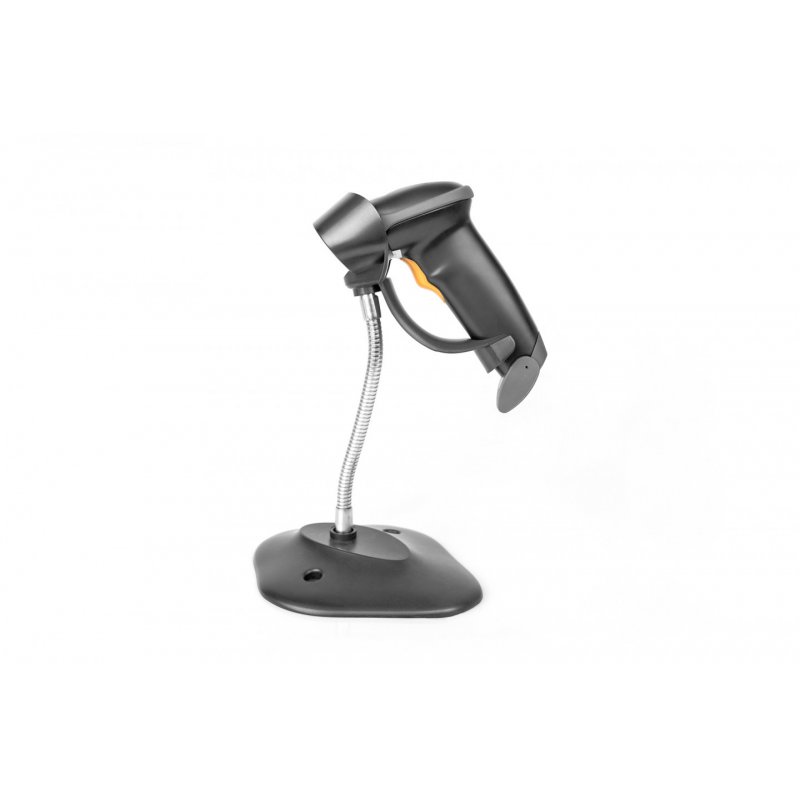

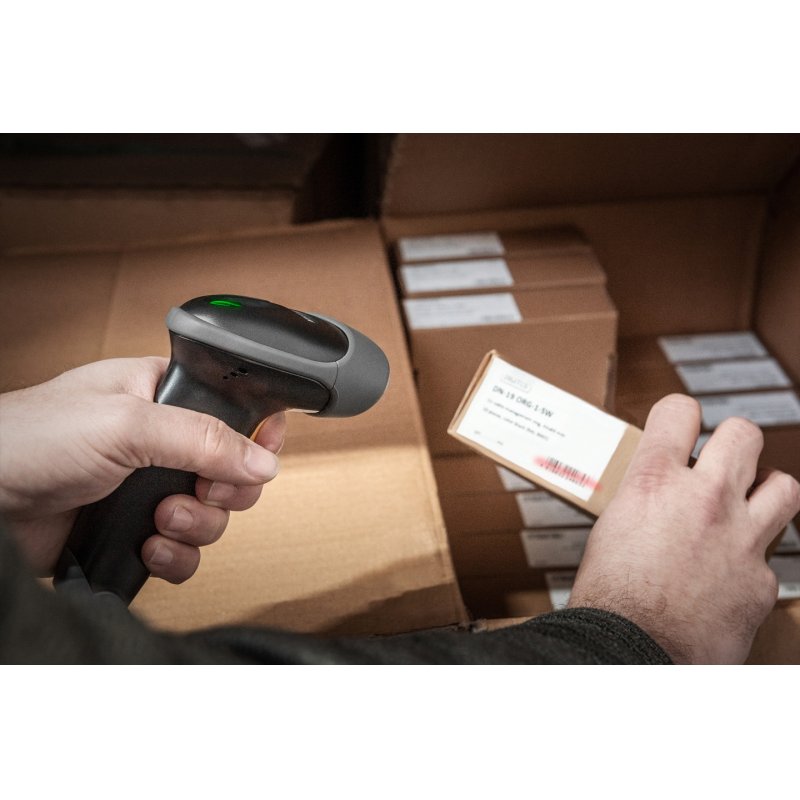

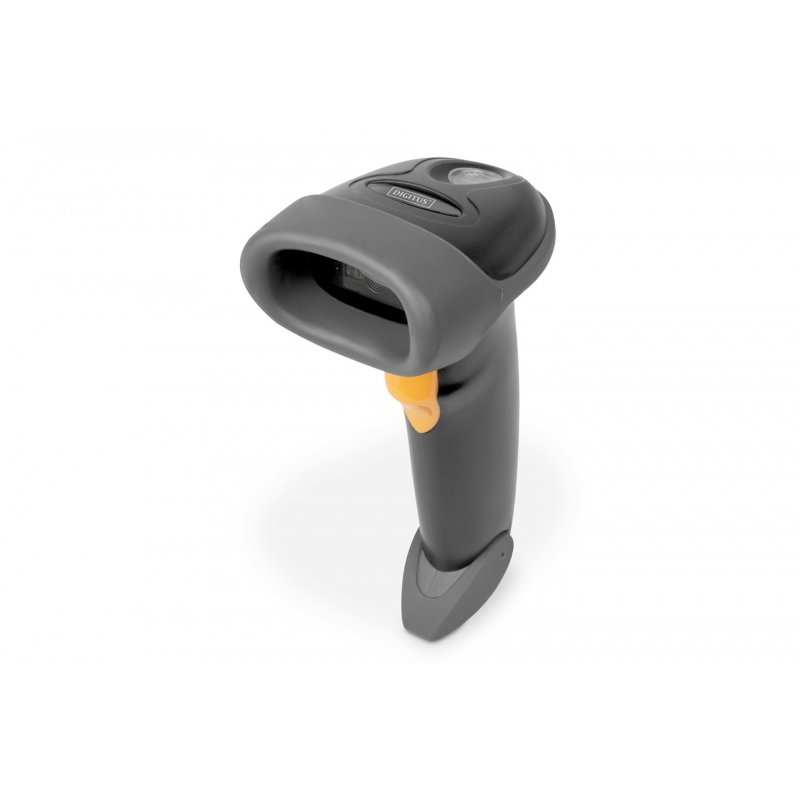

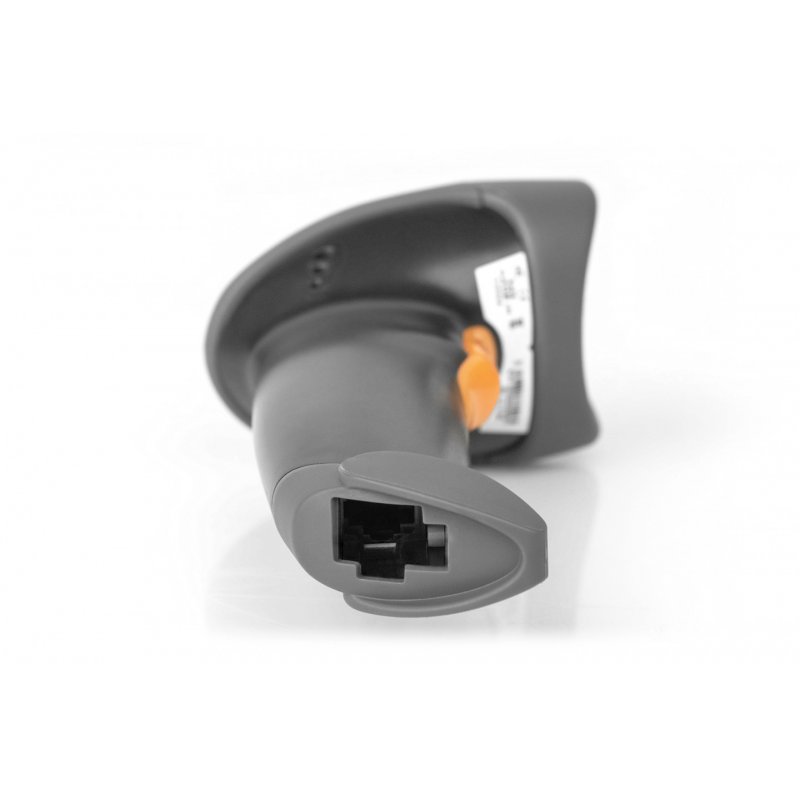

ASSMANN Digitus 2D Barcode Hand Scanner, QR-Code Compatible
Digitus 2D Barcode Hand Scanner, QR-Code Compatible, Handheld bar code reader, 1D/2D, CMOS, Codabar, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1-128..., Data Matrix, PDF417, QR Code, 200 reads/s
DA-81002
4016032473640
€49.90
VAT included
Description
Digitus 2D Barcode Hand Scanner, QR-Code Compatible. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wired, Standard interfaces: RJ-45, USB, Cable length: 2 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), International Protection (IP) code: IP54. Power source type: USB, Input voltage: 5 V, Power consumption: 120 mA. Weight: 120 g, Width: 63 mm, Depth: 87 mm
- 2D & 1D Scan – Barcodes & QR codes on paper or displays
- Power consumption: 3.3 - 5 V DC, 120 mA
- Power supply: USB
- Scan type: Image capture
- Sensor: CMOS
- CPU: ARM 32-Bit Cortex
- Interface: USB
- Light source: LED (CMOS)
- Trigger: Pushbutton, automatic
- Number of scans: 200 per second
- Error rate in bits: 1/5 million, 1/20 million
- Resolution: 1D: ≥5mil, 2D:≥ 10mil
- Scan width: 10 cm
- Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
- Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
- Anti-interference: External light sources have no influence on the scan
- 1D decoding: GS1 Data Bar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6,
- 2D decoding: PDF417, QR code, Datamatrix.
- Compatible with Windows / Vista / Android / iOS / Mac / Linux systems
- Includes scanner holder
- Material: ABS + PC
- Protection type: IP54
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Cable: 2 m (USB - RJ45)
- Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
- Weight: 120 g
- Color: Black
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DA-81002
- Weight
- 1
Specific References
- ean13
- 4016032473640
