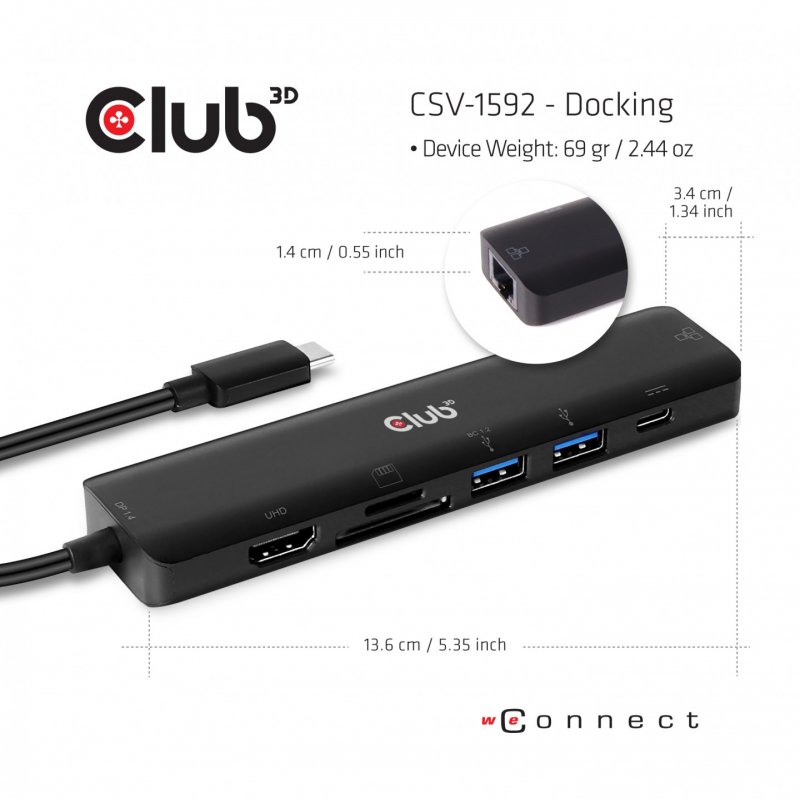

Club 3D CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3

CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3, Docking, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 10,100,1000 Mbit/s, Black, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC
CSV-1592
8719214471477
€94.90
VAT included

Visa
Mastercard
PayPal

Description

CLUB3D USB type C 7in1 Hub HDMI 4K60Hz SD TF Card slot 2x USB Type A USB Type C PD RJ45 Works with Thunderbolt 3. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C. Sustainability certificates: RoHS
  • USB Type C Male (Connection to host)
  • Support DP 1.4 Alt mode, with bandwidth max 2 lanes 16.2Gbps
  • (8.1Gbps per lane),downward compatible with DP1.2 Alt mode
  • Note: To get max bandwidth, the host should support DP 1.4 Alt mode with DSC format
  • Support HDMI™ max 4K/60Hz 4:4:4, 8bit with 18Gbps Bandwidth
  • Support 6/8/10/12 bit color depth output
  • Support output pixel format RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2
  • Support HDCP 2.2&HDCP1.4
  • Support HDR
  • Note: When connecting a DP 1.4 Alt mode supported host, the max resolution of HDMI is 4k/60Hz; When connecting a DP 1.2 Alt mode supported host, the max resolution of HDMI™ is 4k/30Hz due to bandwidth limitation
  • 2x USB Type A 3.0
  • 1- USB Type A port supports BC 1.2 with max. 7.5W(5V@1.5A) downstream charging
  • 2- USB Type A share max. 8W (5V/1.6A) downstream charging
  • Max 5Gbps bandwidth per USB Type A port
  • SD/Micro SD
  • Support Secure Digital v3.0 UHS-I (Ultra High Speed)SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s)
  • RJ45 (Gigabit Ethernet) Support 10Mbps/100Mbps/1000Mbps
  • USB Type C Female (for PD Charging)
  • Support PD Charging 100W (20V/5A)
  • Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging in and out PD Adapter
  • 8W is dedicated to the functioning of this product, the rest power (max 92W) will be passed to charge for the host
  • Available Interfaces:
  • Upstream :
  • 1x USB Type C Male (Host connection)
  • Downstream :
  • 1x HDMI™ Female for connecting to Monitor
  • 1x SD Card Slot
  • 1x Micro SD Card Slot
  • 2x USB type A, BC1.2 charging
  • 1x USB Type-C female PD (Charging + Data)
  • 1x RJ45

Data sheet

Colour
Black
Garantie
2 ans
Marque
Club3D
Modèle
CSV-1592
Weight

Specific References

ean13
8719214471477
