Noctua Noctua NF-A12X15 PWM CH.BK.S computer cooling system Computer case Fan 12 cm Black

Noctua NF-A12X15 PWM CH.BK.S, Fan, 12 cm, 450 RPM, 1850 RPM, 23.9 dB, 94.2 m³/h
NF-A12x15PWMCHBK
9010018100464
€29.90
VAT included

Visa
Mastercard
PayPal

Description

Noctua NF-A12X15 PWM CH.BK.S. Type: Fan, Fan diameter: 12 cm, Number of speeds: 2, Rotational speed (min): 450 RPM, Rotational speed (max): 1850 RPM, Noise level (high speed): 23.9 dB, Airflow: 94.2 m³/h, Maximum air pressure: 1.53 mmH2O, Bearing type: Self-Stabilising Oil-pressure Bearing (SSO). Width: 120 mm, Depth: 120 mm, Height: 15 mm. Product colour: Black
  • Award-winning NF-A12x15 design: Having received dozens of recommendations from the international press, Noctua’s NF-A12x15 has become a proven premium choice for slim 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world

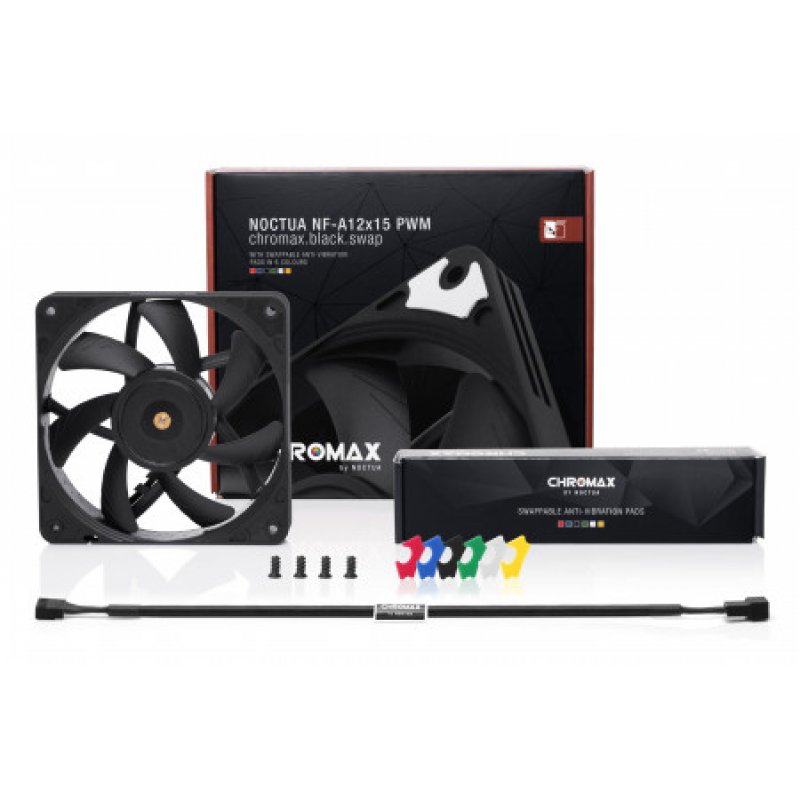

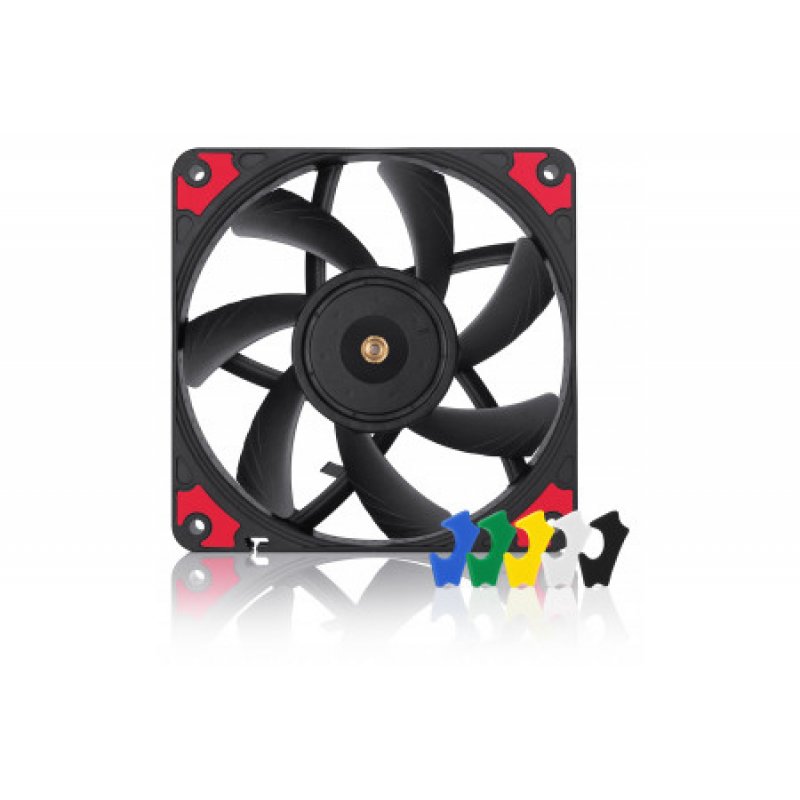

  • Self-adhesive anti-vibration pads in 6 colours: The NF-A12x15 PWM chromax.black.swap comes with 8 swappable, self-adhesive anti-vibration pads in black, white, red, blue, green and yellow respectively, which allow the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes
  • Optional coloured cables: Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately
  • Flow Acceleration Channels: The NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise

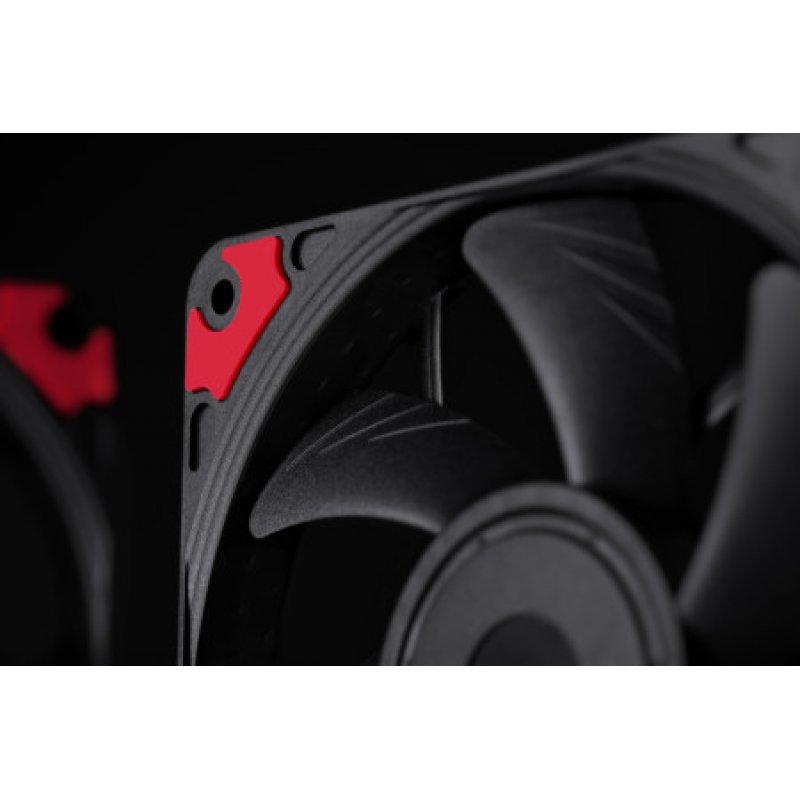

  • AAO frame: Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency
  • Stepped Inlet Design: Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments
  • Inner Surface Microstructures: With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency
  • SSO2 bearing: The NF-A12x15 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability
  • Custom-designed PWM IC with SCD: Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds
  • Stops at 0% PWM: When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow

Data sheet

Colour
Black
Garantie
2 ans
Marque
Noctua
Weight

Specific References

ean13
9010018100464

Comments

No customer reviews for the moment.
