Noctua Noctua NF-A20 PWM CH.BK.S computer cooling system Computer case Fan 20 cm Black

Noctua NF-A20 PWM CH.BK.S, Fan, 20 cm, 350 RPM, 800 RPM, 18.9 dB, 146.9 m³/h
NF-A20PWMchromaxblackswap
9010018100457
€44.90
VAT included

Visa
Mastercard
PayPal

Description

Noctua NF-A20 PWM CH.BK.S. Type: Fan, Fan diameter: 20 cm, Number of speeds: 2, Rotational speed (min): 350 RPM, Rotational speed (max): 800 RPM, Noise level (high speed): 18.9 dB, Airflow: 146.9 m³/h, Maximum air pressure: 1.08 mmH2O, Bearing type: Self-Stabilising Oil-pressure Bearing (SSO). Width: 200 mm, Depth: 200 mm, Height: 30 mm. Product colour: Black
  • Award-winning NF-A20 design: Having received dozens of recommendations from the international press, Noctua’s NF-A20 has become a proven premium choice for 200mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world

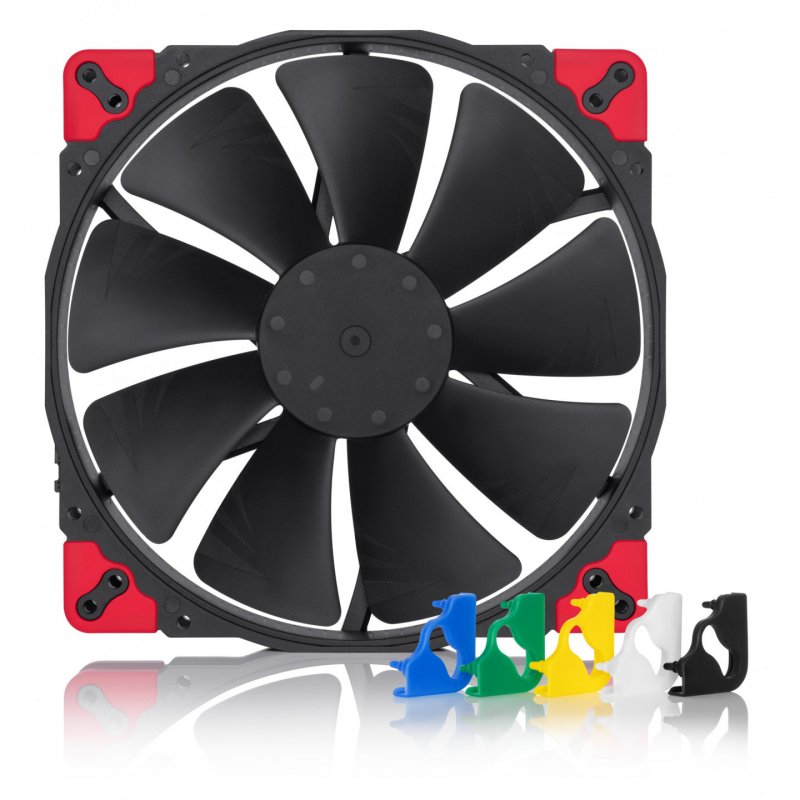

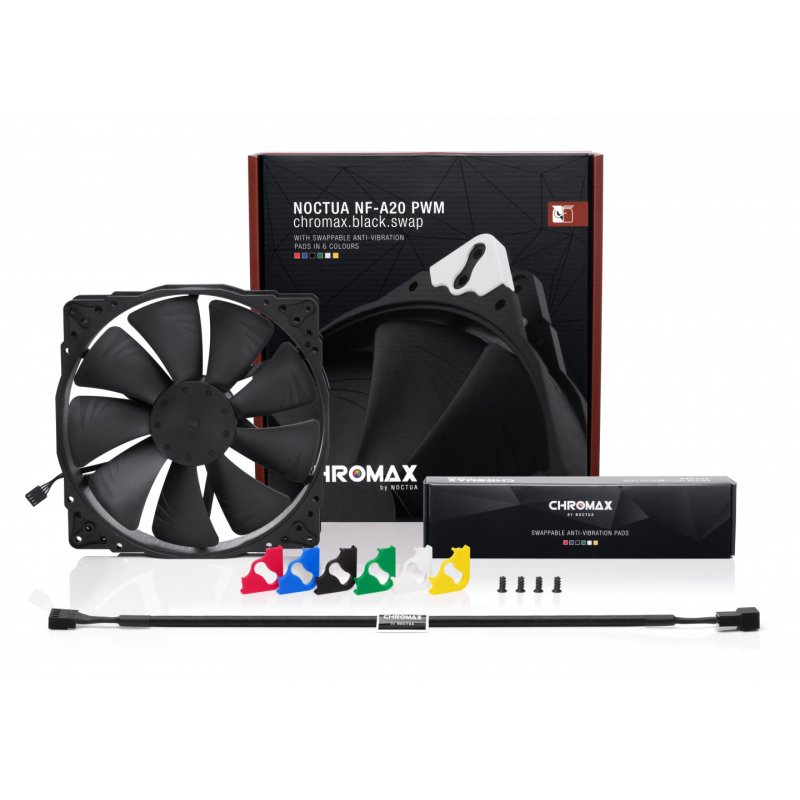

  • Optional coloured cables: Noctua’s chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately
  • Optional coloured anti-vibration mounts: To complement the coloured anti-vibration pads included with the fans, users can purchase chromax line NA-SAV2 anti-vibration mounts that enable the convenient, quick and vibration-free installation of fans in standard mounting holes for case fans
  • Flow Acceleration Channels: The NF-A20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise
  • AAO frame: Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency
  • Stepped Inlet Design: Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments
  • Inner Surface Microstructures: With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency
  • SSO2 bearing: The NF-A20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability
  • Metal bearing shell: In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the chromax edition fans sport a CNC milled bearing shell made entirely from brass

Data sheet

Colour
Black
Garantie
2 ans
Marque
Noctua
Weight

Specific References

ean13
9010018100457
