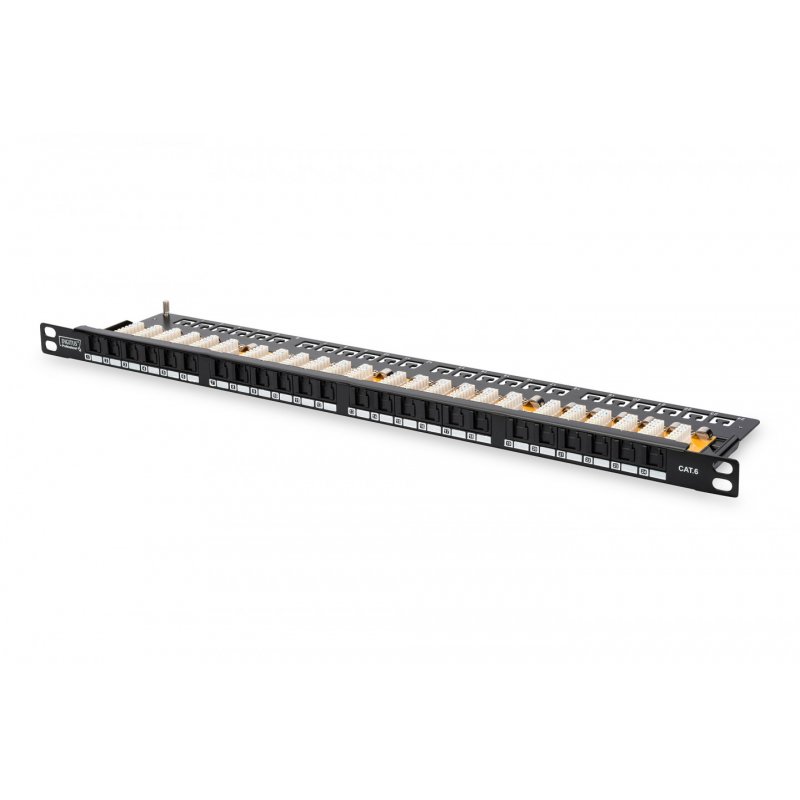

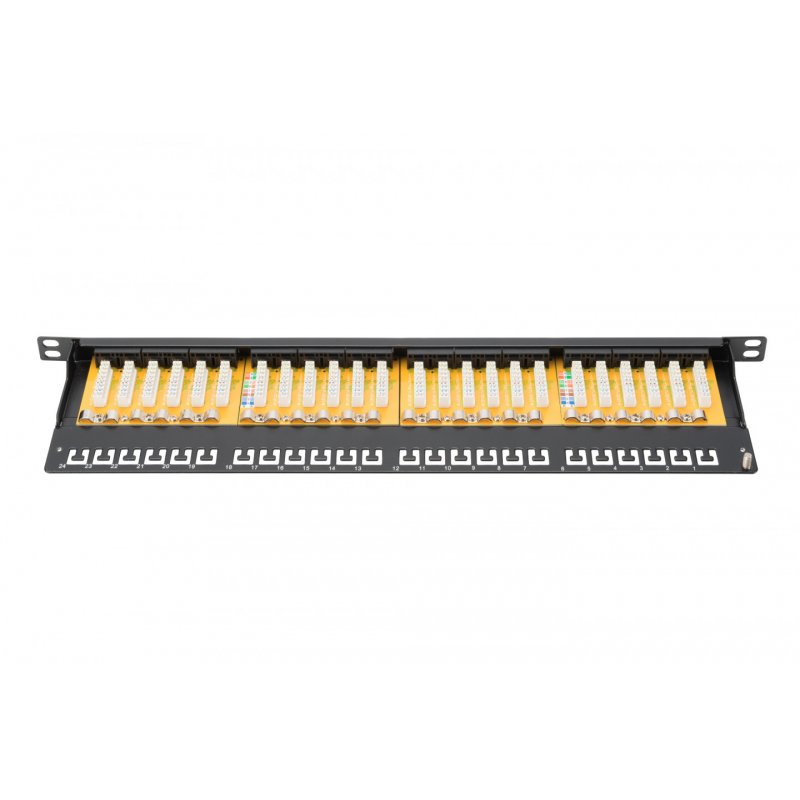

Digitus Digitus CAT 6, Class E High Density Patch Panel, unshielded

Digitus CAT 6, Class E High Density Patch Panel, unshielded, RJ-45, Black, Metal, Rack mounting, 0.5U, 8P8C
DN-91624U-SL-SH
4016032323280
€54.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus CAT 6, Class E High Density Patch Panel, unshielded. Connector(s): RJ-45. Product colour: Black, Material: Metal, Mounting: Rack mounting. Width: 483 mm. Package width: 530 mm, Package depth: 40 mm, Package weight: 964 g. Country of origin: China
  • Transmission properties: Category 6
  • Area of application: Up to 250 MHz, 1GBase-T
  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for 483 mm (19") cabinet mounting
  • RJ45 female, 8P8C
  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
  • Cable fixing with smart cable ties
  • Integrated dust cover
  • Mechanical properties:
  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
  • Ground wire: Not included
  • Conductor plate: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • Color: Black (RAL 9005)

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus
Weight

Specific References

ean13
4016032323280
