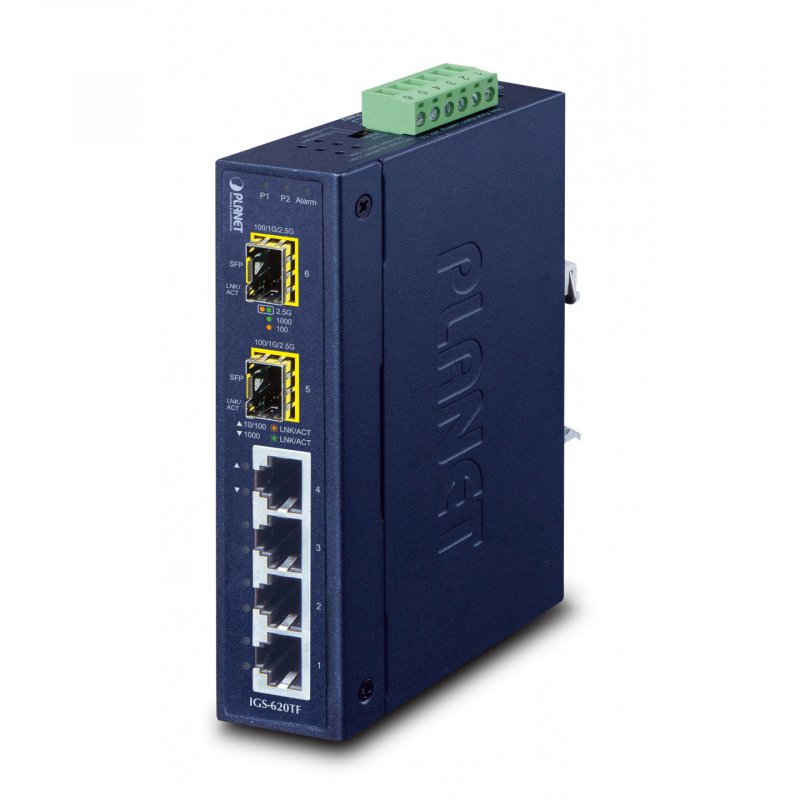

ASSMANN PLANET IGS-620TF network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue
PLANET IGS-620TF, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
IGS-620TF
4711213689536
€232.90
VAT included
Description
PLANET IGS-620TF. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 4000 entries, Switching capacity: 18 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 12 - 48 V. Wall mountable
- Physical Port
- Four 10/100/1000BASE-T RJ45 ports with auto MDI / MDI-X function
- Two SFP interfaces, supporting 100/1000/2500BASE-X transceiver type auto detection
- Fiber Port Redundancy
- Automatically detects link status and redundancy on dual ports with the same connector type
- Only primary port is active at a time, while the backup port is blocked
- When primary port link failure occurs, the traffic will swap to backup port automatically
- Once the primary-port status is back to link up, the traffic will swap from backup port to primary port
- Layer 2 Features
- Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 9K Jumbo Frame size support
- Backplane (Switching Fabric): 18Gbps
- Integrated address look-up engine, supporting 4K absolute MAC addresses
- Automatic address learning and address aging
- IEEE 802.1Q VLAN transparency
- CSMA/CD Protocol
- Industrial Case and Installation
- Slim IP30 metal case protection
- DIN-rail, wall-mount or side wall-mount design for redundant power design
- 12 to 48V DC, redundant power with reverse polarity protection
- AC 24V power adapter acceptable
- Supports 6000 VDC Ethernet ESD protection
- Minus 40 to 75 degrees C operating temperature
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- IGS-620TF
- Weight
- 1
Specific References
- ean13
- 4711213689536
