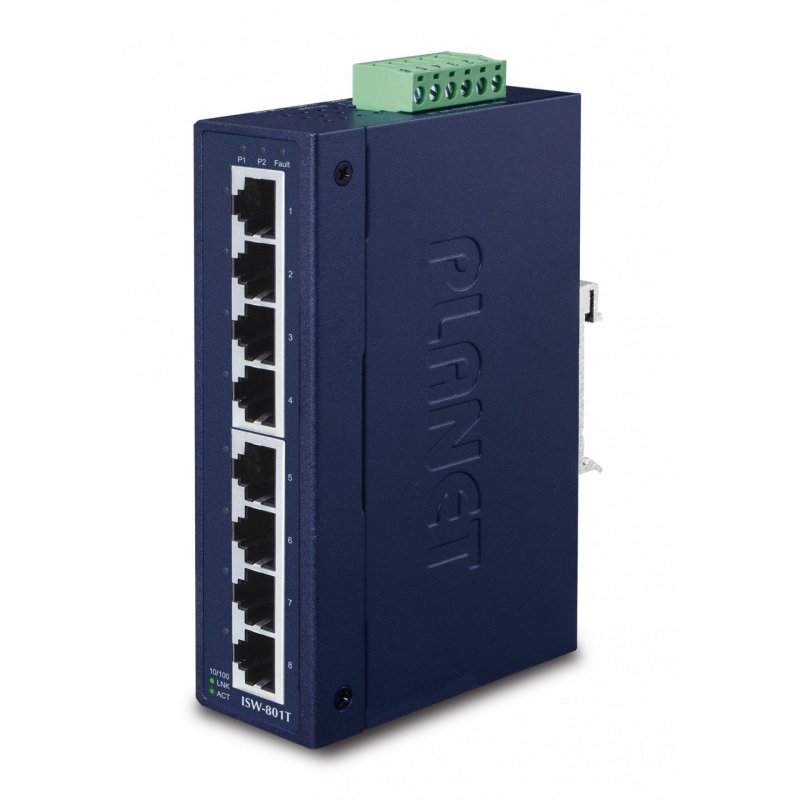

ASSMANN PLANET ISW-801T network switch Unmanaged L2 Fast Ethernet (10/100) Blue
PLANET ISW-801T, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Wall mountable
ISW-801T
4711213687228
€113.90
VAT included
Description
PLANET ISW-801T. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1024 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Wall mountable
- Physical Port
- 8-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
- Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex mode
- High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Backplane (switching fabric): 1.6Gbps
- Integrated address look-up engine, supporting 1K absolute MAC addresses
- Automatic address learning and address aging
- Industrial Case & Installation
- IP30-rated metal case
- DIN rail and wall-mount design
- 12 to 48V DC, redundant power with polarity reverse protection function and connective removable terminal block for master and slave power, 24V AC power support
- Lower Power Consumption device in full load operation mode
- Supports EFT protection for 6000 VDC for power line
- Supports 6000 VDC Ethernet ESD protection
- 40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- ISW-801T
- Weight
- 1
Specific References
- ean13
- 4711213687228
